KAIWEETS KIT01 Electrical Test Kit
3-7 Business Days to America and Europe.
15-30 Business Days to Other Areas.
30-Day No-Hassle Returns & 3-Year Warranty
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.

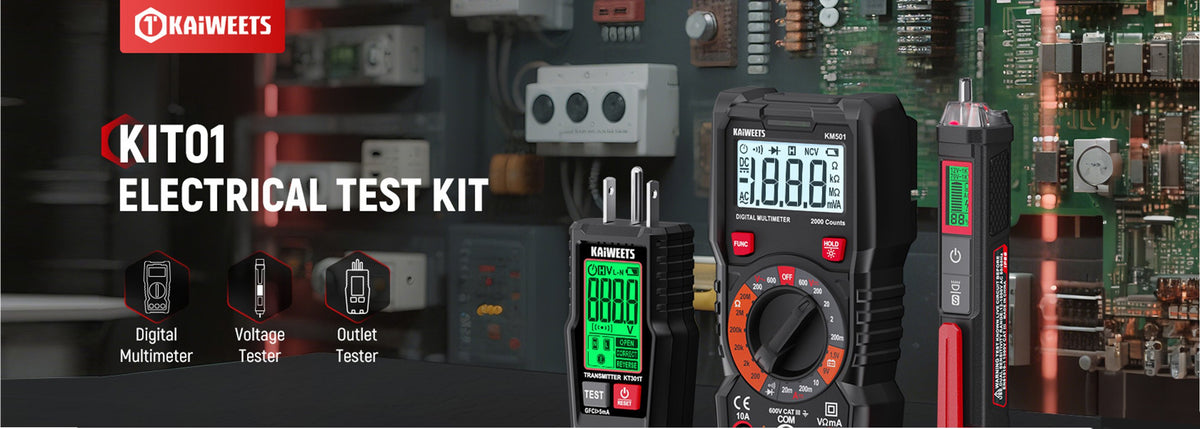

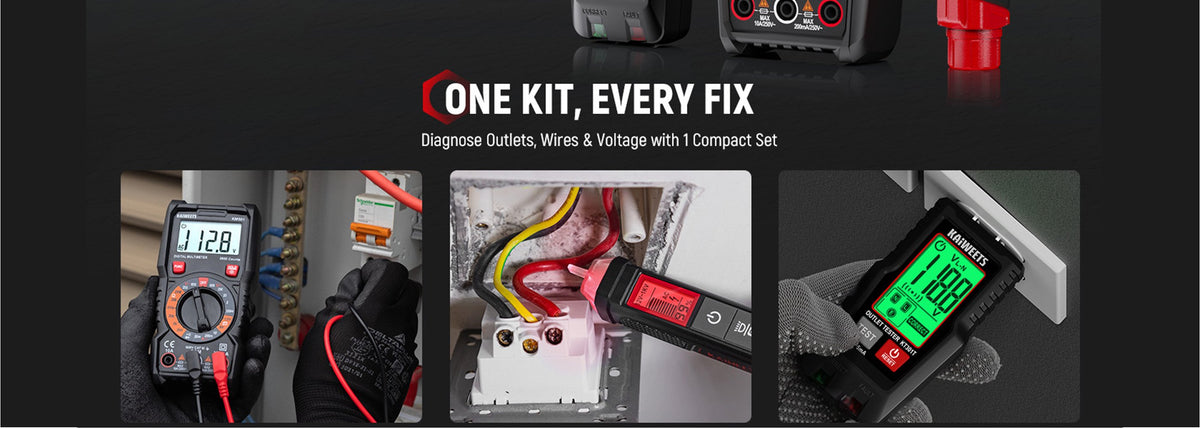

1 Kit, 3 Essential Tools – Unzip it to reveal your complete diagnostic setup: a digital multimeter, non-contact voltage pen, and GFCI outlet tester. No more wasted trips to the truck or fumbling for separate meters. Built for electricians, HVAC pros, and dedicated DIYers who value efficiency and need to get the job done right—without the downtime.

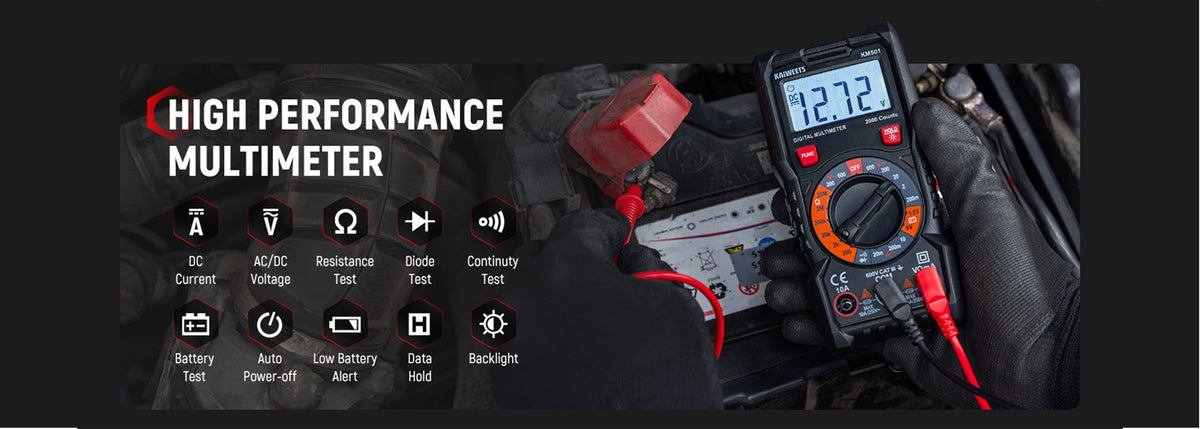

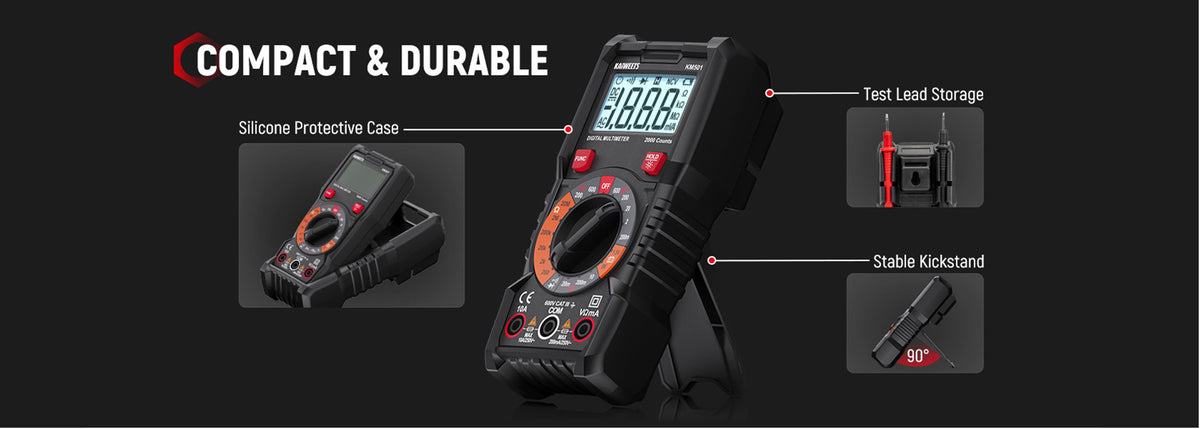

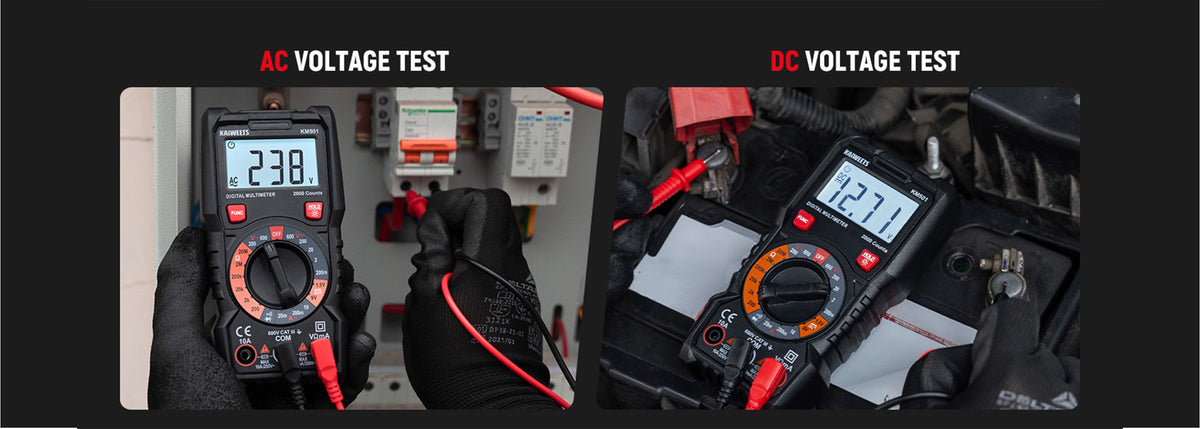

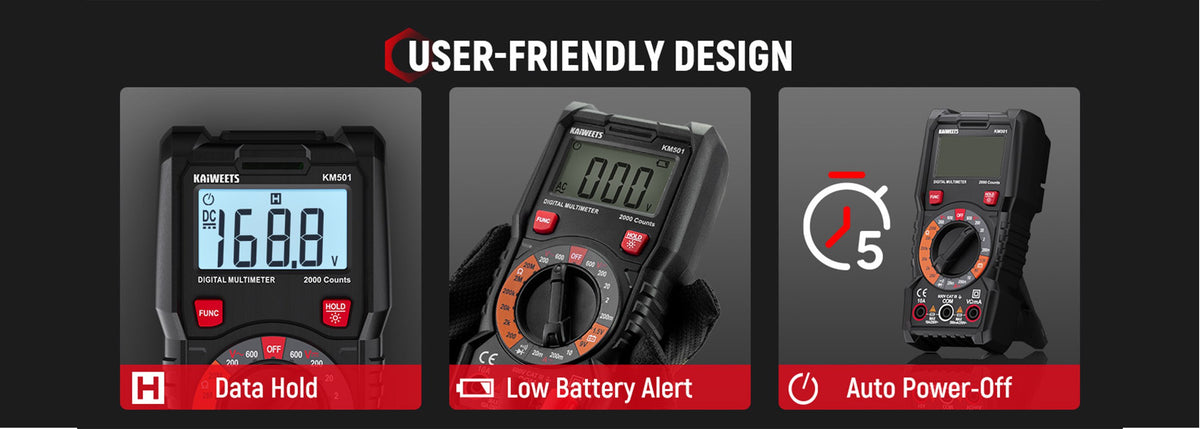

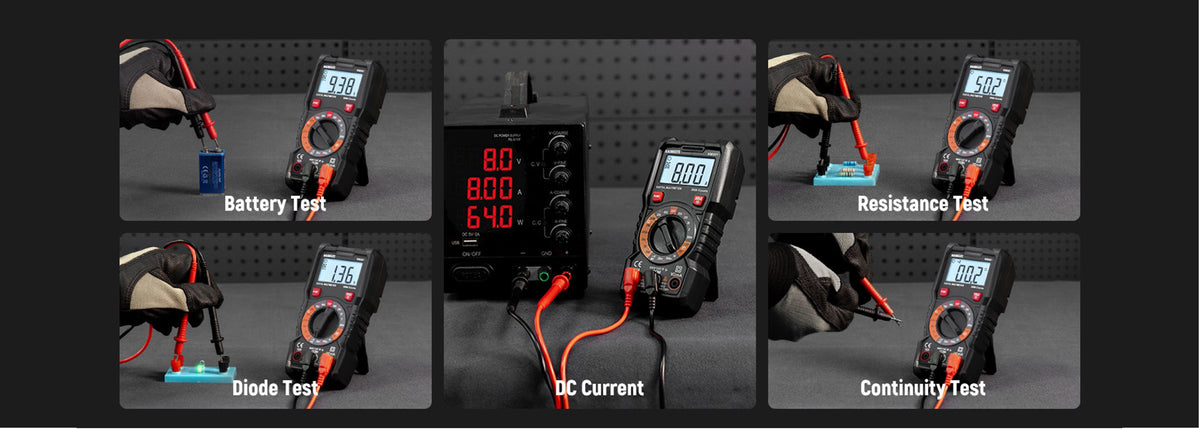

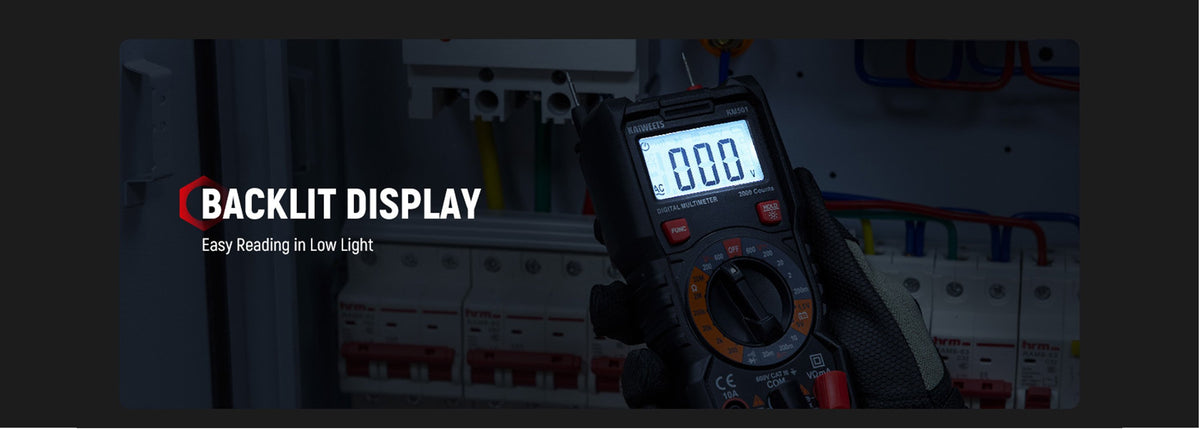

Versatile Digital Multimeter: Measures AC/DC Voltage (600V), DC Current (10A), Resistance (20MΩ), Continuity, Diode & Batteries (1.5V/9V). Backlit LCD, Data Hold, auto-off & CAT III 600V safety.

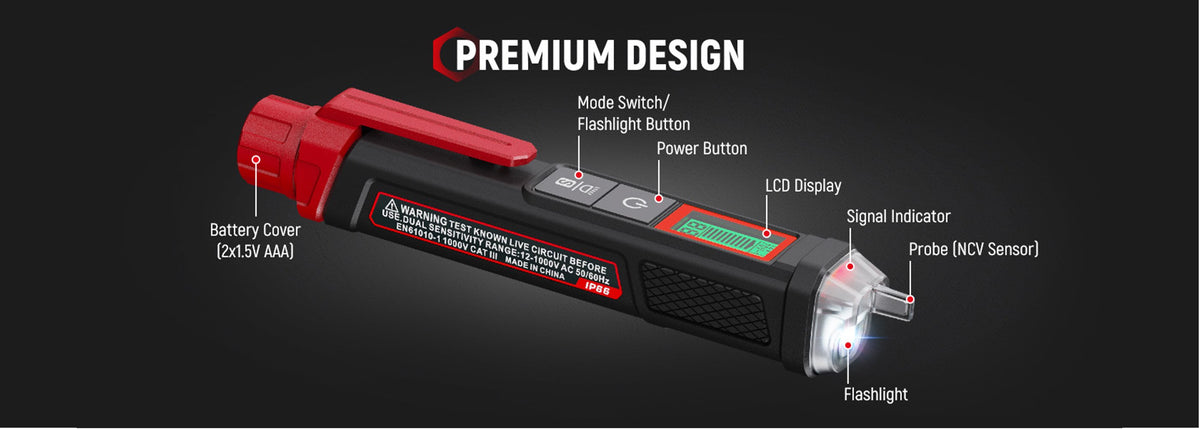

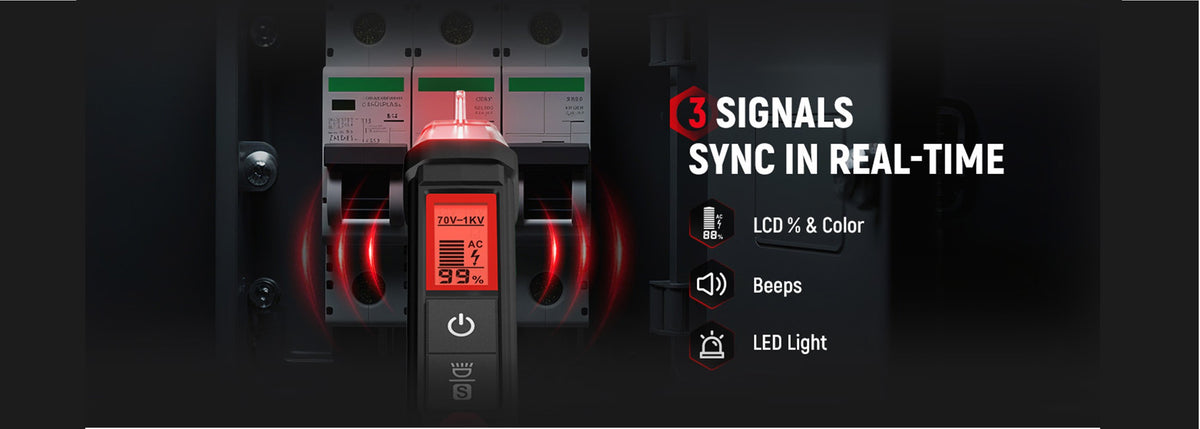

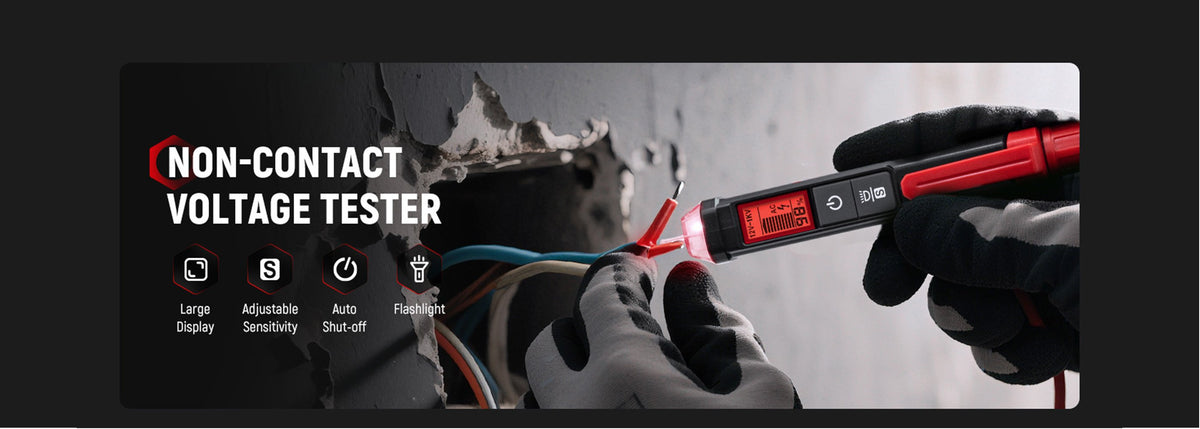

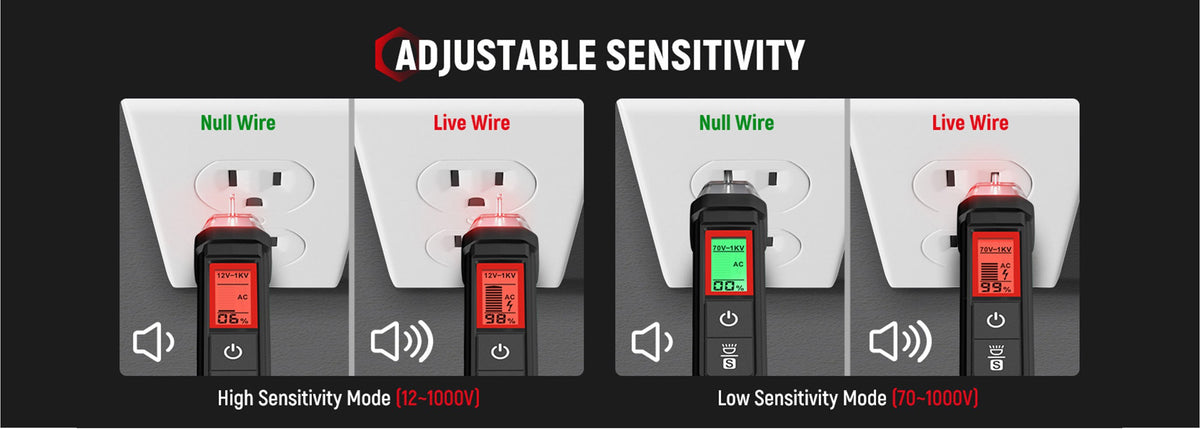

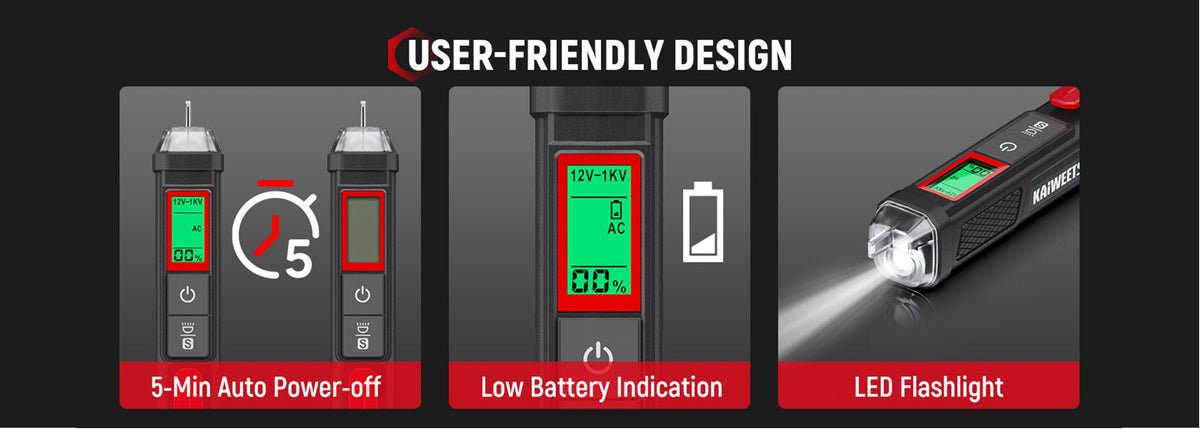

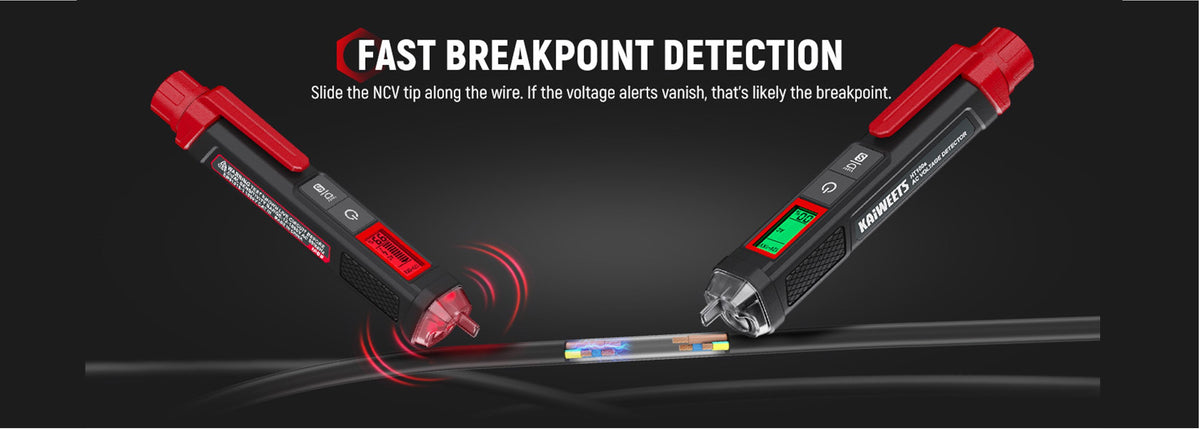

Smart Non-Contact Voltage Detector: No guess work! LCD gives live % and color read-outs, plus beeps and flashing LEDs when voltage is detected. Dual-range 12–1000 V AC / 70–1000 V AC. Built-in flashlight, auto-off. Highest Safety: CAT IV 600V/CAT III 1000V.

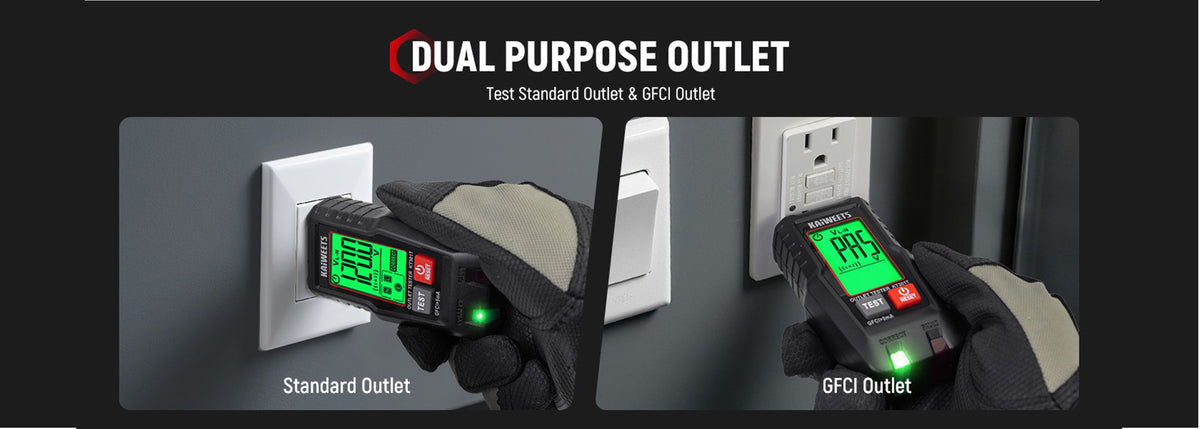

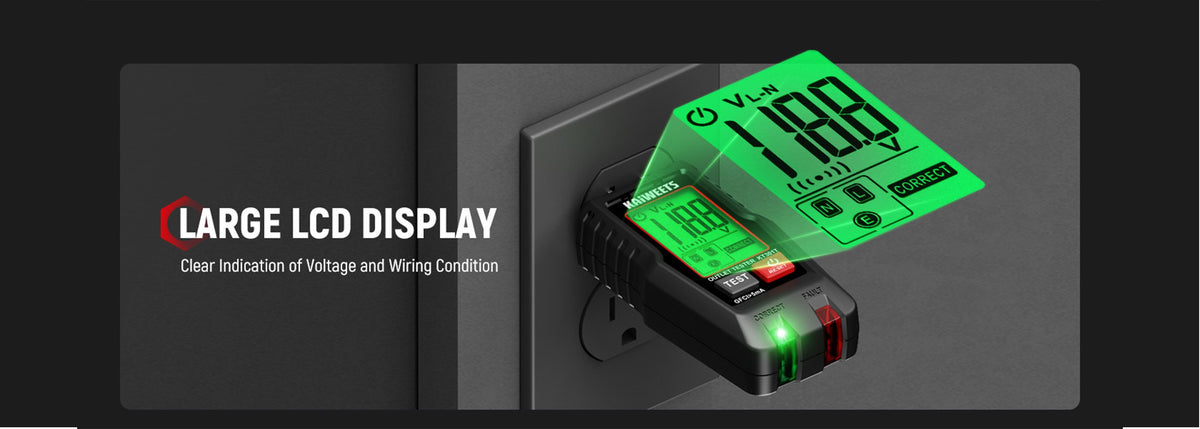

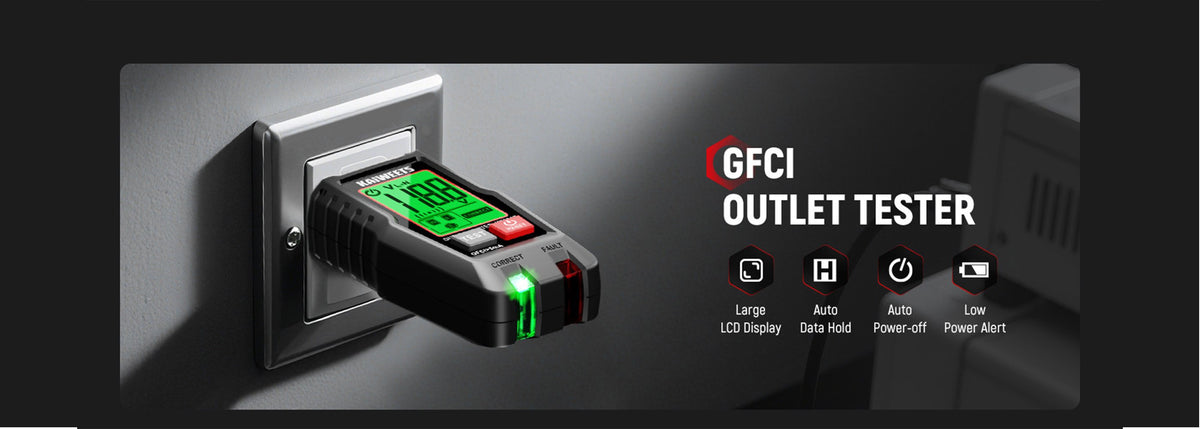

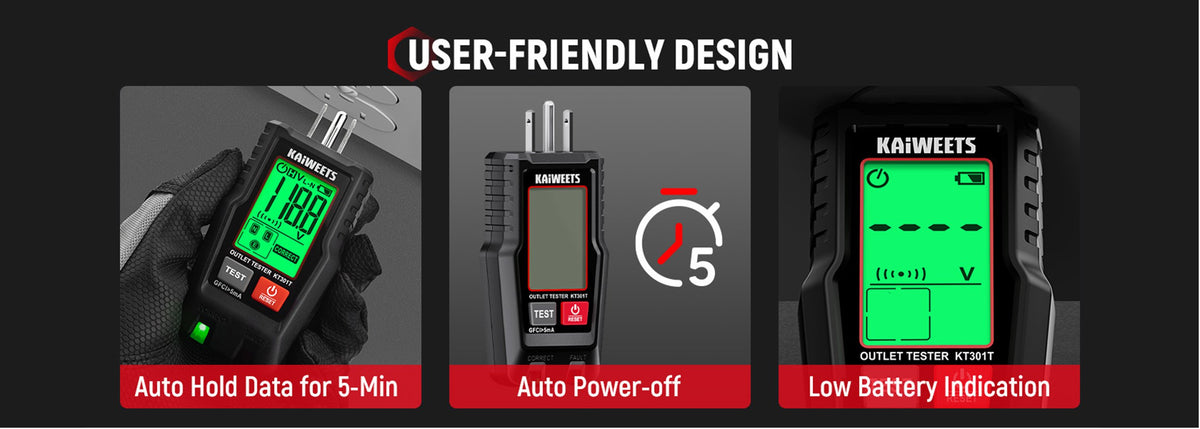

Advanced GFCI Outlet Tester: Detects wiring configurations, confirms correct wiring & indentifies common wiring faults with crystal-clear LCD codes. Results automatically freeze for 5 min so you can read at a glance. Works on GFCI & standard outlets. CAT II 125V rated.

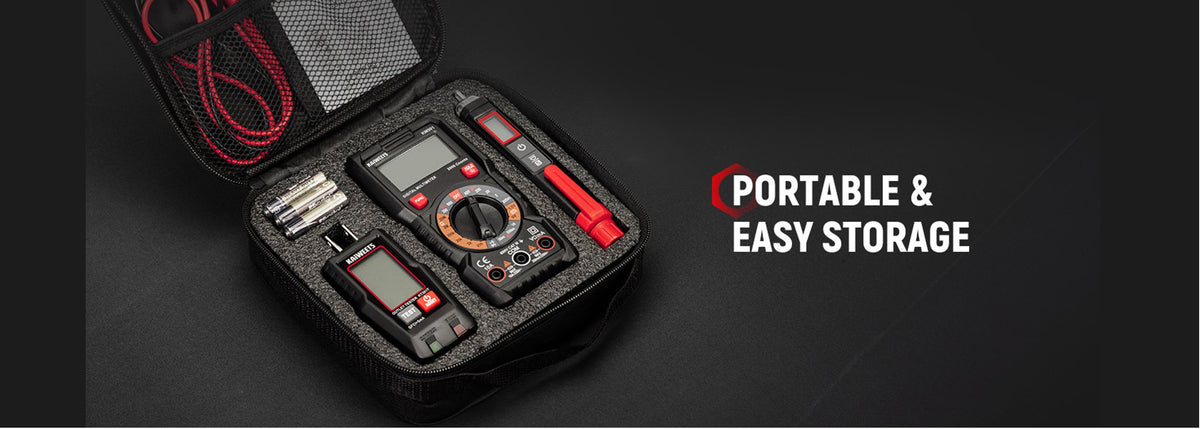

Complete Kit: Includes Digital Multimeter, NCV Tester, GFCI Tester, 2 Test Leads, 6 AAA Batteries, User Manual, and Carrying Case. No extra purchases—everything you need is in the box.
3-Year warranty: KAIWEETS crafts top-tier electrical tools renowned for their reliability and performance. We offer a 3-Year warranty, 24/7 after-sales service ensuring a worry-free purchase.
Description
1 Kit, 3 Essential Tools – Unzip it to reveal your complete diagnostic setup: a digital multimeter, non-contact voltage pen, and GFCI outlet tester. No more wasted trips to the truck or fumbling for separate meters. Built for electricians, HVAC pros, and dedicated DIYers who value efficiency and need to get the job done right—without the downtime.
Versatile Digital Multimeter: Measures AC/DC Voltage (600V), DC Current (10A), Resistance (20MΩ), Continuity, Diode & Batteries (1.5V/9V). Backlit LCD, Data Hold, auto-off & CAT III 600V safety.
Smart Non-Contact Voltage Detector: No guess work! LCD gives live % and color read-outs, plus beeps and flashing LEDs when voltage is detected. Dual-range 12–1000 V AC / 70–1000 V AC. Built-in flashlight, auto-off. Highest Safety: CAT IV 600V/CAT III 1000V.
Advanced GFCI Outlet Tester: Detects wiring configurations, confirms correct wiring & indentifies common wiring faults with crystal-clear LCD codes. Results automatically freeze for 5 min so you can read at a glance. Works on GFCI & standard outlets. CAT II 125V rated.
Complete Kit: Includes Digital Multimeter, NCV Tester, GFCI Tester, 2 Test Leads, 6 AAA Batteries, User Manual, and Carrying Case. No extra purchases—everything you need is in the box.
3-Year warranty: KAIWEETS crafts top-tier electrical tools renowned for their reliability and performance. We offer a 3-Year warranty, 24/7 after-sales service ensuring a worry-free purchase.
Technical Specifications

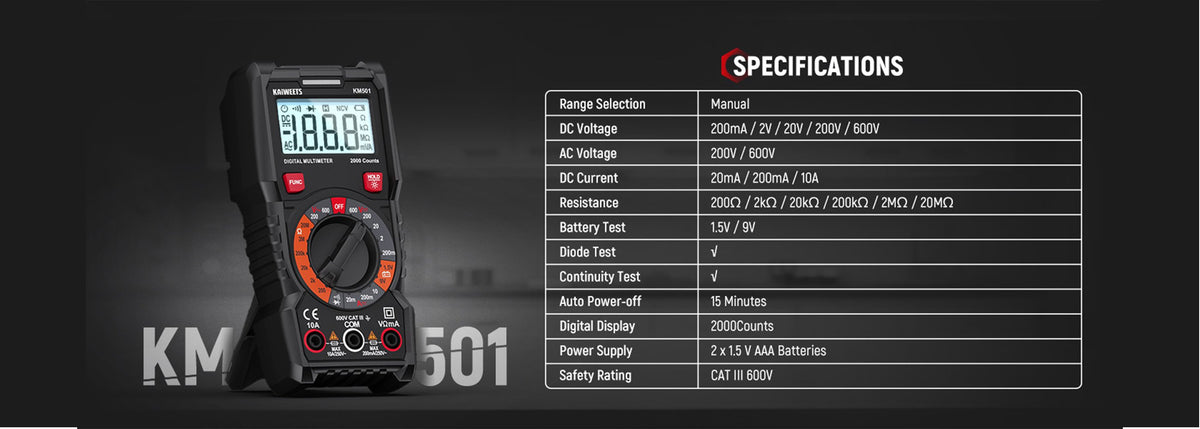

KM501
Digital Multimeter
General Technical Specifications
| Safety Category | CAT III 600V |
| Pollution Degree | 2 |
| Operating Altitude | Below 6562 ft (2000 m) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | <80% RH, non-condensing |
| Storage Temperature / Humidity | 14°F to 140°F (-10°C to 60°C), <70% RH, with batteries removed |
| Temperature Coefficient | 0.1 × specified accuracy per °C when below 64.4°F (18°C) or above 82.4°F (28°C) |
| Maximum Voltage Between Measurement Terminals and Earth | 600V |
| Fuse Protection |
mA range: F200mA/250V fuse 10A range: F10A/250V fuse |
| Sampling Rate | Approximately 3 times per second |
| Overrange Indicator | Displays “OL” |
| Low-Battery Indicator | Low-battery symbol appears when battery voltage is low |
| Input Polarity Indicator | Automatic negative-polarity display “−” |
| Power Supply | 2 × 1.5V AAA batteries |
| Dimensions | 5.94 × 2.95 × 1.81 in (151 × 75 × 46 mm) |
Accuracy Specifications
Accuracy is valid for one year after calibration. Reference conditions: 64.4°F to 82.4°F (18°C to 28°C), with relative humidity not exceeding 80%. Accuracy is expressed as ±(% of reading + digits).
DC Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| 200mV | 0.1mV | ±(0.5% of reading + 3 digits) |
| 2V | 0.001V | |
| 20V | 0.01V | |
| 200V | 0.1V | |
| 600V | 1V |
Overload protection: 600V. Maximum measuring voltage: 600V.
AC Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| 200V | 0.1V | ±(1.2% of reading + 5 digits) |
| 600V | 1V |
Overload protection: 600V. Maximum measuring voltage: 600V, 40–500Hz.
DC Current
| Range | Resolution | Accuracy |
|---|---|---|
| 20mA | 0.01mA | ±(1.2% of reading + 3 digits) |
| 200mA | 0.1mA | |
| 10A | 0.01A |
Overload protection: mA range—F200mA/250V fuse; A range—F10A/250V fuse. Maximum measuring current: 200mA on the mA range and 10A on the A range. When measuring high current, continuous measurement should not exceed 15 seconds.
Resistance
| Range | Resolution | Accuracy |
|---|---|---|
| 200Ω | 0.1Ω | ±(1.0% of reading + 3 digits) |
| 2kΩ | 0.001kΩ | |
| 20kΩ | 0.01kΩ | |
| 200kΩ | 0.1kΩ | |
| 2MΩ | 0.001MΩ | ±(1.5% of reading + 3 digits) |
| 20MΩ | 0.01MΩ |
Overload protection: 600V.
Diode and Continuity Test
| Function | Test Conditions |
|---|---|
| Diode Test | Displays the approximate forward voltage of the diode. Forward DC current: approximately 1.0mA. Reverse DC voltage: approximately 2.4V. Overload protection: 600V. |
| Continuity Test | The built-in buzzer sounds when resistance is below approximately 30Ω. Reverse DC voltage: approximately 1V. Overload protection: 600V. |
HT100S
Non-Contact Voltage Detector

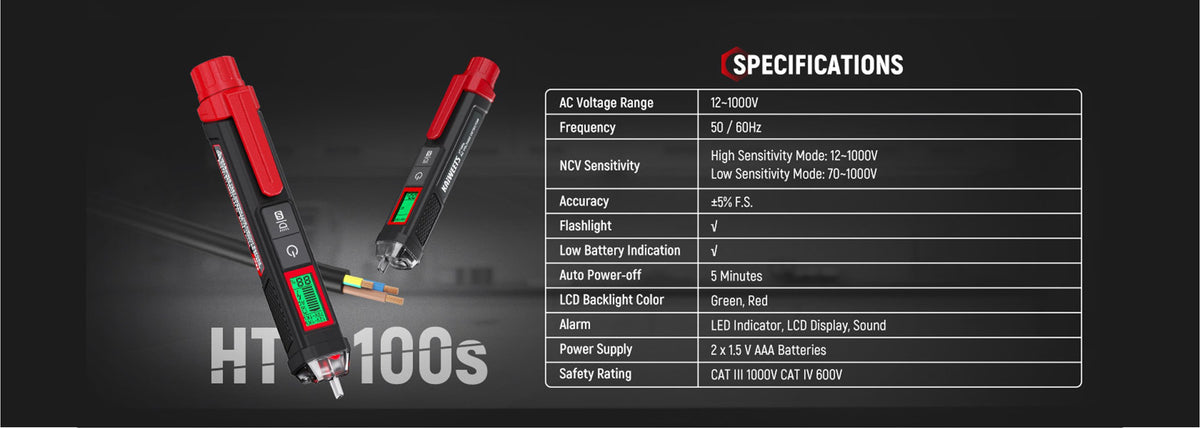

Technical Specifications
| Voltage Detection Range | AC 12–1000V, 50/60Hz |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 14°F to 122°F (-10°C to 50°C) |
| Humidity | ≤95% |
| Operating Altitude | ≤6562 ft (≤2000 m) |
| Safety Rating | CE, CAT III 1000V, CAT IV 600V |
| Batteries | 2 × 1.5V AAA batteries |

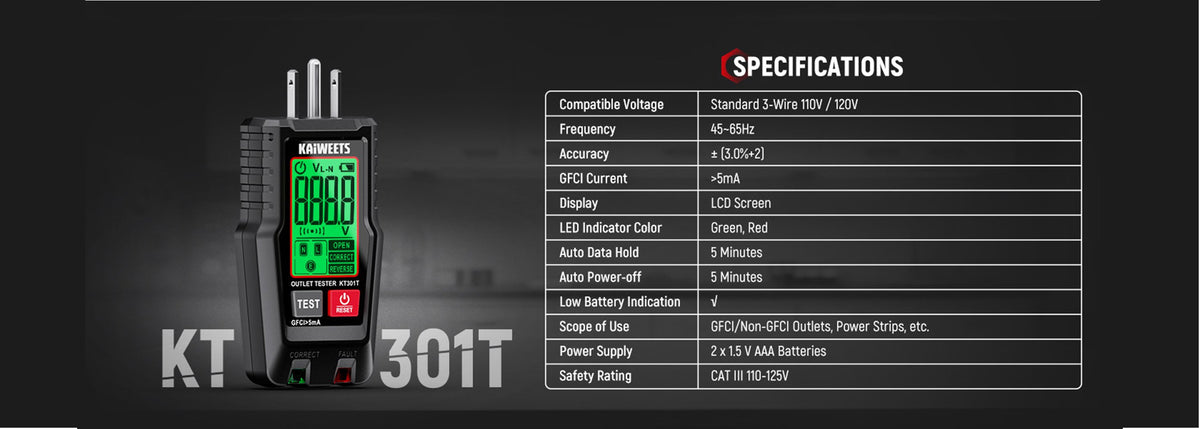

KT301T
Outlet Wiring Tester

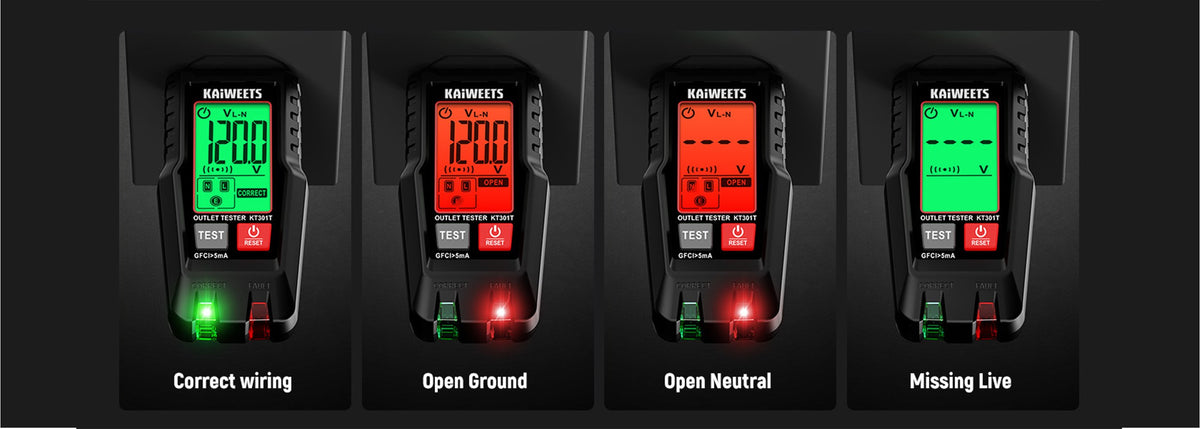

Function Cross-Reference
| Display | Wiring Condition |
|---|---|
| Live & Neutral & Ground — Correct | Correct Wiring |
| Ground — Open | Open Ground |
| Neutral — Open | Open Neutral |
| — | Missing Live |

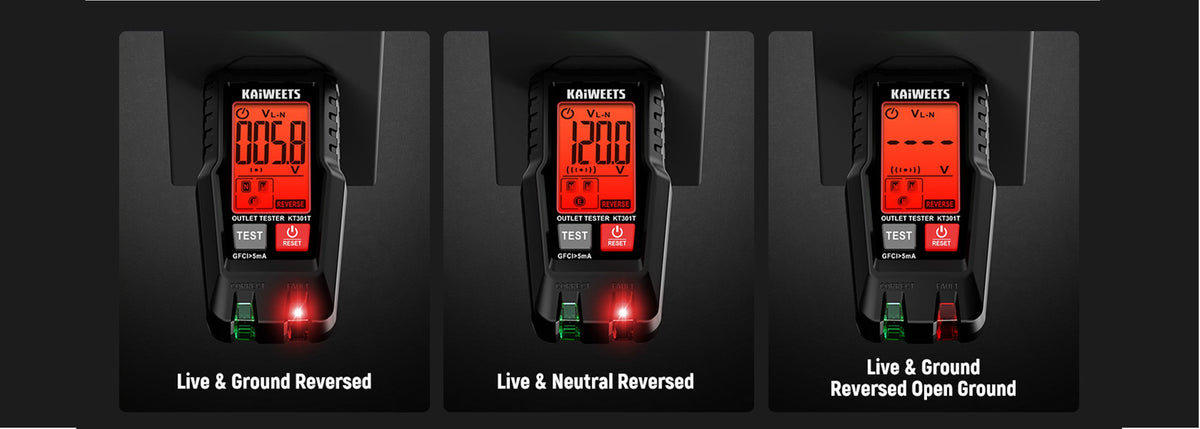

| Live & Ground — Reverse | Live & Ground Reversed |
| Live & Neutral — Reverse | Live & Neutral Reversed |
| Live & Neutral & Ground — Reverse | Live & Ground Reversed or Open Ground |
Parameters
Technical Specifications
KM501
Digital Multimeter
General Technical Specifications
| Safety Category | CAT III 600V |
| Pollution Degree | 2 |
| Operating Altitude | Below 6562 ft (2000 m) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | <80% RH, non-condensing |
| Storage Temperature / Humidity | 14°F to 140°F (-10°C to 60°C), <70% RH, with batteries removed |
| Temperature Coefficient | 0.1 × specified accuracy per °C when below 64.4°F (18°C) or above 82.4°F (28°C) |
| Maximum Voltage Between Measurement Terminals and Earth | 600V |
| Fuse Protection |
mA range: F200mA/250V fuse 10A range: F10A/250V fuse |
| Sampling Rate | Approximately 3 times per second |
| Overrange Indicator | Displays “OL” |
| Low-Battery Indicator | Low-battery symbol appears when battery voltage is low |
| Input Polarity Indicator | Automatic negative-polarity display “−” |
| Power Supply | 2 × 1.5V AAA batteries |
| Dimensions | 5.94 × 2.95 × 1.81 in (151 × 75 × 46 mm) |
Accuracy Specifications
Accuracy is valid for one year after calibration. Reference conditions: 64.4°F to 82.4°F (18°C to 28°C), with relative humidity not exceeding 80%. Accuracy is expressed as ±(% of reading + digits).
DC Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| 200mV | 0.1mV | ±(0.5% of reading + 3 digits) |
| 2V | 0.001V | |
| 20V | 0.01V | |
| 200V | 0.1V | |
| 600V | 1V |
Overload protection: 600V. Maximum measuring voltage: 600V.
AC Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| 200V | 0.1V | ±(1.2% of reading + 5 digits) |
| 600V | 1V |
Overload protection: 600V. Maximum measuring voltage: 600V, 40–500Hz.
DC Current
| Range | Resolution | Accuracy |
|---|---|---|
| 20mA | 0.01mA | ±(1.2% of reading + 3 digits) |
| 200mA | 0.1mA | |
| 10A | 0.01A |
Overload protection: mA range—F200mA/250V fuse; A range—F10A/250V fuse. Maximum measuring current: 200mA on the mA range and 10A on the A range. When measuring high current, continuous measurement should not exceed 15 seconds.
Resistance
| Range | Resolution | Accuracy |
|---|---|---|
| 200Ω | 0.1Ω | ±(1.0% of reading + 3 digits) |
| 2kΩ | 0.001kΩ | |
| 20kΩ | 0.01kΩ | |
| 200kΩ | 0.1kΩ | |
| 2MΩ | 0.001MΩ | ±(1.5% of reading + 3 digits) |
| 20MΩ | 0.01MΩ |
Overload protection: 600V.
Diode and Continuity Test
| Function | Test Conditions |
|---|---|
| Diode Test | Displays the approximate forward voltage of the diode. Forward DC current: approximately 1.0mA. Reverse DC voltage: approximately 2.4V. Overload protection: 600V. |
| Continuity Test | The built-in buzzer sounds when resistance is below approximately 30Ω. Reverse DC voltage: approximately 1V. Overload protection: 600V. |
HT100S
Non-Contact Voltage Detector
Technical Specifications
| Voltage Detection Range | AC 12–1000V, 50/60Hz |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 14°F to 122°F (-10°C to 50°C) |
| Humidity | ≤95% |
| Operating Altitude | ≤6562 ft (≤2000 m) |
| Safety Rating | CE, CAT III 1000V, CAT IV 600V |
| Batteries | 2 × 1.5V AAA batteries |
KT301T
Outlet Wiring Tester
Function Cross-Reference
| Display | Wiring Condition |
|---|---|
| Live & Neutral & Ground — Correct | Correct Wiring |
| Ground — Open | Open Ground |
| Neutral — Open | Open Neutral |
| — | Missing Live |
| Live & Ground — Reverse | Live & Ground Reversed |
| Live & Neutral — Reverse | Live & Neutral Reversed |
| Live & Neutral & Ground — Reverse | Live & Ground Reversed or Open Ground |

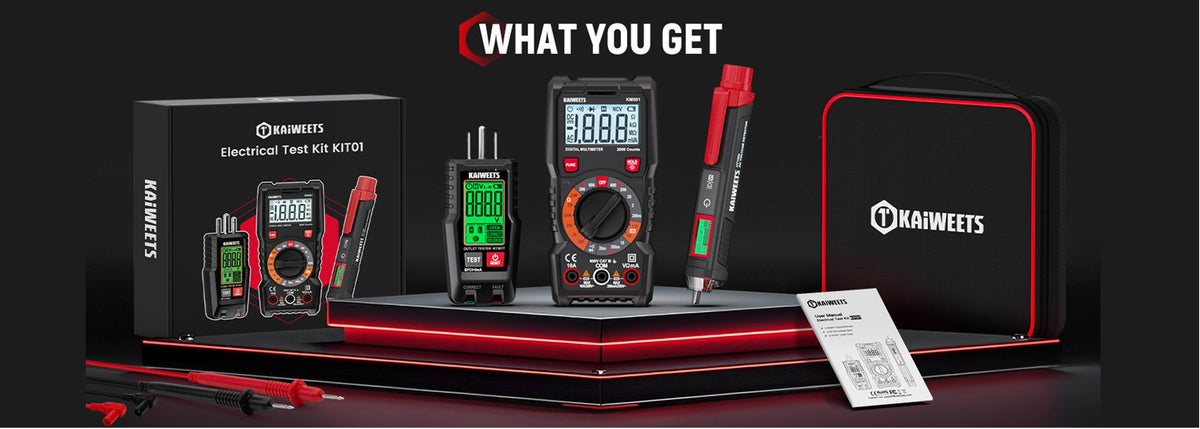

1 x KM501 Includes Digital Multimeter
1 x HT100S NCV Tester
1 x KT301T GFCI Tester
2 x Test Leads
6 x AAA Batteries
1 x User Manual
1 x Carrying Case.
Package Lists
1 x KM501 Includes Digital Multimeter
1 x HT100S NCV Tester
1 x KT301T GFCI Tester
2 x Test Leads
6 x AAA Batteries
1 x User Manual
1 x Carrying Case.
