KAIWEETS HT118E 20000 Counts Digital Multimeter
Fraud Prevention: Your Payment is Safe & Secure.
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.
Higher Resolution - 20000 Counts: HT118E multimeter with more resolution bits allows for more accurate measurement results. The flashlight on the back ensures easy use in dimly lit places. Min/Max to record signal fluctuations. Stable kickstand, Pen slot on the back, Low battery prompt, Data retention, Auto power-off.
Wide Applications: Accurately measures AC/DC Voltage, AC/DC Current, Resistance, HT118E voltage tester also measures Temperature, Capacitance, Frequency, Duty-cycle, Diodes, Continuity, and NCV, Live with sound and light alarm. Suitable for Household Outlets, Fuses, Batteries (including Vehicles), Automotive Circuit Troubleshooting, Charging Systems, Testing electronics in Cars, etc.
Multi-function: Non-contact voltage testing and Live function with sound and light alarm. The screen changes to red while detecting live wire. Low battery prompt, Data retention, Max/Min data, Auto Power-Off, Auto-Ranging, Min/Max/Average to record signal fluctuations, Stable kickstand, Pen slot on the back, Bright flashlight.
Safety First: IEC Rated CAT III 1000V, CAT IV 600V, CE, RoHS certified. Anti-Burn with double ceramic fuse and thermistor protection circuit. High Voltage Protection is active on all ranges. Double insulated unit. The silicone protective case prevents it from falling damage.
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 200mV/2V/20V/200V/1000V | ±(0.08%+5) |
| AC Voltage | 200mV/2V/20V/200V/750V | ±(1.0%+25) |
| DC Current | 200uA/2000uA/20mA/200mA | ±(0.5%+5) |
| 10A | ±(1.0%+15) | |
| AC Current | 200uA/2000uA/20mA/200mA | ±(1.0%+25) |
| 10A | ±(1.5%+25) | |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ | ±(1.0%+15) |
| 20MΩ/100MΩ | ±(3.0%+25) | |
| Capacitance | 20nF/200nF/2μF/20μF1200μF/2mF | ±(4.0%+50) |
| Frequency | 200Hz/2kHz/20kHz/200kHz/2MHz/10MHz | ±(1.0%+10) |
| Duty | 1%~99% | ±(3.0%+30) |
| Temperature | -20°C-1000°C | ±(1.0%+2°C) |
| -4°F~1832°F | ±(1.0%+2°F) |

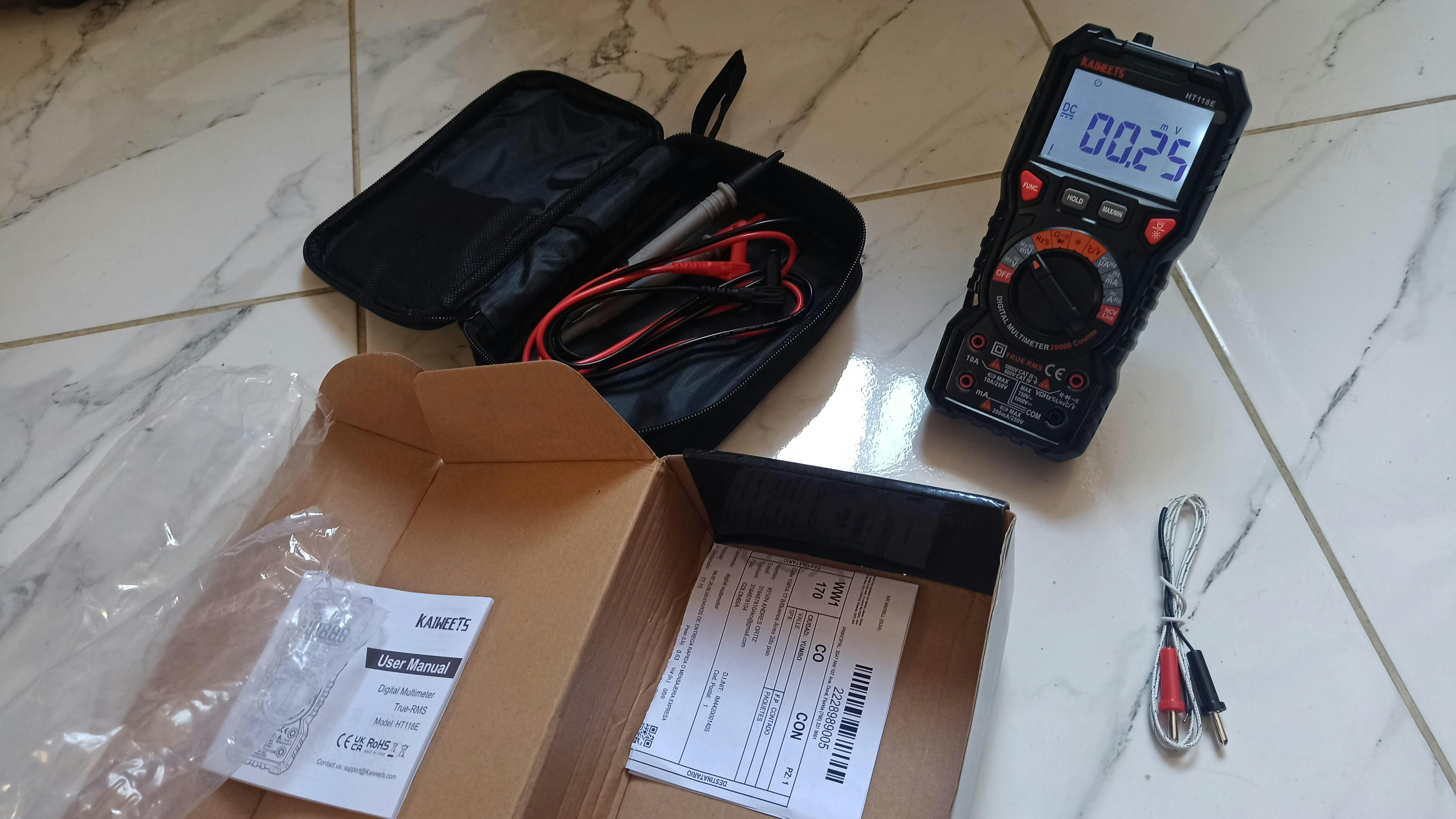

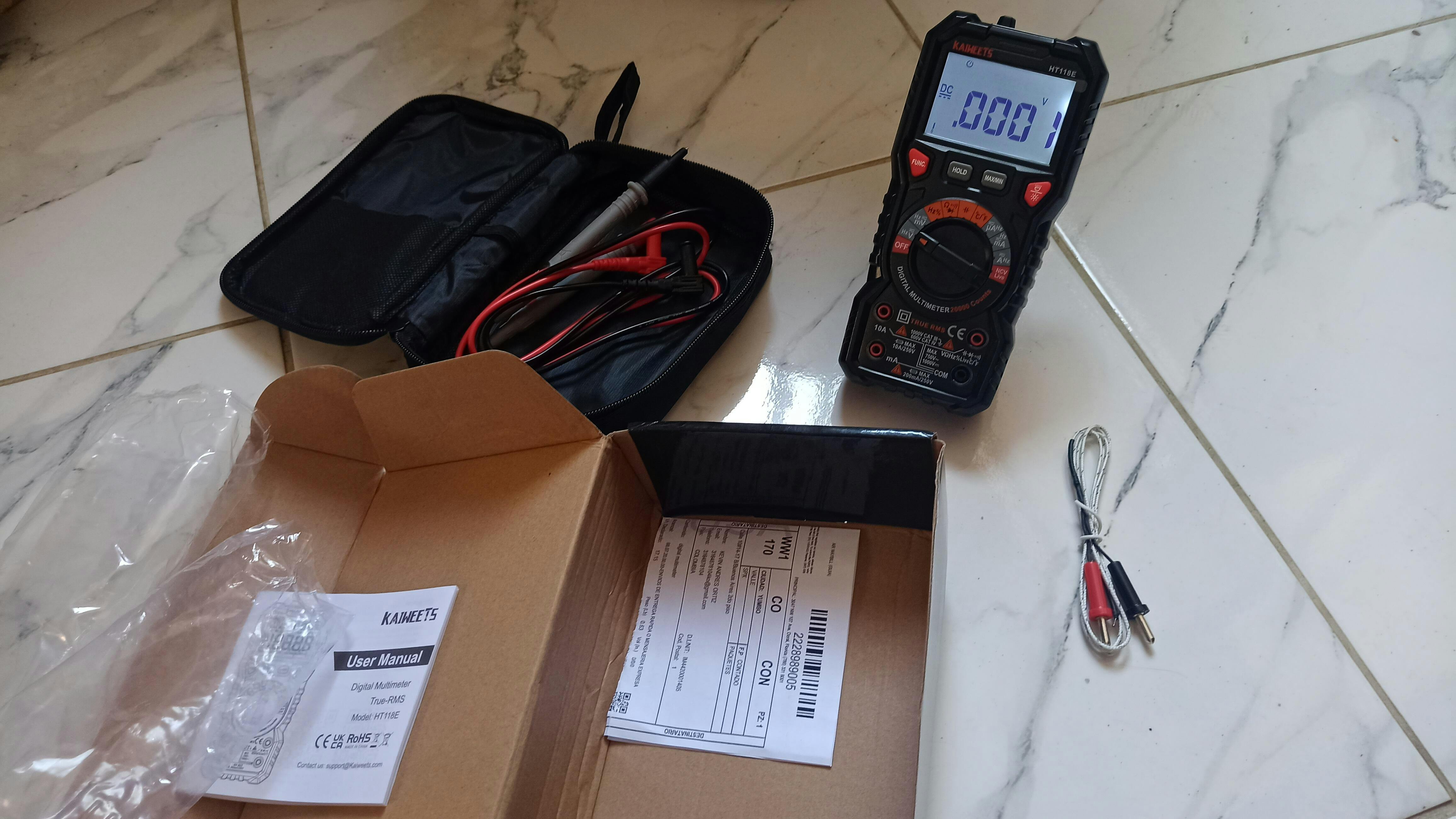

1 x HT118E Digital Multimeter
2 x Test Leads
1 x User Manual
1 x Thermocouple
2 x AAA Batteries
1 x Durable EVA Bag
- USER MANUAL
- Download
- PATENT CERTIFICATE
- → CE EMC-Certificate
- → CE EMC-Test Report
- → LD01-Certificate
- → LD01-Test Report
SAFETY ABOVE ALL
IEC Rated CAT III 1000V, CAT IV 600V, CE, RoHS, FCC certified. Anti-Burn with double ceramic fuse and thermistor protection circuit. High Voltage Protection is active on all ranges. Double insulated unit. Silicone protective cover prevents the multimeter from falling damage and electric shocks. Low battery indication will be displayed when battery power is low.
EASE TO USE

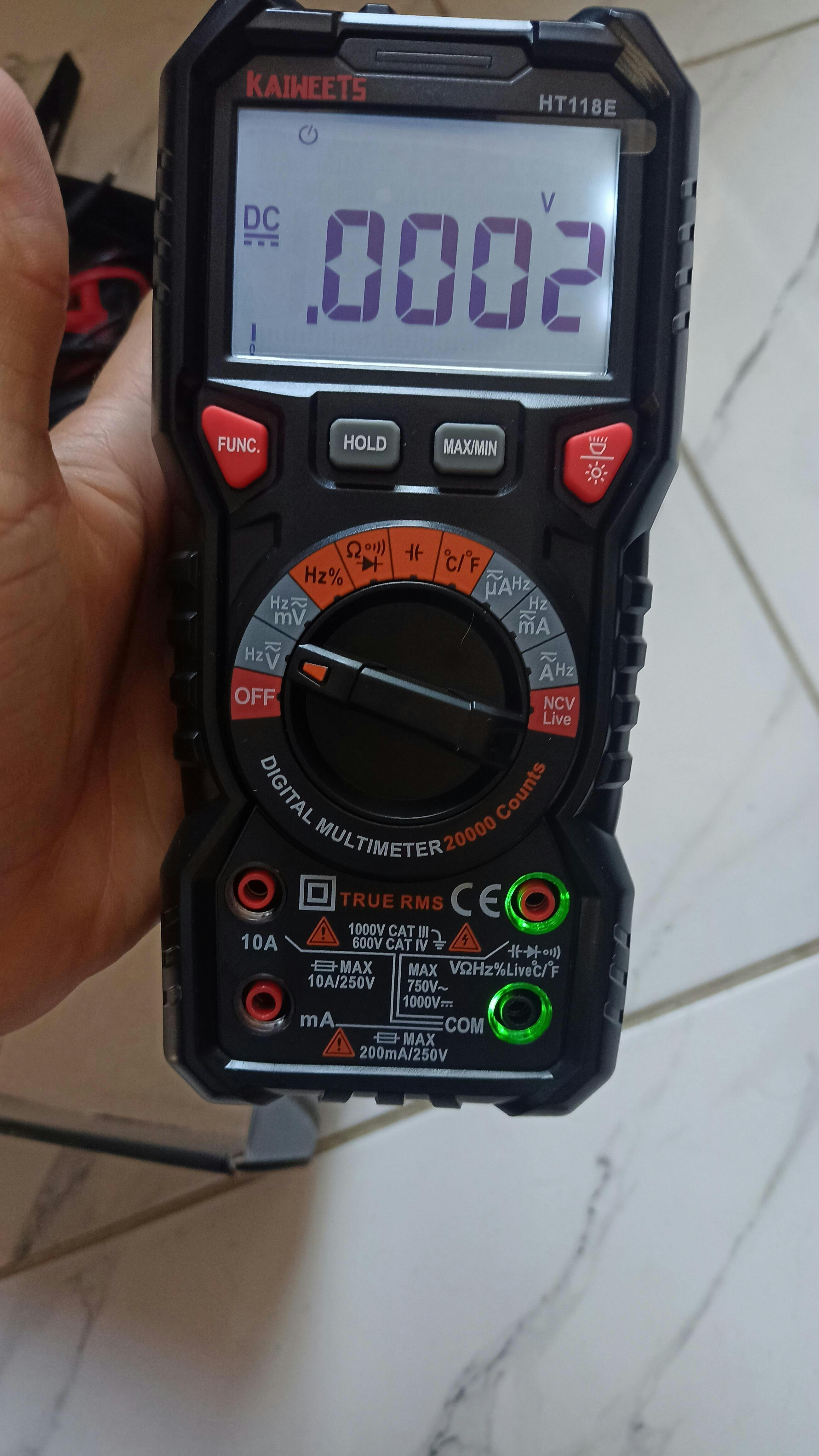

Switch the dial to the function you need, and the LED lights on the jacks will shine accordingly, helping you place the probes into the correct position and plug in the leads easily. Autoranging saves you the hassle of having to know which range of value. The LCD backlight display offers easy-to-read digits.
Nice multimeter as expected. Customer service excellent, even over the holidays. Highly recommend.
I was annoyed at trying to use 'shop' to track my purchase.
Wow so many features, The LED flash Nice touch, how many time I could have used that. Lightweight too. Runs on two AA batteries. Incredible. Think about it. There is energy in the batteries, Volage and current how to transform in to something like this device an interpreter. Alien man.
It is a very complete tool with a very efficient and clear level of accuracy.
Works as it should. Great for price, good quality
