KAIWEETS KOTC02 Paint Thickness Gauge
Fraud Prevention: Your Payment is Safe & Secure.
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.

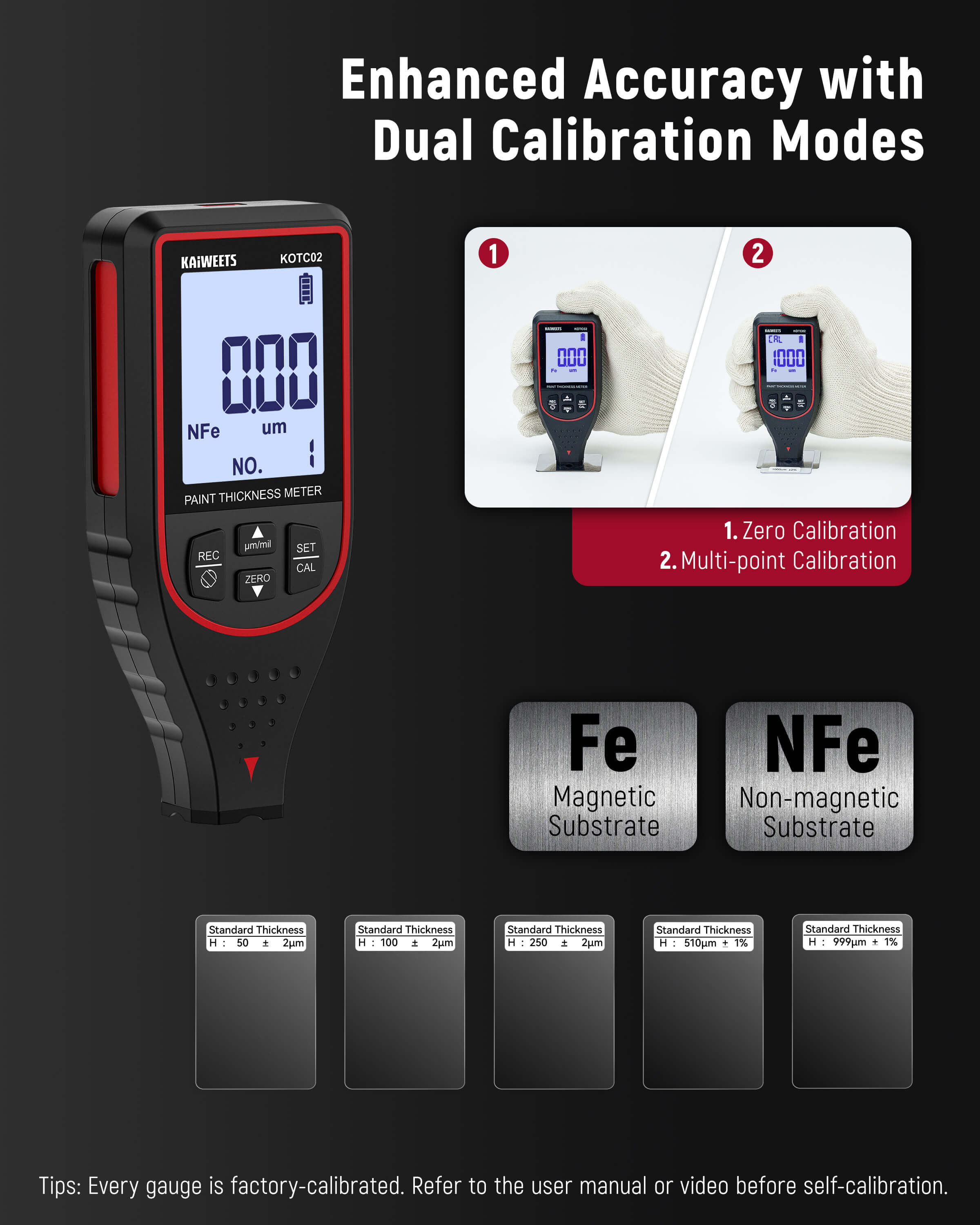

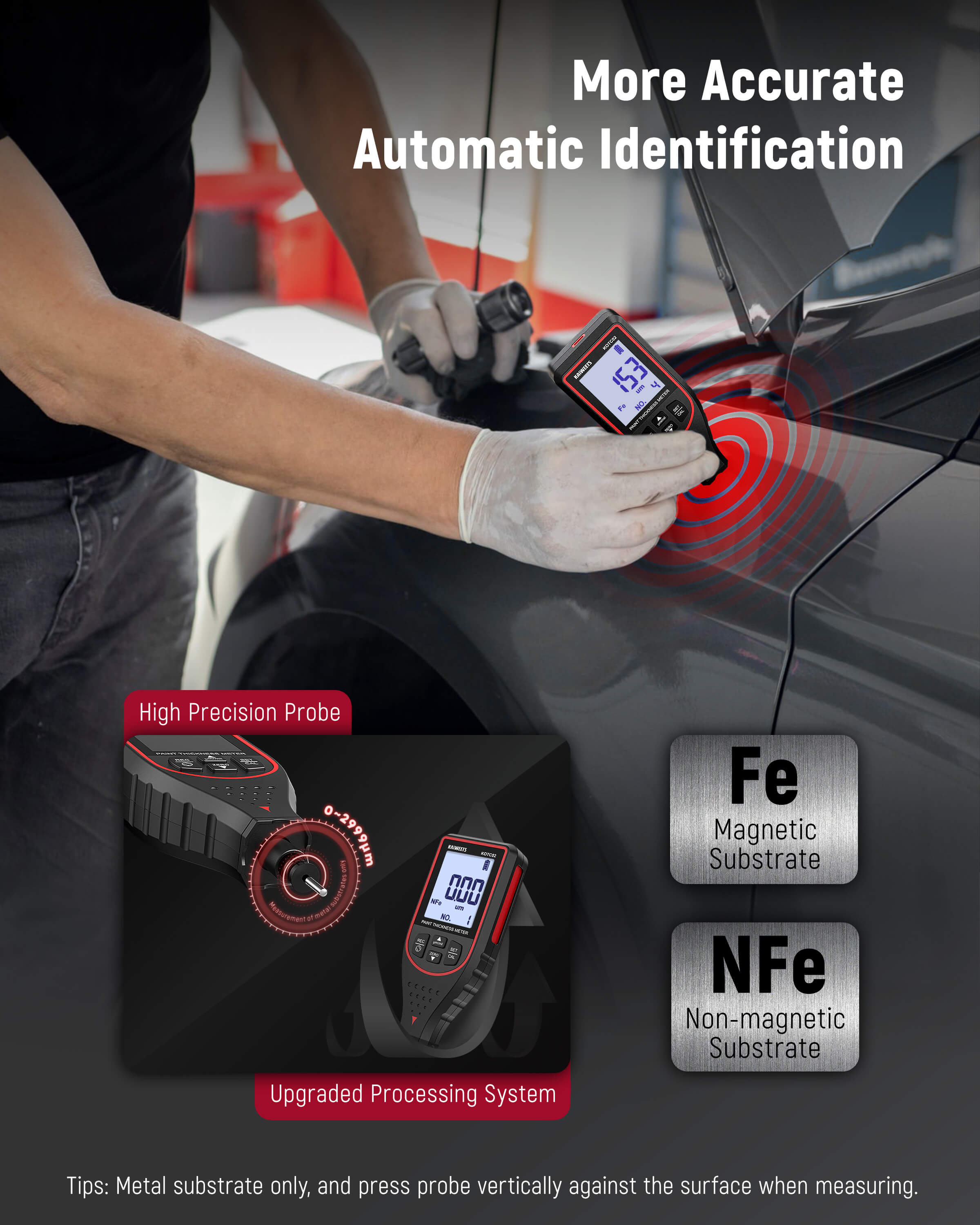

Fast and Reliable Measurement: Engineered for efficiency, our paint thickness gauge automatically identifies ferrous and non-ferrous metals with exceptional precision, delivering precise measurements in mere seconds. This high-speed performance ensures instantaneous, accurate results without compromising the integrity of coatings or substrates. Factory-calibrated to standard substrates, and equipped with both Zero Point and Multi-Points calibration modes, accuracy is guaranteed across all applications.

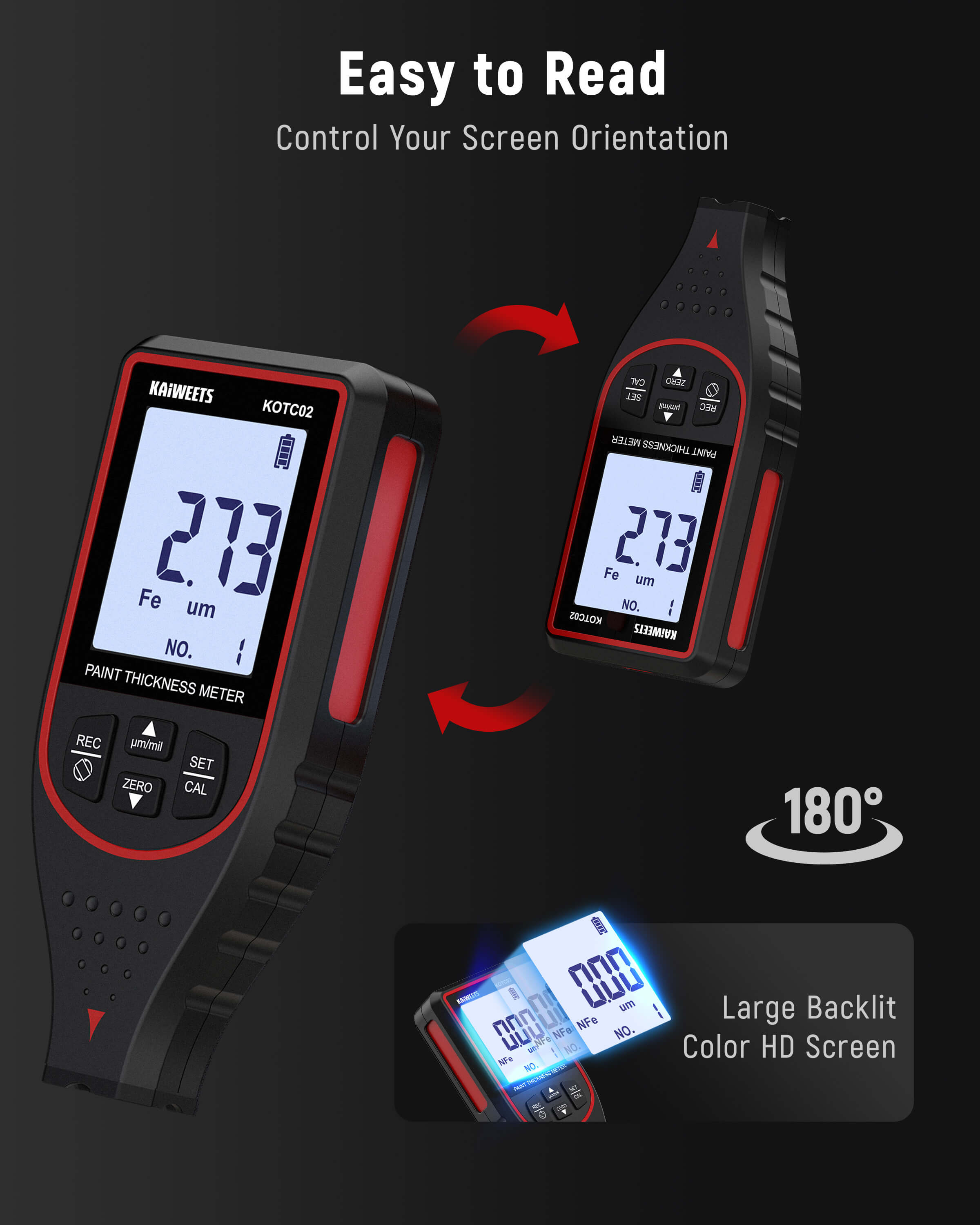

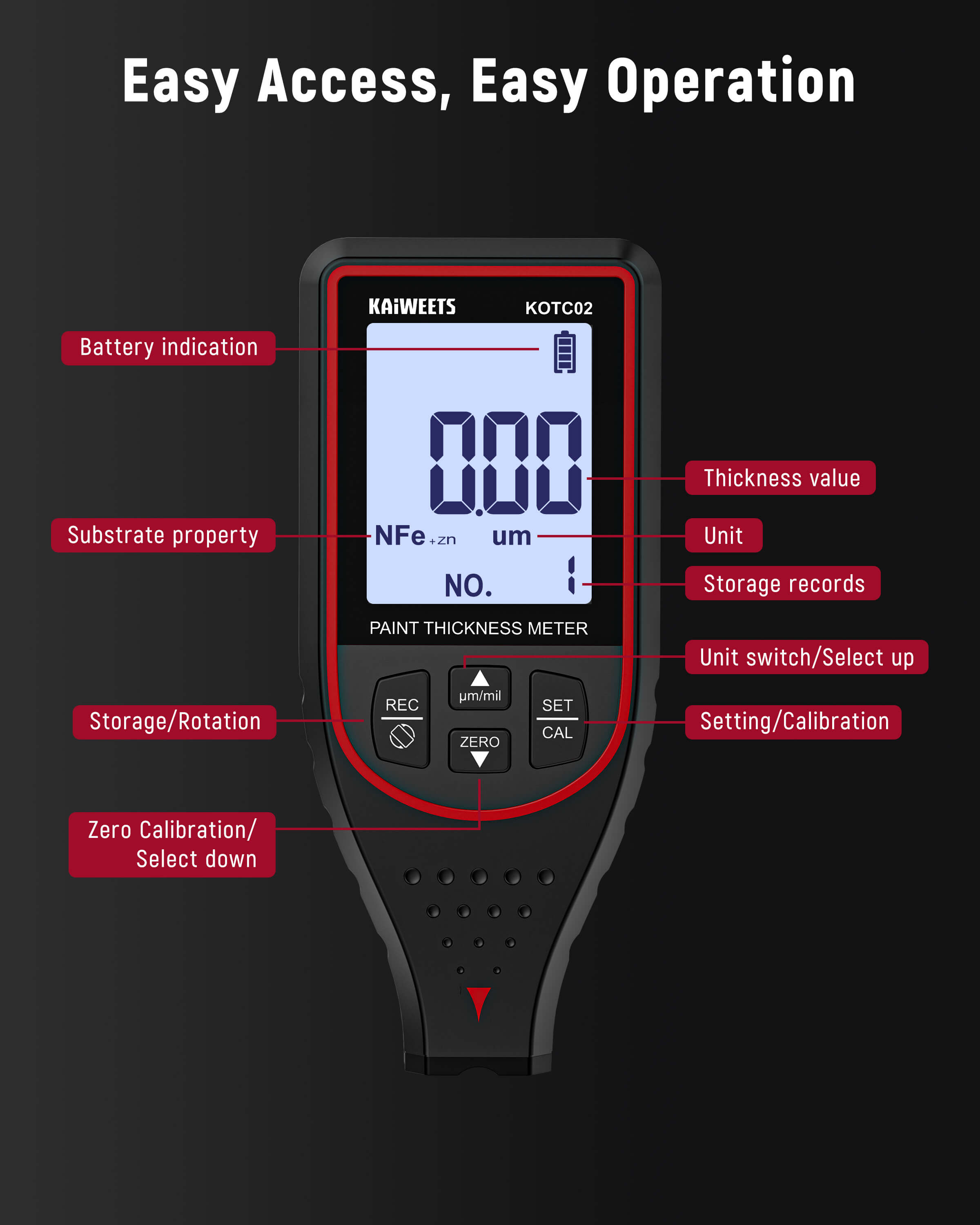

Large Backlit Rotatable Display for Enhanced Readability: The paint depth gauge features a high-definition backlit display that rotates, making it easy to read from any angle. It shows the metal type, operating mode, battery status, storage records, and measurements in micrometers (um) or mils. The display's brightness ensures visibility even in dimly lit environments, enhancing usability in various scenarios.

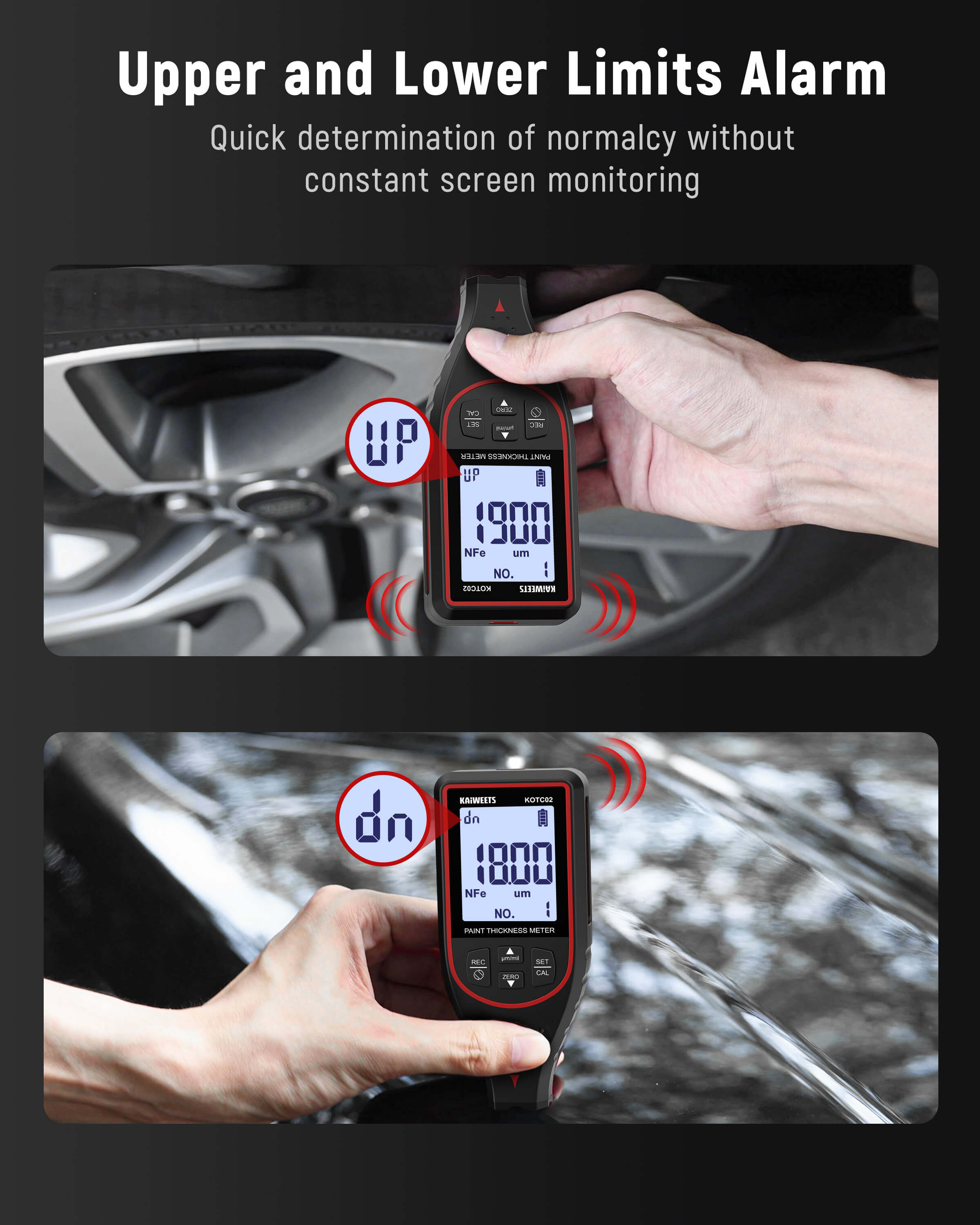

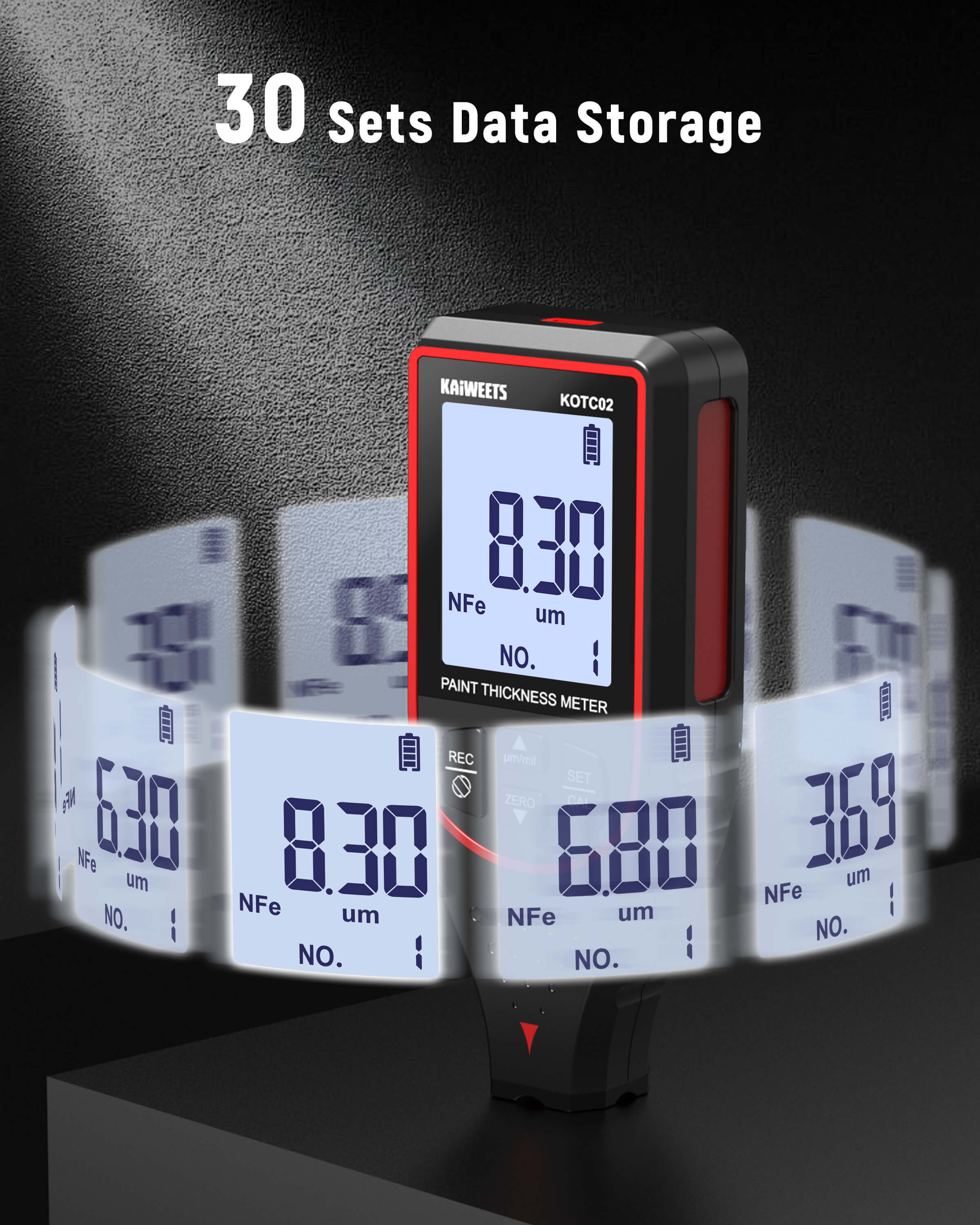

Advanced Functionality for User Convenience: With a capacity to store 30 sets of data, the car coating thickness gauge simplifies record-keeping. Its upper and lower alarm limit functions expedite the assessment of coatings, allowing quick determination of normalcy without constant screen monitoring. The auto power-off function conserves battery life, and the digital tester supports both single and continuous measurement modes for flexibility.
Compact Design For Portability and Ease Of Use: The gauge's compact size and large buttons make it comfortable to use, even with gloves, ensuring practicality in all conditions. It comes with a handy storage bag, facilitating effortless carrying and storage, making it ideal for on-the-go measurements.
Wider Application & Premium Support: Boasting an extensive measuring range of 0-2999µm (0-118 mils), this paint meter is perfect for major industrial workshops, metal fabrication, laboratories, and outdoor environments. Its versatility is particularly advantageous in the used car market, where checking automotive paint thickness is critical to avoid overpaying for a vehicle. We provide a 3-year maintenance program and lifetime technical assistance, guaranteeing unparalleled customer support. If you have any inquiries, our dedicated team is always ready to assist.
| KOTC02 | Parameters |
|---|---|
| Measuring Range | Magnetic material 0-2999µm Non magnetic material 0~2999µm |
| Resolution | 0.1µm@ (0-99.9µm) 1 µm@(100~2999µm) |
| Accuracy | ±(2+2%)µm @(0~500µm) ±2.5%µm @ (500-2999µm) |
| Min Measuring Area | Magnetic material 25x25mm Non magnetic material 25x25mm |
| Min Curvature | Convexity 5mm; concave 30mm |
| Min Substrate Thickness | Magnetic material 0.2mm Non magnetic material 0.05mm |
| Screen | Segment screen |
| Number Of Data Storage | 30 sets |
| Battery Specification | 2 x 1.5V AAA | Working Temp And Humidity | 0℃-50℃,10%-80%RH | Storage Temp And Humidity | -10℃-60℃，10%~70%RH | Dimension | 120x52x26mm |

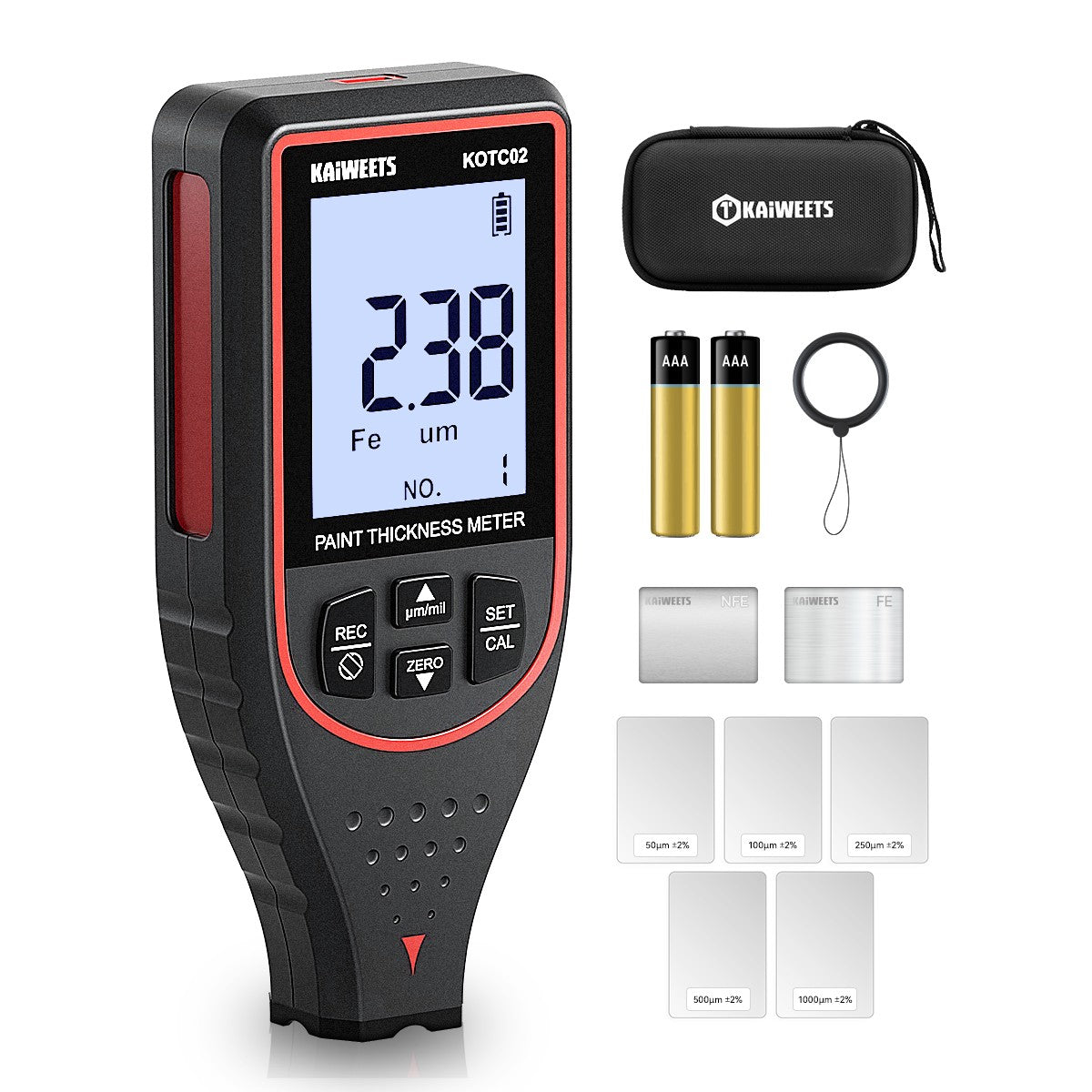

1 * KOTC02 Paint Thickness Gauge
2 * 1.5V AAA Battery
1 * Cloth bag box
1 * Instruction manual
1 * Lanyard
2 * Substrate
5 * Calibration sheet
