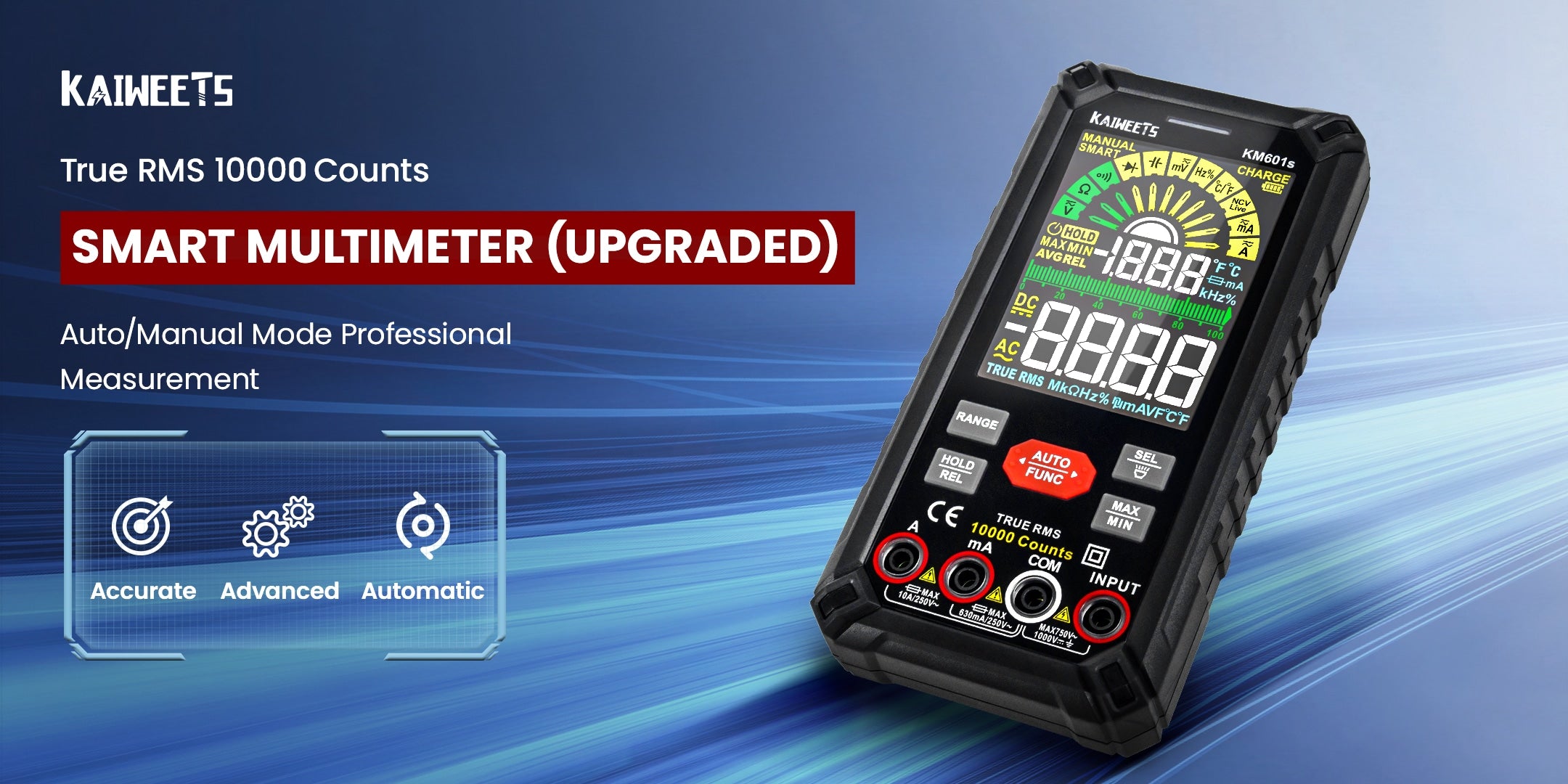

KAIWEETS KM601S 10000 Counts Smart Digital Multimeter
5-7 Business Days to America and Europe.
15-30 Business Days to Other Areas.
30-Day No-Hassle Returns & 3-Year Warranty
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.
Smart Mode: KM601s
This smart multimeter enters smart mode by default. In smart mode, the voltmeter automatically measures voltage, resistance, and continuity. It can identify the measurement content and select the range with the best resolution, making the measurement more convenient and faster.
Upgraded Version:
-
Rechargeable design with a built-in 1200mAh battery
-
Lasts longer, no need to replace batteries manually
-
Added retractable bracket for hands-free use
Wide Application:
The digital multimeter is suitable for diagnosing automotive, industrial, and household electrical problems. The multimeter can accurately measure AC and DC voltage, resistance, continuity, AC and DC current, capacitance, frequency, diode, duty cycle, temperature, NCV, and live wire.
Safety First:
This smart digital multimeter is manufactured to meet the IEC rating CAT.III 1000V, CAT.IV 600V. Obtained CE and RoHS certifications. Anti-burn with double fuse and overload protection. The silicone case provides additional drop protection and electric shock protection.
Description
Smart Mode: KM601s
This smart multimeter enters smart mode by default. In smart mode, the voltmeter automatically measures voltage, resistance, and continuity. It can identify the measurement content and select the range with the best resolution, making the measurement more convenient and faster.
Upgraded Version:
-
Rechargeable design with a built-in 1200mAh battery
-
Lasts longer, no need to replace batteries manually
-
Added retractable bracket for hands-free use
Wide Application:
The digital multimeter is suitable for diagnosing automotive, industrial, and household electrical problems. The multimeter can accurately measure AC and DC voltage, resistance, continuity, AC and DC current, capacitance, frequency, diode, duty cycle, temperature, NCV, and live wire.
Safety First:
This smart digital multimeter is manufactured to meet the IEC rating CAT.III 1000V, CAT.IV 600V. Obtained CE and RoHS certifications. Anti-burn with double fuse and overload protection. The silicone case provides additional drop protection and electric shock protection.
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 99.99mV/999.9mV/9.999V/99.99V/999.9V | ±(0.5%+3) |
| AC Voltage | 99.99mV/999.9mV/9.999V/99.99V/750V | ±(0.8%+3) |
| DC Current | 9.999mA/99.99mA/600mA | ±(0.8%+3) |
| 9.999A | ±(1.2%+3) | |
| AC Current | 9.999mA/99.99mA/600mA | ±(0.8%+3) |
| 9.999A | ±(1.2%+3) | |
| Resistance | 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ/9.999MΩ/99.99MΩ | ±(1.0%+3) |
| Capacitance | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF | ±(3.0%+5) |
| Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz | ±(1.0%+3) |
| Duty | 1%~99% | ±(1.0%+3) |
| Temperature | -20℃~1000℃~-4°F~1832°F | ±(2.0%+3) |
| Bandwidth | 40~1KHz | |
| Fuse Protection | mA: F600mA/250V fuse 10A: F10A/250V fuse |
|
Parameters
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 99.99mV/999.9mV/9.999V/99.99V/999.9V | ±(0.5%+3) |
| AC Voltage | 99.99mV/999.9mV/9.999V/99.99V/750V | ±(0.8%+3) |
| DC Current | 9.999mA/99.99mA/600mA | ±(0.8%+3) |
| 9.999A | ±(1.2%+3) | |
| AC Current | 9.999mA/99.99mA/600mA | ±(0.8%+3) |
| 9.999A | ±(1.2%+3) | |
| Resistance | 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ/9.999MΩ/99.99MΩ | ±(1.0%+3) |
| Capacitance | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF | ±(3.0%+5) |
| Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz | ±(1.0%+3) |
| Duty | 1%~99% | ±(1.0%+3) |
| Temperature | -20℃~1000℃~-4°F~1832°F | ±(2.0%+3) |
| Bandwidth | 40~1KHz | |
| Fuse Protection | mA: F600mA/250V fuse 10A: F10A/250V fuse |
|
1 x KM601s Multimeter
2 x Test Leads
1 x Thermocouple
1 x Durable EVA Bag
1 x Charging Cable
1 x User Manual
Package Lists
1 x KM601s Multimeter
2 x Test Leads
1 x Thermocouple
1 x Durable EVA Bag
1 x Charging Cable
1 x User Manual
KM601S Digital Multimeter
Safe & Reliable
CAT.III 1000V, CAT.IV 600V overvoltage safety standards and pollution level 2. Anti-Burn with double fuses. Overload protection on all ranges.
NCV
There is an NCV induction plate between the charging port and the power switch. Align the NCV with the live wire receptacle or wire. You can use it to detect possible voltages.
Built-in Flash Light
When there is no light or the environment is dark. Just turn on the flash to continue your inspection. The bright display also allows for better readings.

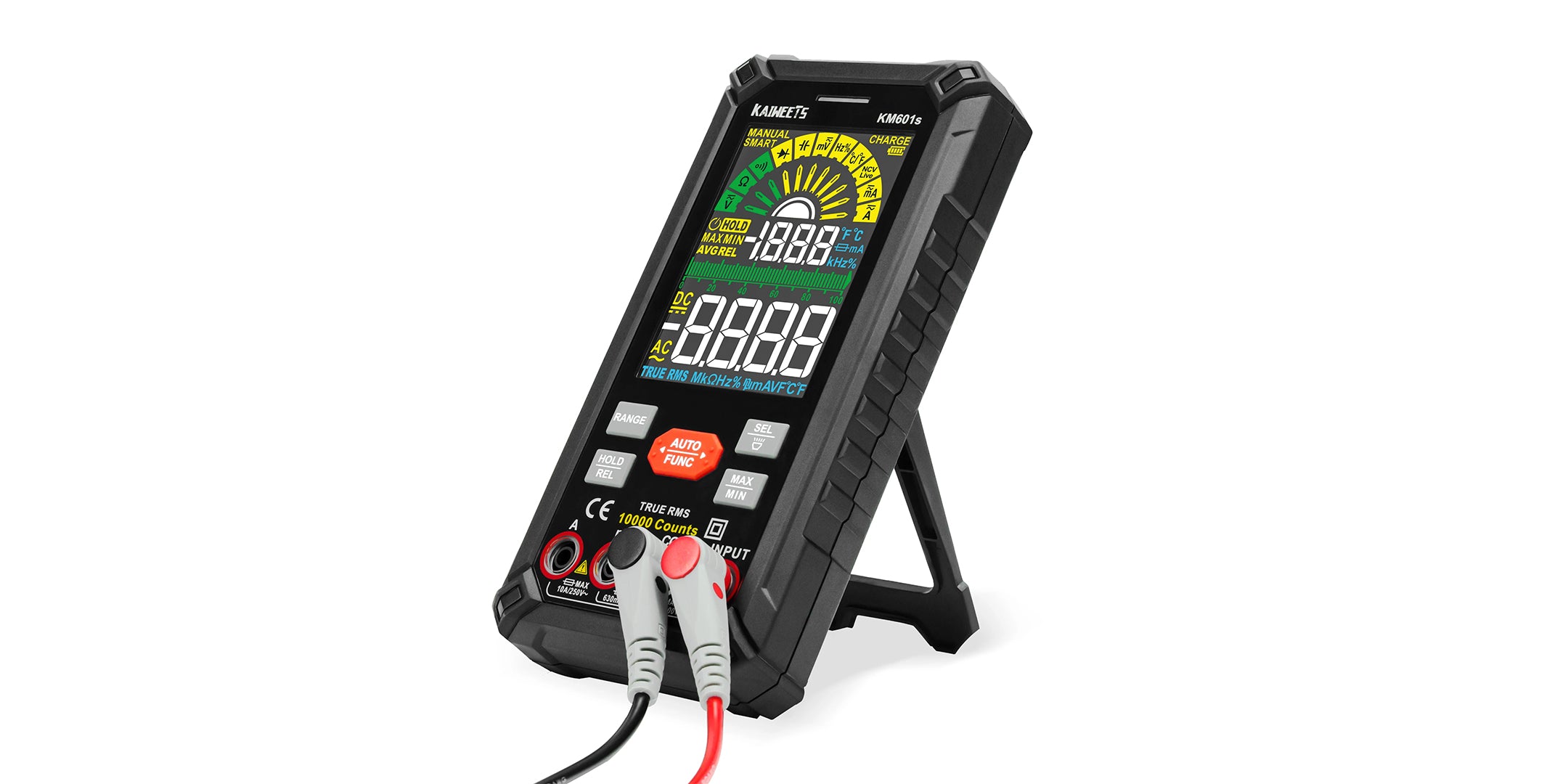

Back Bracket
A new bracket has been added to the back of the meter. Let you use and read more conveniently.
Automatic Power Off
Without any operation in about 15 minutes, the multimeter will automatically shut down. Save the power of the multimeter and use it for a longer period of time.

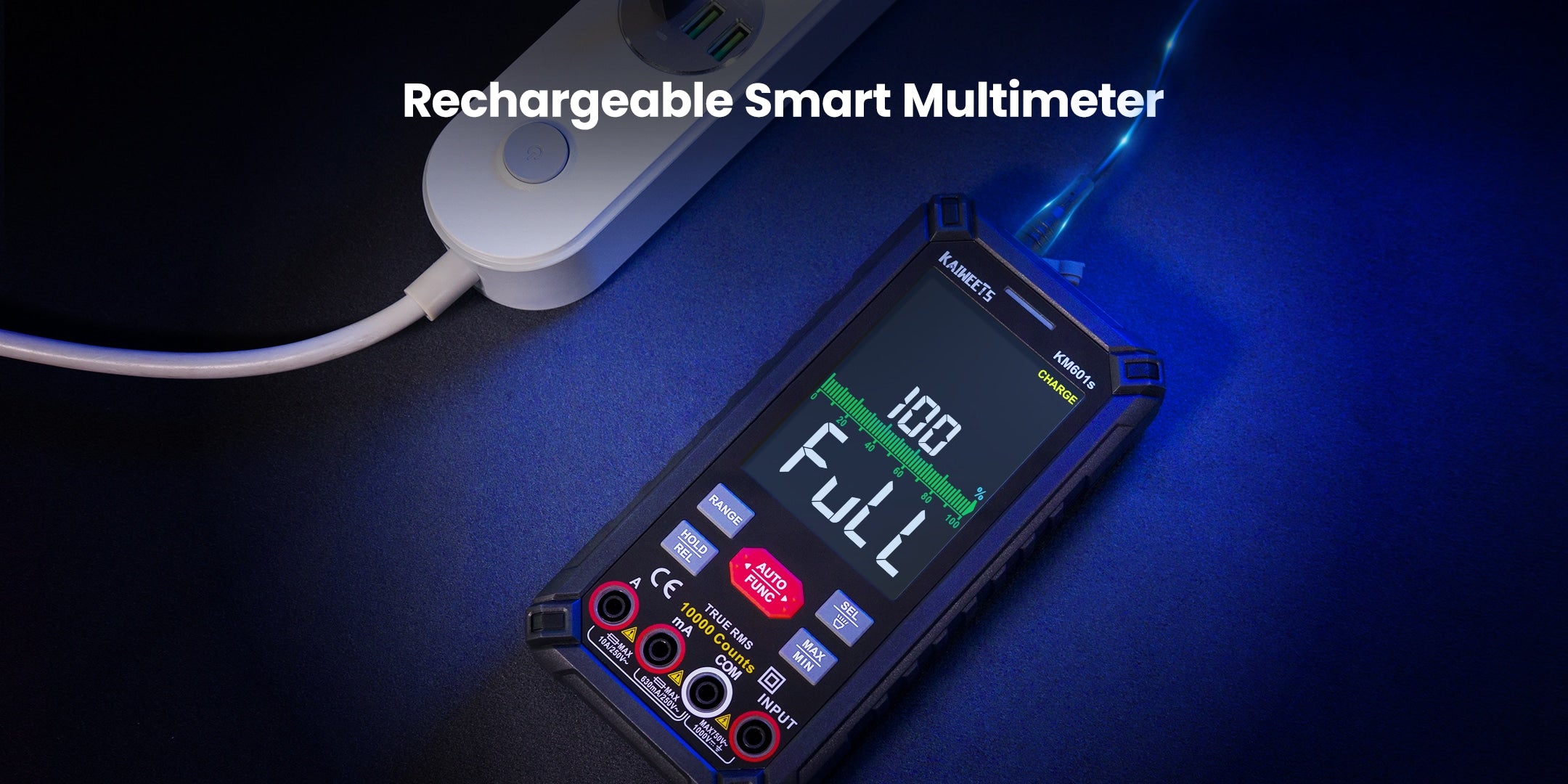

Rechargeable
Comes with a 5V DC charging port. You can recharge it repeatedly. Built-in 1200mAH battery. Let the multimeter last longer. Let you no longer need to manually replace the battery.
