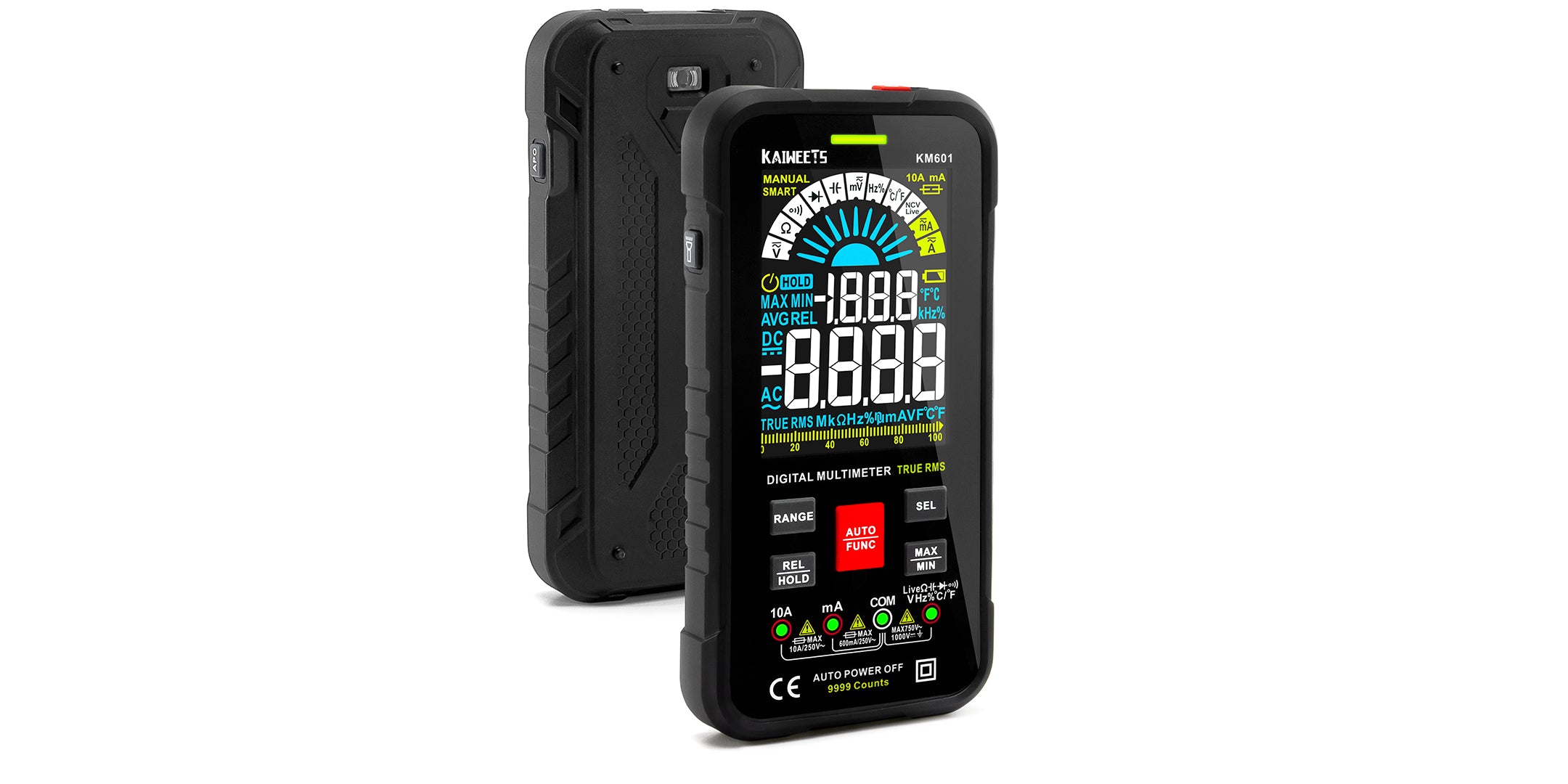

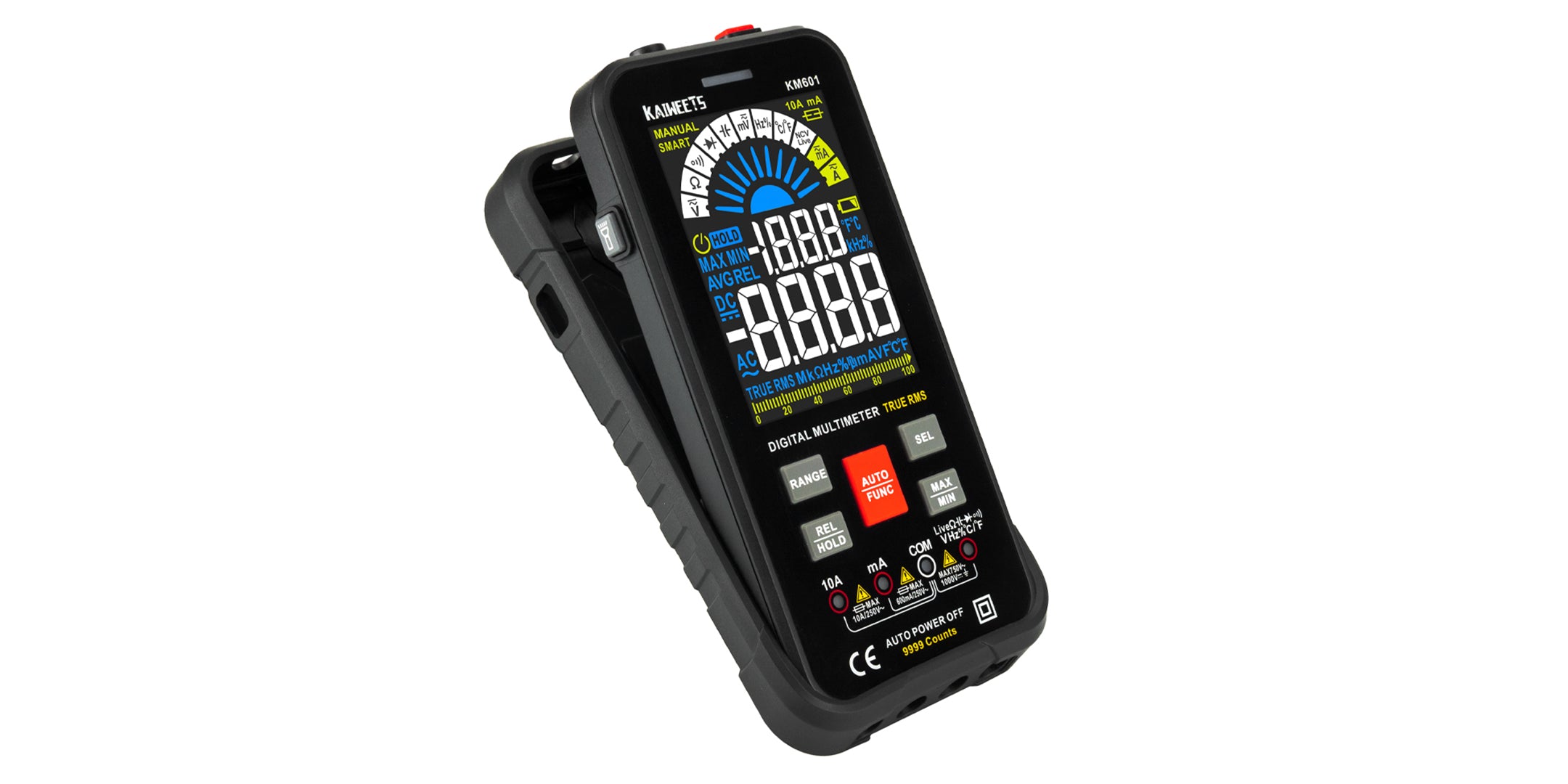

KAIWEETS KM601 True-RMS Smart Digital Multimeter
3-7 Business Days to America and Europe.
15-30 Business Days to Other Areas.
30-Day No-Hassle Returns & 3-Year Warranty
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.
Smart Mode: KM601 multimeter defaults to Smart Mode. In Smart Mode, the meter can test automatically voltage, resistance, and continuity. It can identify fast the measurement content and selects the range with the best resolution, you don’t need to do anything extra!
Upgraded Display: The voltmeter with a large LCD color screen, and flashlight for easy reading even in bright or dim places. And the voltmeter can display an analog bar, real-time temperature, low battery prompt, and damaged fuse prompt.
Multiple Functions: KAIWEETS digital multimeter KM601 can accurately measure AC/DC voltage, AC/DC current, and 10A current, and can also be used to test continuity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire. With this smart digital voltmeter, you can solve industrial, vehicle, and household electrical problems.
Ensure Safety:
(1) The multimeter is certified with CE and RoHS.
(2) The design and manufacture of the instrument strictly comply with IEC61010-1 CAT III 1000V, CAT IV 600V overvoltage safety standards, and pollution level two.
(3) The silicone cover can protect the multimeter from wear and electric shock.
(4) The dual ceramic fuses, which have anti-burn and overload protection functions, can effectively protect the multimeter.
Quality Service: KAIWEETS provides free shipping, 30 days return, 3-year after-sales service, and lifetime technical support for this item.
Description
Smart Mode: KM601 multimeter defaults to Smart Mode. In Smart Mode, the meter can test automatically voltage, resistance, and continuity. It can identify fast the measurement content and selects the range with the best resolution, you don’t need to do anything extra!
Upgraded Display: The voltmeter with a large LCD color screen, and flashlight for easy reading even in bright or dim places. And the voltmeter can display an analog bar, real-time temperature, low battery prompt, and damaged fuse prompt.
Multiple Functions: KAIWEETS digital multimeter KM601 can accurately measure AC/DC voltage, AC/DC current, and 10A current, and can also be used to test continuity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire. With this smart digital voltmeter, you can solve industrial, vehicle, and household electrical problems.
Ensure Safety:
(1) The multimeter is certified with CE and RoHS.
(2) The design and manufacture of the instrument strictly comply with IEC61010-1 CAT III 1000V, CAT IV 600V overvoltage safety standards, and pollution level two.
(3) The silicone cover can protect the multimeter from wear and electric shock.
(4) The dual ceramic fuses, which have anti-burn and overload protection functions, can effectively protect the multimeter.
Quality Service: KAIWEETS provides free shipping, 30 days return, 3-year after-sales service, and lifetime technical support for this item.
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 99.99mV/999.9mV/9.999V/99.9V/1000V | ±(0.5%+3) |
| AC Voltage | 99.99mV/999.9mV/9.999V/99.9V/750V | ±(0.8%+3) |
| DC Current | 9.999mA/99.99mA/600mA | ±(0.8%+3) |
| 9.999A | ±(1.2%+3) | |
| AC Current | 9.999mA/99.99mA/600mA | ±(0.8%+3) |
| 9.999A | ±(1.2%+3) | |
| Resistance | 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ | ±(0.8%+3) |
| 9.999MΩ/99.99MΩ | ±(1.2%+3) | |
| Capacitance | 9.999nF/99.99nF/999.9nF/9999uF/99.99uF/999.9uF | ±(4.0%+3) |
| 9.999mF/99.99mF | ±(5.0%+5) | |
| Frequency | 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz | ±(1.0%+3) |
| Duty | 1.0%~99.0% | ±(1.0%+3) |
| Temperature | -40°C-1000°C | ±(1.0%+3) | -40°F~1832°F | ±(1.0%+3) |
Parameters
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 99.99mV/999.9mV/9.999V/99.9V/1000V | ±(0.5%+3) |
| AC Voltage | 99.99mV/999.9mV/9.999V/99.9V/750V | ±(0.8%+3) |
| DC Current | 9.999mA/99.99mA/600mA | ±(0.8%+3) |
| 9.999A | ±(1.2%+3) | |
| AC Current | 9.999mA/99.99mA/600mA | ±(0.8%+3) |
| 9.999A | ±(1.2%+3) | |
| Resistance | 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ | ±(0.8%+3) |
| 9.999MΩ/99.99MΩ | ±(1.2%+3) | |
| Capacitance | 9.999nF/99.99nF/999.9nF/9999uF/99.99uF/999.9uF | ±(4.0%+3) |
| 9.999mF/99.99mF | ±(5.0%+5) | |
| Frequency | 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz | ±(1.0%+3) |
| Duty | 1.0%~99.0% | ±(1.0%+3) |
| Temperature | -40°C-1000°C | ±(1.0%+3) | -40°F~1832°F | ±(1.0%+3) |
1 x KM601 Smart Multimeter
2 x Test Leads
1 x User Manual
1 x Thermocouple
6 x AAA Batteries
1 x Durable EVA Bag
Package List
1 x KM601 Smart Multimeter
2 x Test Leads
1 x User Manual
1 x Thermocouple
6 x AAA Batteries
1 x Durable EVA Bag
Manuals Downloads
- KM601 USER MANUAL
- Download
- PATENT CERTIFICATE
- → CE EMC-Certificate
- → Test Report
In the SMART mode, the Meter can test DC voltage, AC voltage, resistance, continuity. Press 'FUNC' button to switch measurement function.
In the SMART mode, the Meter can test DC voltage, AC voltage, resistance, continuity. Press 'FUNC' button to switch measurement function.
The light above the corresponding jack will flash intelligently to help you insert the test leads.
The light above the corresponding jack will flash intelligently to help you insert the test leads.
Error Reminder
If the test leads are connected wrongly during the mA testing, the red indicator light will be lit up and the screen will display the "LEAD" signal.
Auto-Lock
mA test function cannot be switched after the test leads are connected firmly.
Error Reminder
If the test leads are connected wrongly during the mA testing, the red indicator light will be lit up and the screen will display the "LEAD" signal.
Auto-Lock
mA test function cannot be switched after the test leads are connected firmly.
It can be used to test continuity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire.
It can be used to test continuity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire.
Fuse Blown Reminder
Our KM601 multimeter has fuse overload protection (do not exceed 1000V). CAT.III 1000V, CAT.IV 600V overvoltage safety standards and pollution level 2.
Temperature Measurement
Kaiweets KM601 also has a real-time temperature display. Test liquid temperature from -40°F ~ +1832°F/-40°C ~ +1000°C.
Fuse Blown Reminder
Our KM601 multimeter has fuse overload protection (do not exceed 1000V). CAT.III 1000V, CAT.IV 600V overvoltage safety standards and pollution level 2.
Temperature Measurement
Kaiweets KM601 also has a real-time temperature display. Test liquid temperature from -40°F ~ +1832°F/-40°C ~ +1000°C.
Larger display screen - 3.54 inch, KM601 smart multimeter is designed to portable size (total 6.5 inches) for easy carrying.
The built-in flashlight is a great touch and the big lighted display is easy on the eyes.
Larger display screen - 3.54 inch, KM601 smart multimeter is designed to portable size (total 6.5 inches) for easy carrying.
The built-in flashlight is a great touch and the big lighted display is easy on the eyes.
If the fuse blows due to improper use of the product, please refer to the installation tutorial example in the picture.
If the fuse blows due to improper use of the product, please refer to the installation tutorial example in the picture.
