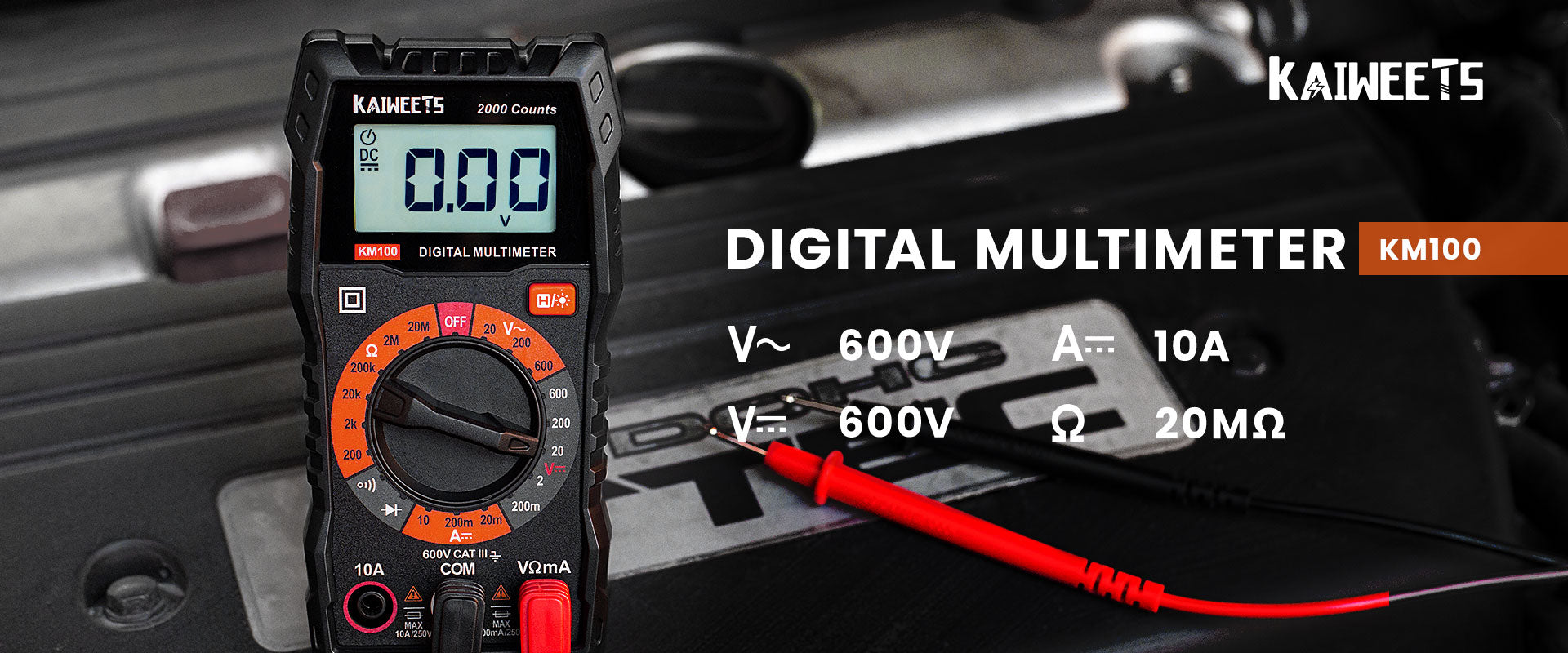

KAIWEETS KM100 Digital Multimeter
Exclusive 15% Off Code: KW15
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.
Multi-Function: This multimeter can test AC/DC Voltage, DC current (Can not for AC current), Resistance, Continuity, and Diode Measurement.
Sensitive Test: Please make sure the rotary switch is located at the right test range. The data hold function, backlight function helps you test clearly and quickly in a dim place.
Safety Operation: IEC Rated CAT III 600V, CE, and RoHS certified. Anti-Burn with double fuses. This multimeter has overload protection on all ranges.
Widely Used: The Digital Multimeter is designed to be safe and accurate, and suitable for electrician tests, household use, automotive, and industrial electrical problems.
Specifications | Range | Accuracy |
---|---|---|
DC Voltage | 200mV/2V/20V/200V/600V | ±(1.0%+5) |
AC Voltage | 20V/200V/600V | ±(1.0%+5) |
DC Current | 20mA/200mA | ±(1.5%+5) |
10A | ±(1.5%+5) | |
Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ | ±(1.2%+5) |
- SPECIFICATION
- Item Weight
- 0.13 KG
- Product Dimensions
- 5.04 x 2.64 x 1.42 inches
- Batteries
- 2 AAA batteries required(included)
- Material
- ABS
- Upgraded Specification
-
● DC Voltage: 200mV/2V/20V/200V/600V
● AC Voltage: 20V/200V/600V
● DC Current: 20mA/200mA/10A
● Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Multi-Function
Test AC/DC Voltage, DC current Resistance, Continuity, and Diode Measurement.
(cannot test AC current)
Accuracy
AC Voltage: 20V/200V/600V ±(1.0%+5)
DC Voltage: 200mV/2V/20V/200V/600V ±(1.0% +5)
DC Current: 20mA/200mA/10A ±(1.5%+5)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(1.2%+5)
Backlight Function
Helps you test clearly in any dark conditions.
Safety
CAT III 600V, CE, and RoHS certified. Anti-Burn with double fuses. Overload protection on all ranges.
Support Stand
Flexible and Stable. It can be adjusted freely within 90°.
Hold Function
Helps you record the measurement value by one-key locking the reading.
What Do You Get?
1x KAIWEETS KM100 Digital Multimeter
2x Test Leads
2 x 1.5V AAA batteries
1x Multimeter Bag
1x Instruction Manual
