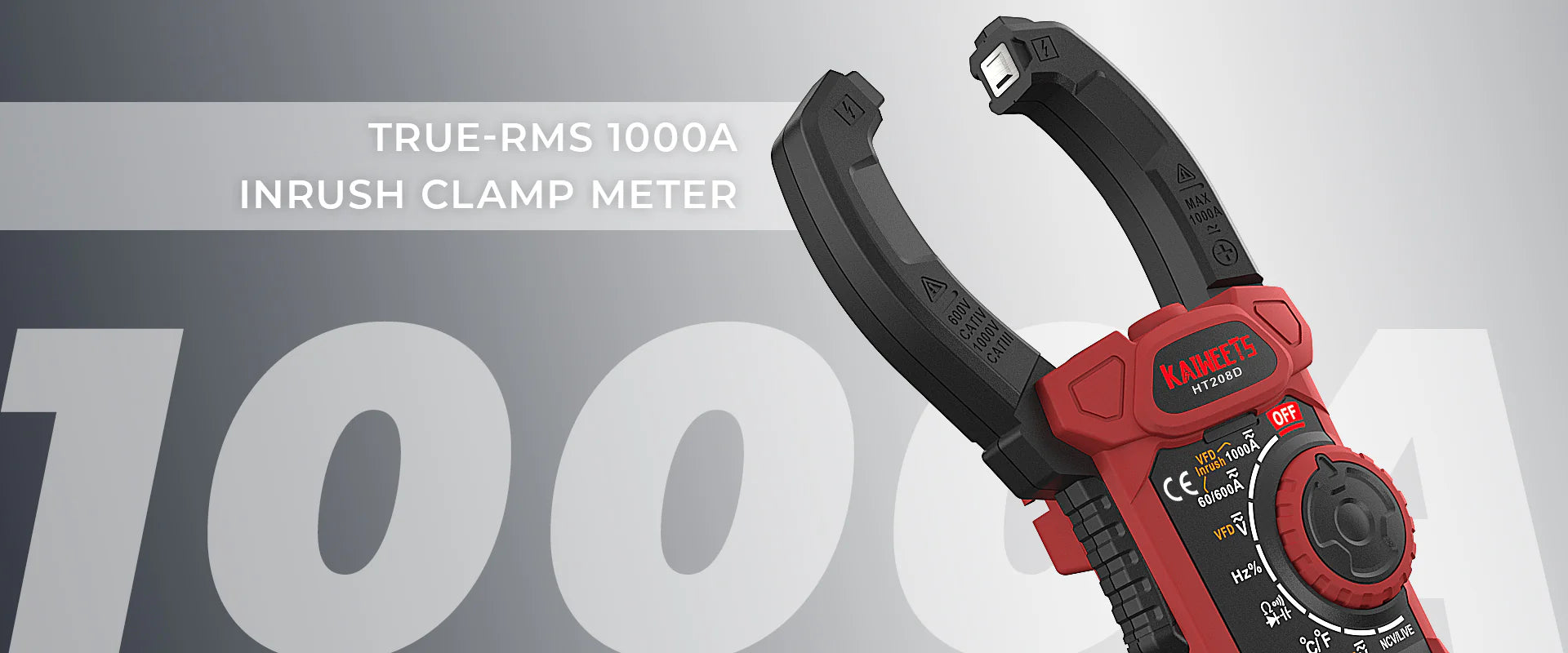

KAIWEETS HT208D 1000A AC/DC Inrush Clamp Meter
5-7 Business Days to America and Europe.
15-30 Business Days to Other Areas.
30-Day No-Hassle Returns & 3-Year Warranty
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.
True-RMS Clamp Meter: This clamp meter can accurately measure 1000 Amp AC/DC Current, 1000V DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature. Easy to use for labs factories and households.
Inrush Current Meter: Knowing the value of inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of the inrush current is about 100ms. When the current is greater than 10A, the Inrush function works well. The inrush function is only available in AC mode, DC current does not have the inrush function.
NCV Detection & LED Flashlight: Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient LED flashlight illuminates a dimly lit area.
Advanced Functions: The Inrush Clamp Meter has Variable Frequency Drive Filtering (VFD) and low Input Impedance (LoZ) modes, which can provide higher accuracy readings.
Safety Service: Safety standard IEC 61010-1, CAT IV 600V, CAT III 1000V. Double insulation. Use high-quality material, to prevent electric shock harm. 36-Month product service provided. 7/24 Customer Service.
Description
True-RMS Clamp Meter: This clamp meter can accurately measure 1000 Amp AC/DC Current, 1000V DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature. Easy to use for labs factories and households.
Inrush Current Meter: Knowing the value of inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of the inrush current is about 100ms. When the current is greater than 10A, the Inrush function works well. The inrush function is only available in AC mode, DC current does not have the inrush function.
NCV Detection & LED Flashlight: Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient LED flashlight illuminates a dimly lit area.
Advanced Functions: The Inrush Clamp Meter has Variable Frequency Drive Filtering (VFD) and low Input Impedance (LoZ) modes, which can provide higher accuracy readings.
Safety Service: Safety standard IEC 61010-1, CAT IV 600V, CAT III 1000V. Double insulation. Use high-quality material, to prevent electric shock harm. 36-Month product service provided. 7/24 Customer Service.
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+3) |
| AC Voltage | 600mV/6V/60V/600V/750V | ±(0.8%+3) |
| DC Current | 60A/600A/1000A | ±(2.5%+5) |
| AC Current | 60A/600A/1000A | ±(2.5%+5) |
| Resistance | 600Ω/6kΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(0.8%+3) |
| Capacitance | 10nF/100nF/1μF/10uF/100uF/1mF/10mF/100mF | ±(3.0%+3) |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+5) |
| Duty | 1%~99% | ±(1.0%+2) |
| Temperature | -40°C-1000°C | ±(1.0%+2) |
| -40°F~1832°F | ±(1.0%+2) | |
| Counts | 6000 | |
Parameters
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+3) |
| AC Voltage | 600mV/6V/60V/600V/750V | ±(0.8%+3) |
| DC Current | 60A/600A/1000A | ±(2.5%+5) |
| AC Current | 60A/600A/1000A | ±(2.5%+5) |
| Resistance | 600Ω/6kΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(0.8%+3) |
| Capacitance | 10nF/100nF/1μF/10uF/100uF/1mF/10mF/100mF | ±(3.0%+3) |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+5) |
| Duty | 1%~99% | ±(1.0%+2) |
| Temperature | -40°C-1000°C | ±(1.0%+2) |
| -40°F~1832°F | ±(1.0%+2) | |
| Counts | 6000 | |
1 x HT208D Digital Clamp Meter
2 x Test Leads
1 x Thermocouples
1 x User Manual
3 x AAA Battery
1 x Durable EVA Bag
Package Lists
1 x HT208D Digital Clamp Meter
2 x Test Leads
1 x Thermocouples
1 x User Manual
3 x AAA Battery
1 x Durable EVA Bag
Manuals Downloads
- USER MANUAL
- Download
- PATENT CERTIFICATE
- → CE EMC-Certificate
- → LD01-Certificate
This clamp Meter can accurately measure 1000 Amp AC/DC Current, 1000V AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature. Easy to use for labs, factories, and households.
This clamp Meter can accurately measure 1000 Amp AC/DC Current, 1000V AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature. Easy to use for labs, factories, and households.
KAIWEETS HT208D Clamp Meter can be a perfect choice for car service workshops or other places with difficult environmental conditions. It has basic functions which enable the measurement of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, and inrush current.
KAIWEETS HT208D Clamp Meter can be a perfect choice for car service workshops or other places with difficult environmental conditions. It has basic functions which enable the measurement of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, and inrush current.
Knowing the value of inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of the inrush current is about 100ms.
Knowing the value of inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of the inrush current is about 100ms.
Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient LED flashlight illuminates a dimly lit area.
Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient LED flashlight illuminates a dimly lit area.
Accurately measure resistance, capacitance, diode, and continuity. Easy to use in laboratory factories and homes.
RAN Function: Switches to manual mode and cycles through all ranges. Auto-ranging is restored when pressed for two seconds.
AC/DC Voltage Test: Use the test leads to get the reading quickly and accurately. (Max 1000V).
Accurately measure resistance, capacitance, diode, and continuity. Easy to use in laboratory factories and homes.
RAN Function: Switches to manual mode and cycles through all ranges. Auto-ranging is restored when pressed for two seconds.
AC/DC Voltage Test: Use the test leads to get the reading quickly and accurately. (Max 1000V).
1 x KAIWEETS Digital Clamp Meter
2 x Test Leads
1 x K-Type Thermocouples
3 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Clamp Meter Bag
1 x Packing Box
1 x KAIWEETS Digital Clamp Meter
2 x Test Leads
1 x K-Type Thermocouples
3 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Clamp Meter Bag
1 x Packing Box
