KAIWEETS HT208D Inrush Clamp Meter T-RMS 6000 Counts for AC/DC
Fraud Prevention: Your Payment is Safe & Secure.
True-RMS Clamp Meter: This multimeter can accurately measure 100 Amp AC/DC Current, 1000V AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature. Easy to use for Labs, factories, and households.
Inrush Current Meter: Knowing the value of inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of the inrush current is about 100ms. When the current is greater than 10A, the Inrush function works well.
Advanced Functions: The Clamp Meter has Variable Frequency Drive Filtering (VFD) and low Input Impedance (LoZ) modes, which can provide higher accuracy readings.
NCV Detection & LED Flashlight: Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient LED flashlight illuminates a dimly lit area.

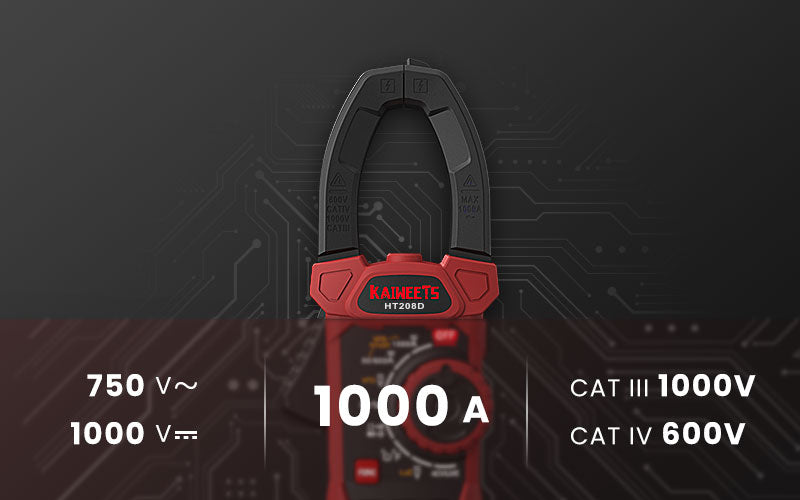

Safety: Safety standard IEC 61010-1, CAT IV 600V, CAT III 1000V. Double insulation. Use high-quality material, to prevent electric shock harm.
- USER MANUAL
- Download
- PATENT CERTIFICATE
- → CE EMC-Certificate
- → LD01-Certificate
- SPECIFICATION
- Item Weight
- 0.70 KG
- Product Dimensions
- 10 x 3.5 x 2 inches
- Batteries
- 3 AAA batteries required(included)

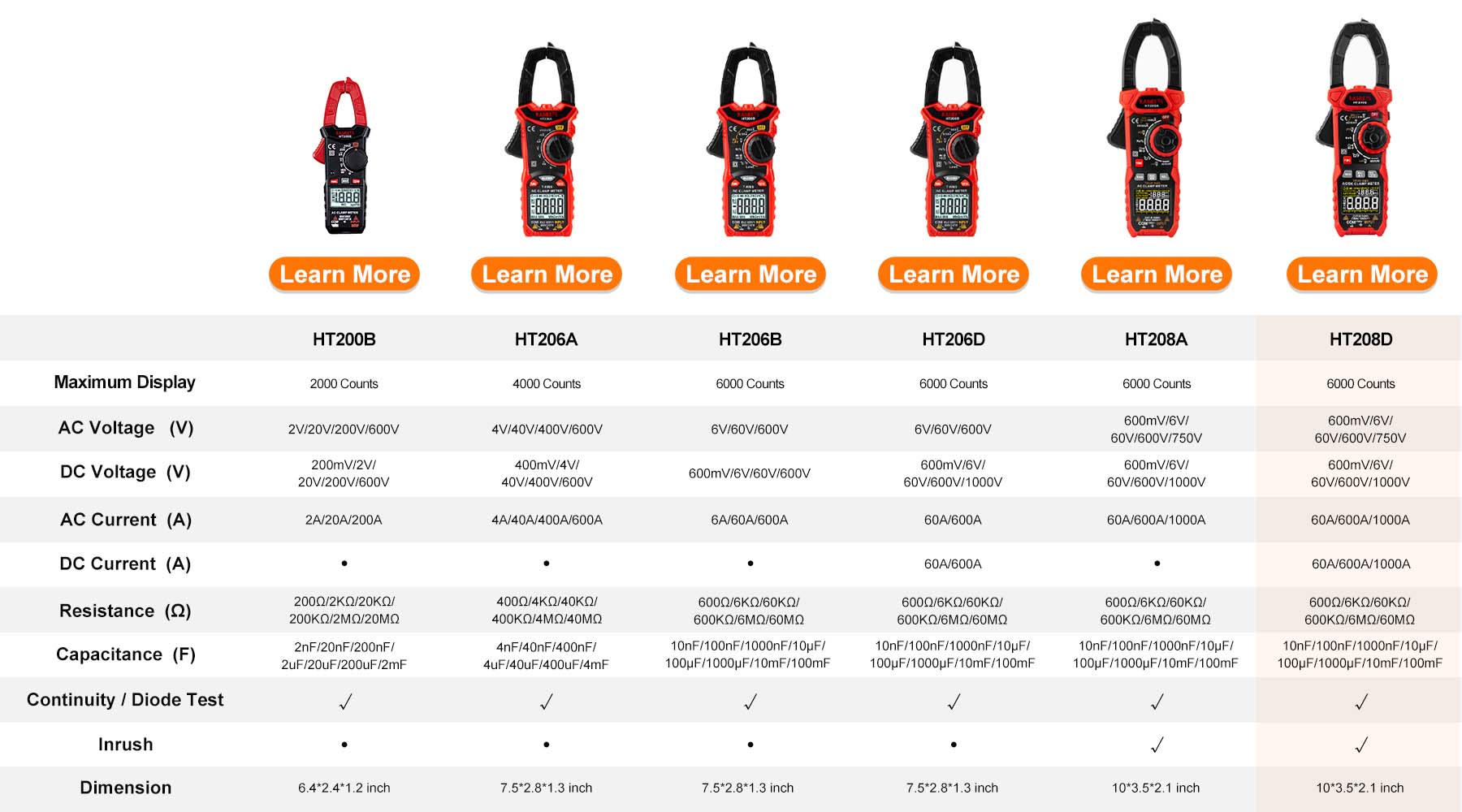

- Upgraded Specification
-
● DC Voltage: 600mV/6V/60V/600V/1000V
● AC Voltage: 600mV/6V60V/600V/750V
● DC Current: 60A/600A/1000A
● AC Current: 60A/600A/1000A
● Resistance: 600Ω/6kΩ/60kΩ/600kΩ/ 6MΩ/60MΩ
● Capacitance: 10nF/100nF/1000nF/10uF/ 100uF/1000uF/10mF/100mF
Kaiweets
True-RMS Clamp Meter
This clamp Meter can accurately measure 1000 Amp AC/DC Current, 1000V AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature. Easy to use for labs, factories, and households.
Kaiweets

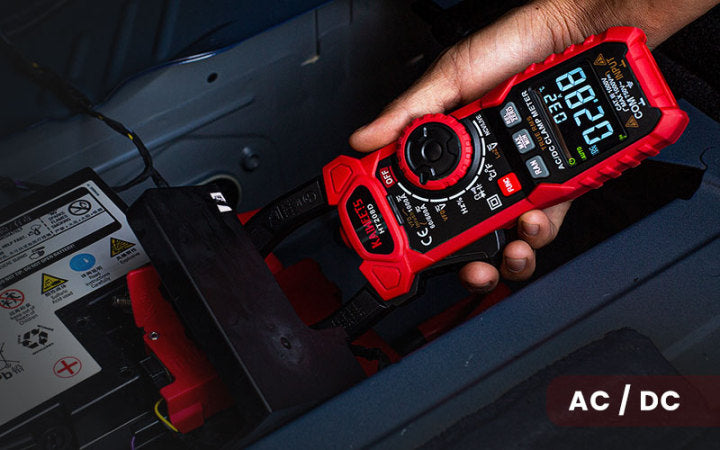

Perfect Choice for Car Service
KAIWEETS HT208D Clamp Meter can be a perfect choice for car service workshops or other places with difficult environmental conditions. It has basic functions which enable the measurement of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, and inrush current.
Kaiweets

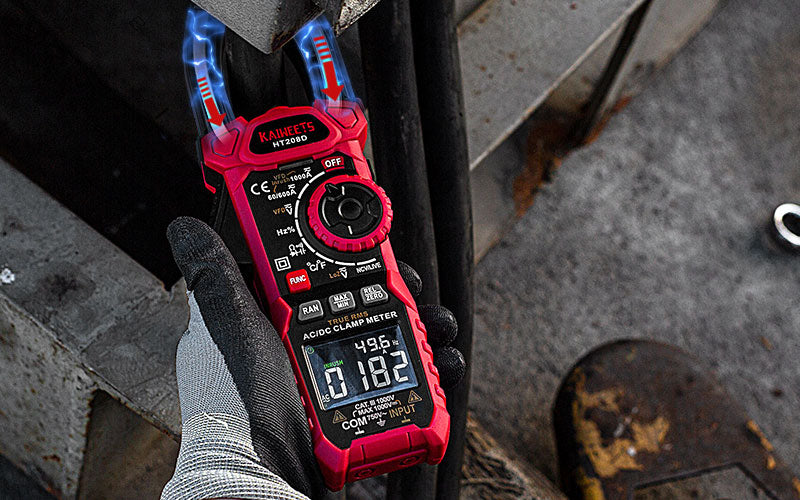

Inrush Function
Knowing the value of inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of the inrush current is about 100ms.
Kaiweets
NCV Detection & LED Flashlight
Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient LED flashlight illuminates a dimly lit area.
Kaiweets
Multi-Function
Accurately measure resistance, capacitance, diode, and continuity. Easy to use in laboratory factories and homes.
RAN Function: Switches to manual mode and cycles through all ranges. Auto-ranging is restored when pressed for two seconds.
AC/DC Voltage Test: Use the test leads to get the reading quickly and accurately. (Max 1000V).
kaiweets

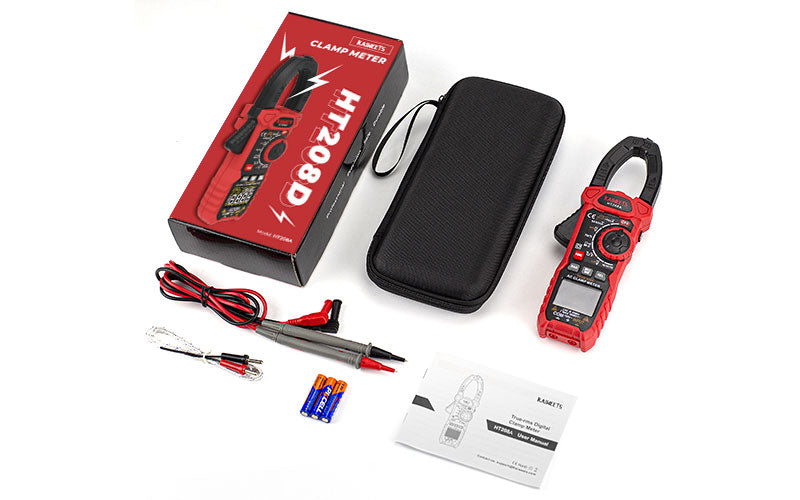

What Do You Get?
1 x KAIWEETS Digital Clamp Meter
2 x Test Leads
1 x K-Type Thermocouples
3 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Clamp Meter Bag
1 x Packing Box
