KAIWEETS ST500Y Auto-ranging AC/DC Smart Digital Multimeter - 6000 Counts
Fraud Prevention: Your Payment is Safe & Secure.
Safety First: This device is IEC CAT IV 600V rated, CE, and RoHS compliant. For further protection, the equipment is packaged in a semi-hard zipped case.

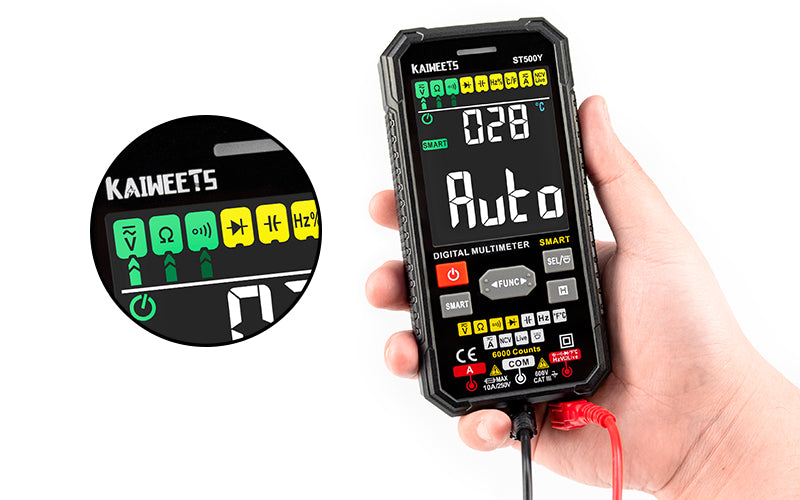

Automatic Mode: It has an 'auto' mode that enables it to automatically detect and respond to the most frequent measures, such as Volts AC or DC, resistance, or continuity. A blinking green light tells precisely where to connect the probes to the probe ports.
Improved and Convenient: We have replaced the gear knob with two buttons so that you can operate this device similar to a smartphone. This meter allows for manual function selection to the left or right.
Multi-Function: The ST500Y multimeter measures up to 600V AC/DC voltage, 10A AC/DC current, and resistance of 60M Ohms. Additionally, the tester measures temperature, capacitance, frequency, duty cycle, wire on/off, diodes, and continuity.

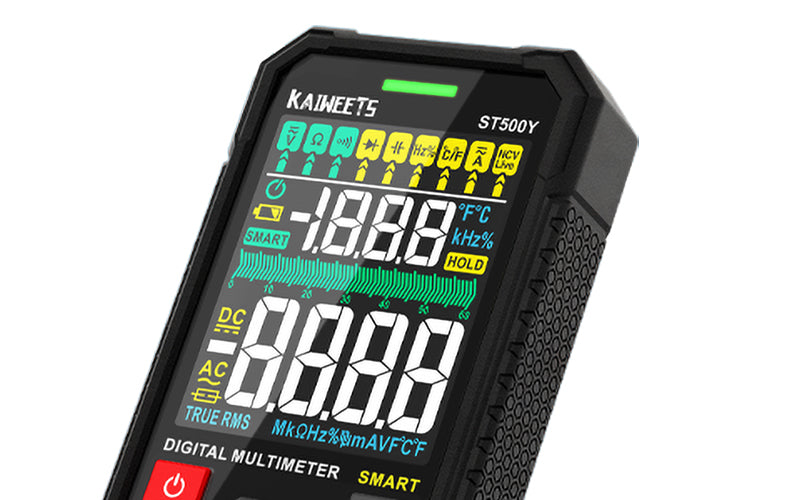

Flashlight & Backlight: The ST500Y meter has a large backlit display and a tiny LED light on the rear, which makes it easier to read and more energy efficient.
Related Blog: How to use a Multimeter
- USER MANUAL
- Download
- SPECIFICATION
- Item Weight
- 0.49 KG
- Package Dimensions
- 7.01 x 4.02 x 2.52 inches
- Batteries
- 4 AAA batteries required (included)
- Performance Description
- HD Color Display, True RMS
- Safety Level/Certification
- IEC CAT IV 600V rated, CE and RoHS compliant
- Usage
- ▲ Voltage tester
▲ Large range measuring tool
▲ Frequency multimeter
▲ Diode electronic tester
▲ Capacitance digital meter
▲ Ohm meter - Upgraded Specification
-
● DC Voltage: 600mV/6V/60V/600V±(0.5%+3)
● AC Voltage: 6V/60V/600V/750V±(0.8%+5)
● DC Current: 600mA/6A/10A ±(1.2%+3)
● AC Current: 600mA/6A/10A ±(1.2%+3)
● Resistance: 600/6k/60k/600kOHM ±(1.0%+5)

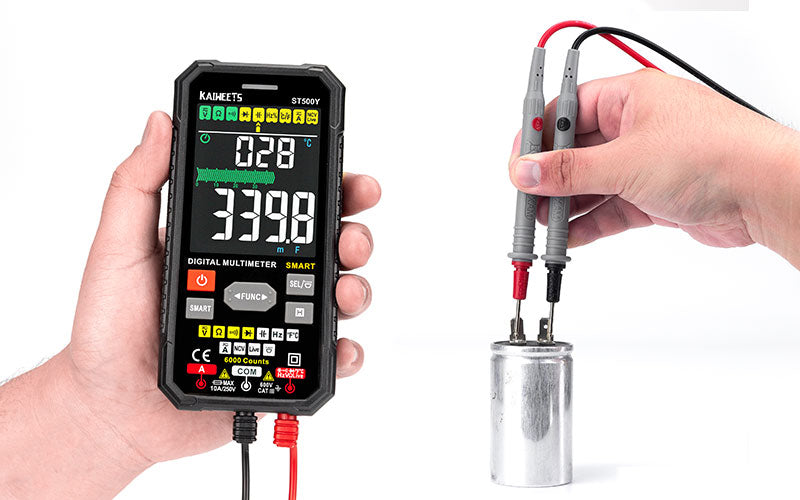

● Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF ±(4.0%+5); 6mF/60mF ±(5.0%+5)
● Frequency: 16Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0%+3)
● Duty: 1.0%-99.0% ±(1.0%+3)
● Temperature: -40~1000°C; -40-1832°F 2°C

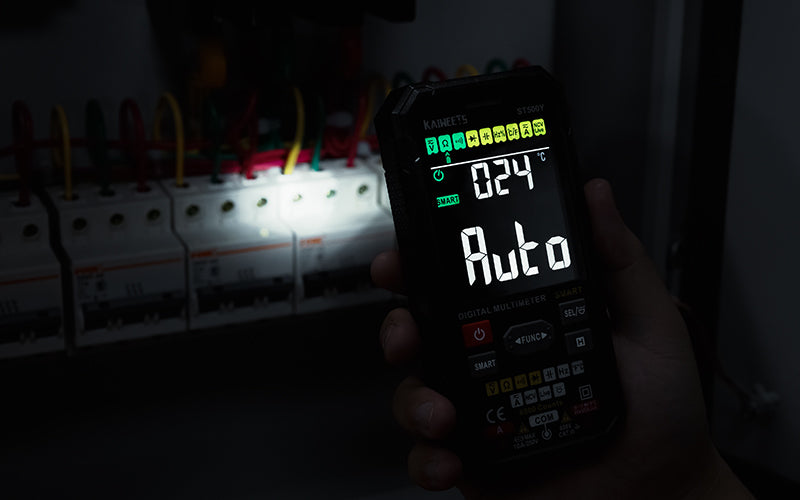

Smart & Manual Mode
A "smart" mode means it will automatically select the correct settings for the operation between volts (DC or AC), ohms, and continuity test.

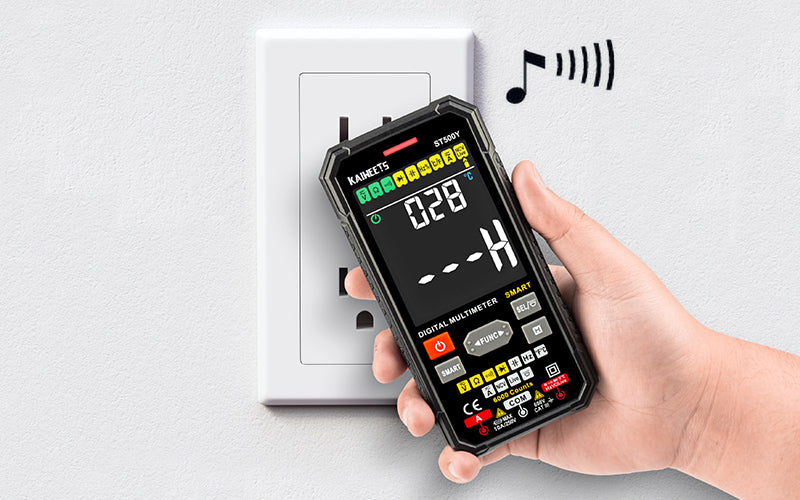

Non-contact Voltage Test
The meter has a sensitive NCV test for detecting continuity/ breaks in wires or proving a live terminal.
To get more specific, you can switch to the Live wire test, which acts as a voltage tester.
Easy to Read
The screen is bright enough and has high contrast, making it easy to see. In addition, the back is equipped with an LED light, so you can use it with confidence when working in the dark.
Multi-Function
There's the usual current, voltage, resistance, capacitance, diode testing, temperature, frequency, NCV/live wire, etc.
Auto-ranging/ TRMS / Data Hold/MAX MIN value / Auto power-off / Flashlight /Low battery indication/ Damaged fuse prompt.
Voltmeter Kit
IEC61010-1 CAT.III 600V overvoltage safety standards and pollution level 2. Overload protection on all ranges.
The decent leads with caps for both ends to keep them free from dust and dirt but also protect against being spiked unwittingly
Low Battery Indicator
The Low Battery Indicator is capable of reminding you of replacing the battery when it is about to run out.
Easy to use
Diverse test functions, simple operation, there are left and right buttons to select functions, and easy to use.

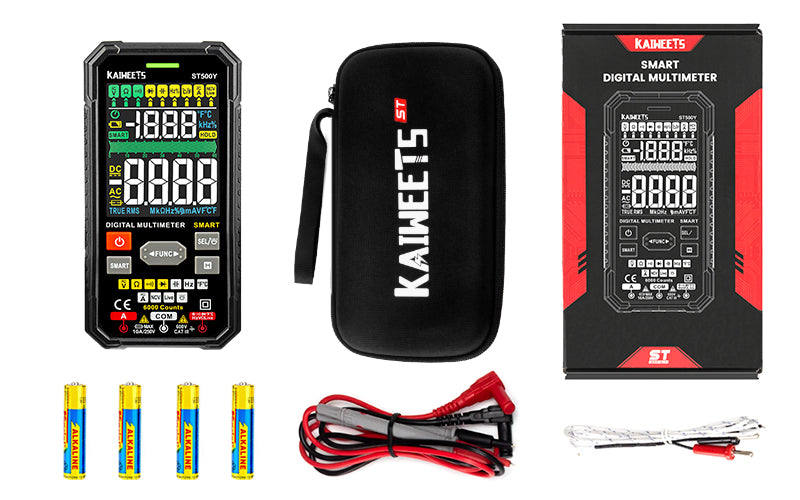

What Do You Get?
1 x KAIWEETS ST500Y Multimeter
1 x K-Type Thermocouple
2 x Test Leads
4 x 1.5V AAA Batteries (Assembly Required)
1 x User Manual
1 x Multimeter Bag
1 x Packing Box
