KAIWEETS LR100G Laser Receiver Compatible With KT360A
* 1
Fraud Prevention: Your Payment is Safe & Secure.
KAIWEETS LR100G Laser Receiver: Only compatible with KAIWEETS KT360A / KT360B which features pulse mode.
Working Under Strong Light: Detects laser lines in bright conditions, with a double-sided receiver for fast finding the centerline, distances up to 196ft/60m.
Dual-sided LED Indicators: Easy visual readout.
Adjustable Beeper: Beep sounds will remind you when you find the target. You can set the volume (LOUD / SOFT / MUTE).
Related Blog: Best Self Leveling Cross-Line Laser Level
| LR100G | Parameters |
|---|---|
| Dimension (L x W x H) | 132x68x26mm |
| Display | Dual LCD |
| Leveling Accuracy (High) | ≤ 2 mm |
| Leveling Accuracy (Low) | ≤ 3 mm |
| Working Distance (Line) | 30m |
| Laser Reception Window Width | 40 mm |
| Working Range | ≥ 50 m (typical) depend on light source |
| Bubble Vial Accuracy | 30'/2 mm |
| Operating Temperature Range | -10°C to +50°C |
| Storage Temperature Range | -25° C to +70° C |
| Auto Power Off (with No Signal Detected) |
10 min |
Working Under Strong Light
Detects laser lines in bright conditions, with a double-sided receiver for fast finding the centerline, distances up to 196ft/60m.
Level Indicator Bubbles & Precision Adjustment
Level Indicator Bubbles
Assist to quickly determining whether the laser receiver is horizontal.
High/Low Precision Adjustment
KAIWEETS laser receiver is easy to fit onto leveling staffs by using the mounting bracket. Determine the position of the light more accurately.
Upgrade Dual-Sided LED Display
LED display on the back; LED display on the front.
KAIWEETS LR100G laser receiver uses an LED display screen to provide a far better display panel in the prospective of eye safety, picture quality, and power consumption.
Adjustable Beeper
Beep sounds will remind you when you find the target. You can set the volume (LOUD / SOFT / MUTE)
Work with Green Beam Laser
Detects laser lines in bright conditions, with a double-sided receiver for fast finding the centerline, distances up to 196ft/60m.
Compatible with KAIWEETS KT360A / KT360B green laser level at pulse mode.
Didn't know what to expected but working really well with KT360A, use it in garden in day light when you can't really see laser and it was massive help
I use with 3D Laser Level Green, KAIWEETS and does the job over some big distances. Feels a little plastic and light weight, wouldn't want it to take any impact. But very impressive distance and accuracy is full daylight.

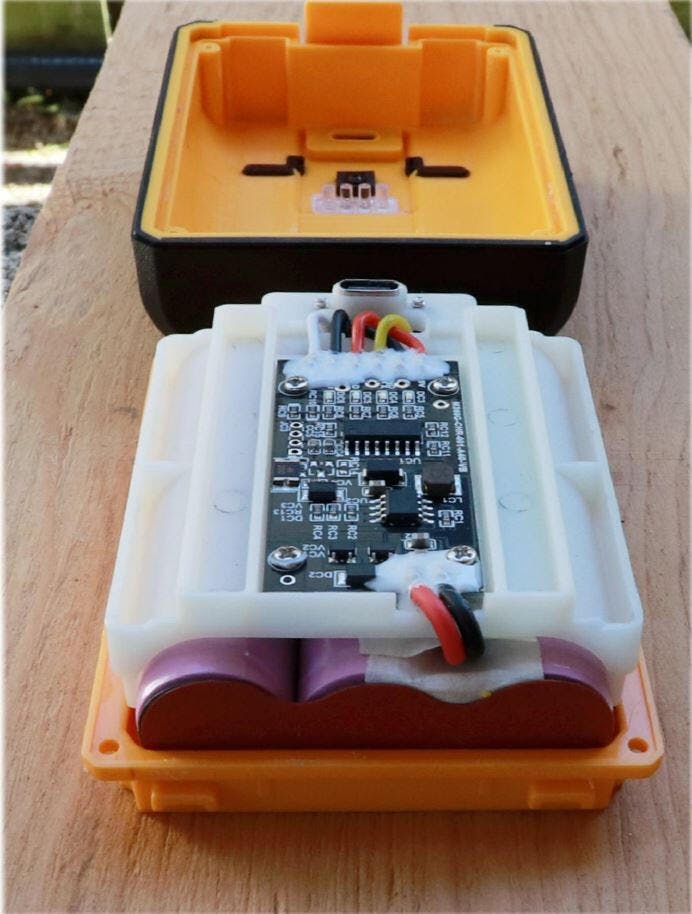

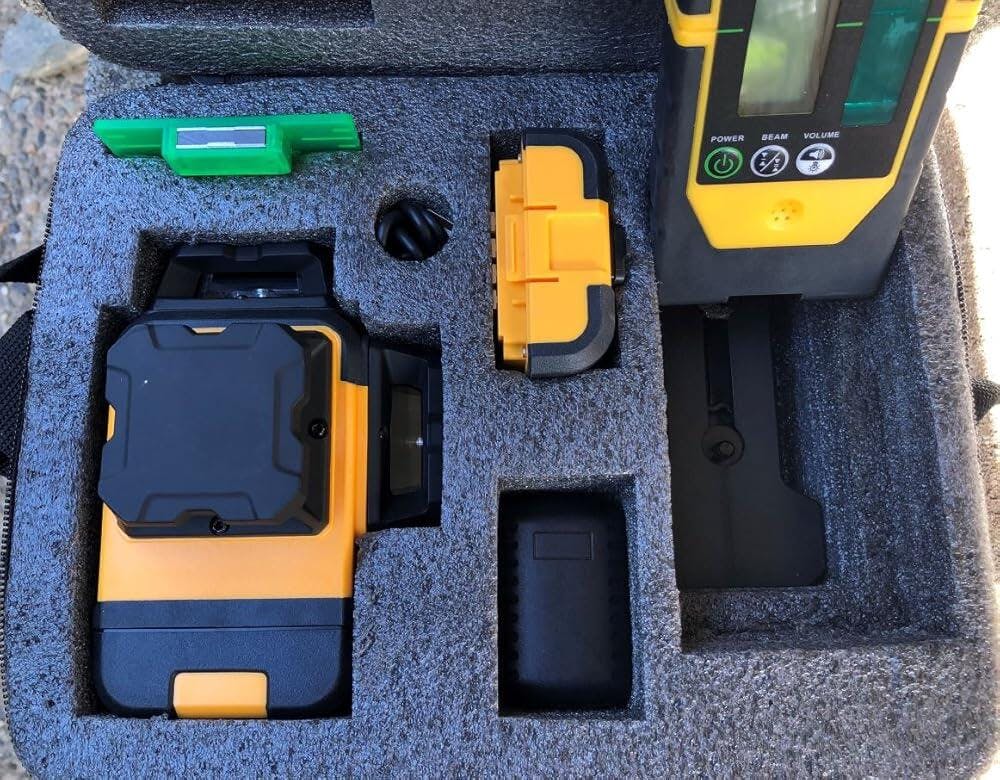

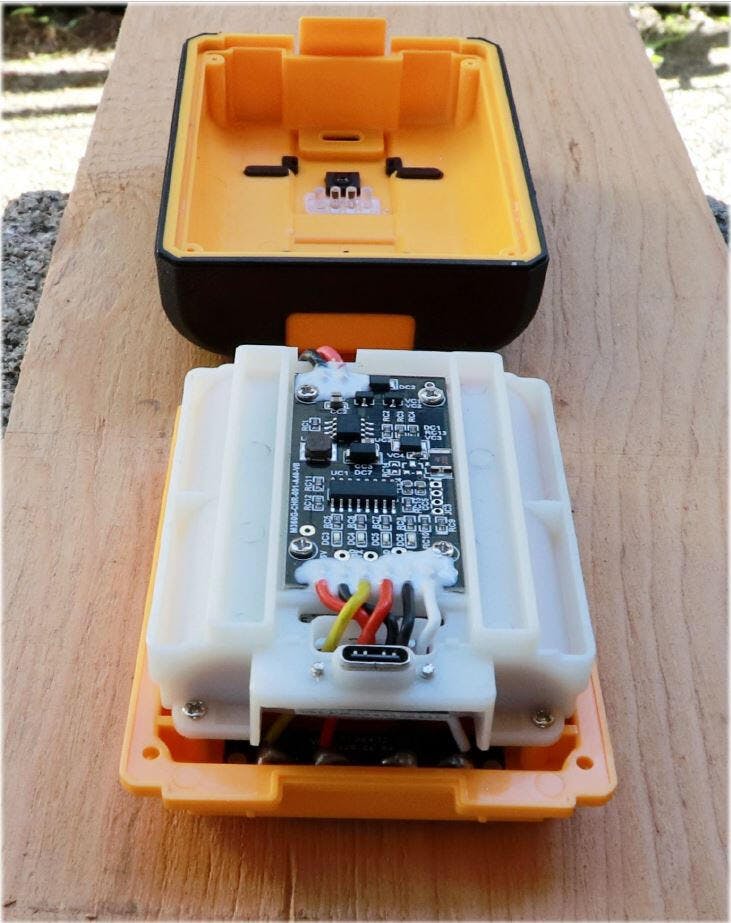

I used this to help with the assembly of a small outdoor deck. Since I'm realistic in the features of this budget 360 leveler, I'm not looking to calibrate the Hubble telescope. This will work great and greatly speed up my home DIY projects.I noticed that the 360 laser case was oversized so by applying my ninja Tetris skills along with a fresh blade on the box cutter, was able to create compartments to safely house the LR100G detector as well as the pole mount.The case foam is glue layered, making it fairly easy to shape the new openings. Beneath the laser base cavity is a foam plug which was easily removed. You can now lower the laser base even further. Cut a larger opening above it for the LR100G...ergo, a double decker, cavity.The 360 laser foam lid is just thick enough to carve out an shaped indentation to fit the LR100G pole mount. Save a layer of the cut out foam to layer between the LR100G and the mount so nothing gets scratched when the lid is zippered close (or find a pocket size bubble pouch, or microfiber fleece).You now have one big happy tote for the whole package.side note: The battery pack consist of soldered-in 3x 18650. The battery case did not appear plastic welded, thus was fairly easy to disassemble.
