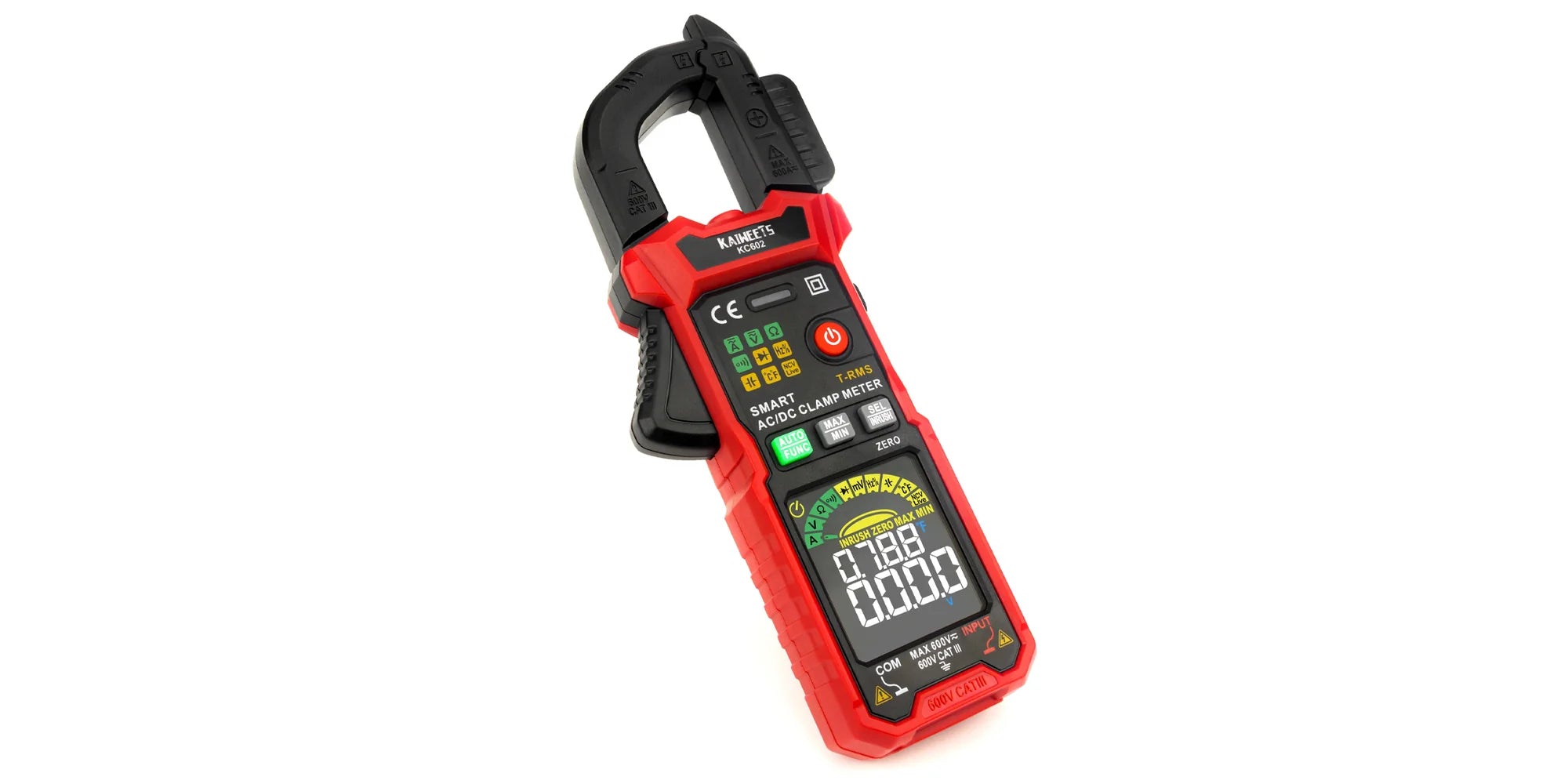

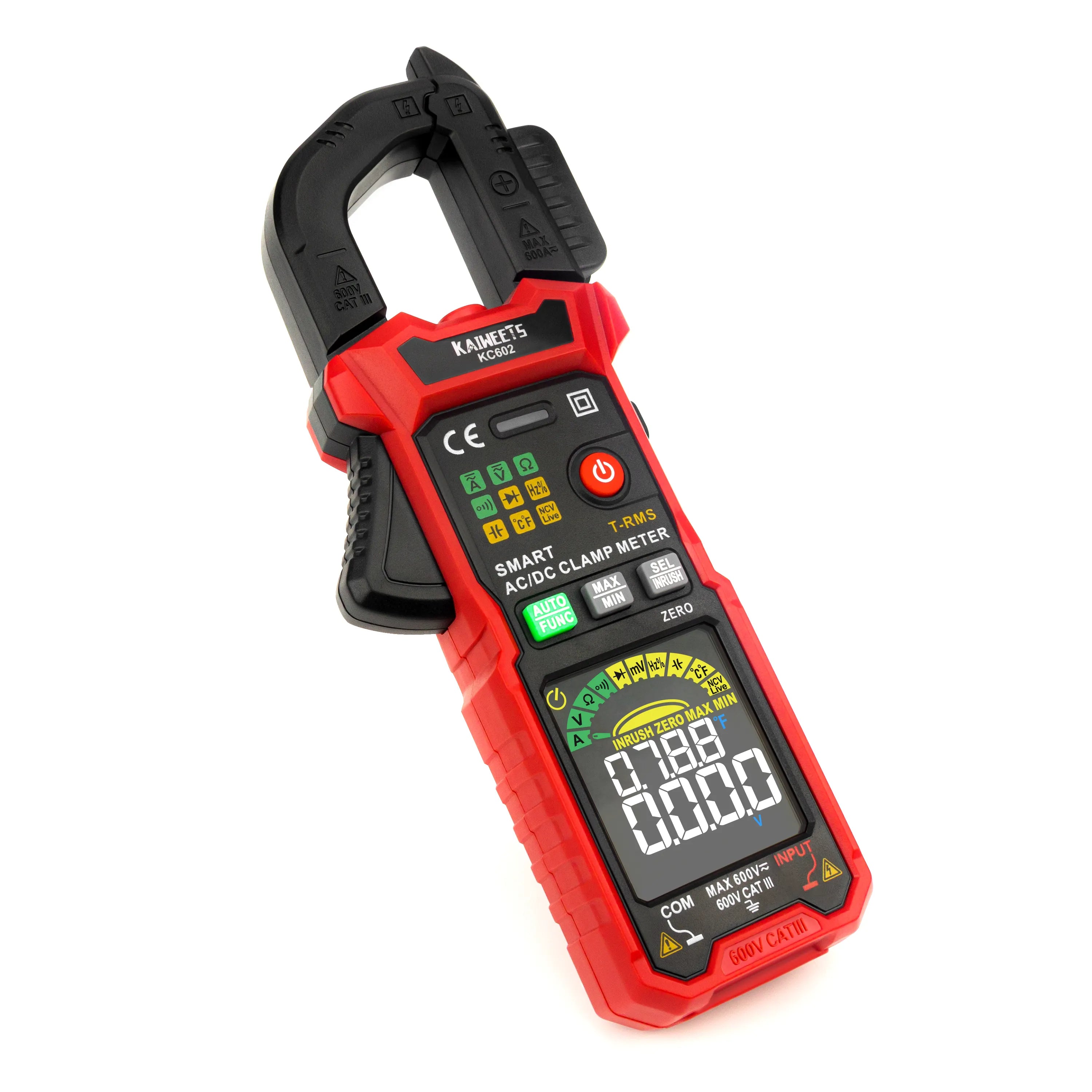

KAIWEETS KC602 Smart Digital Clamp Meter
Exclusive 15% Off Code: KW15
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.
Upgraded intelligent mode: We upgraded the amp clamp meter, which is unique in the market. The default intelligent mode when the meter is on can automatically identify AC/DC voltage/current, resistance, and continuity measurement signals, making the operation more convenient and safe.

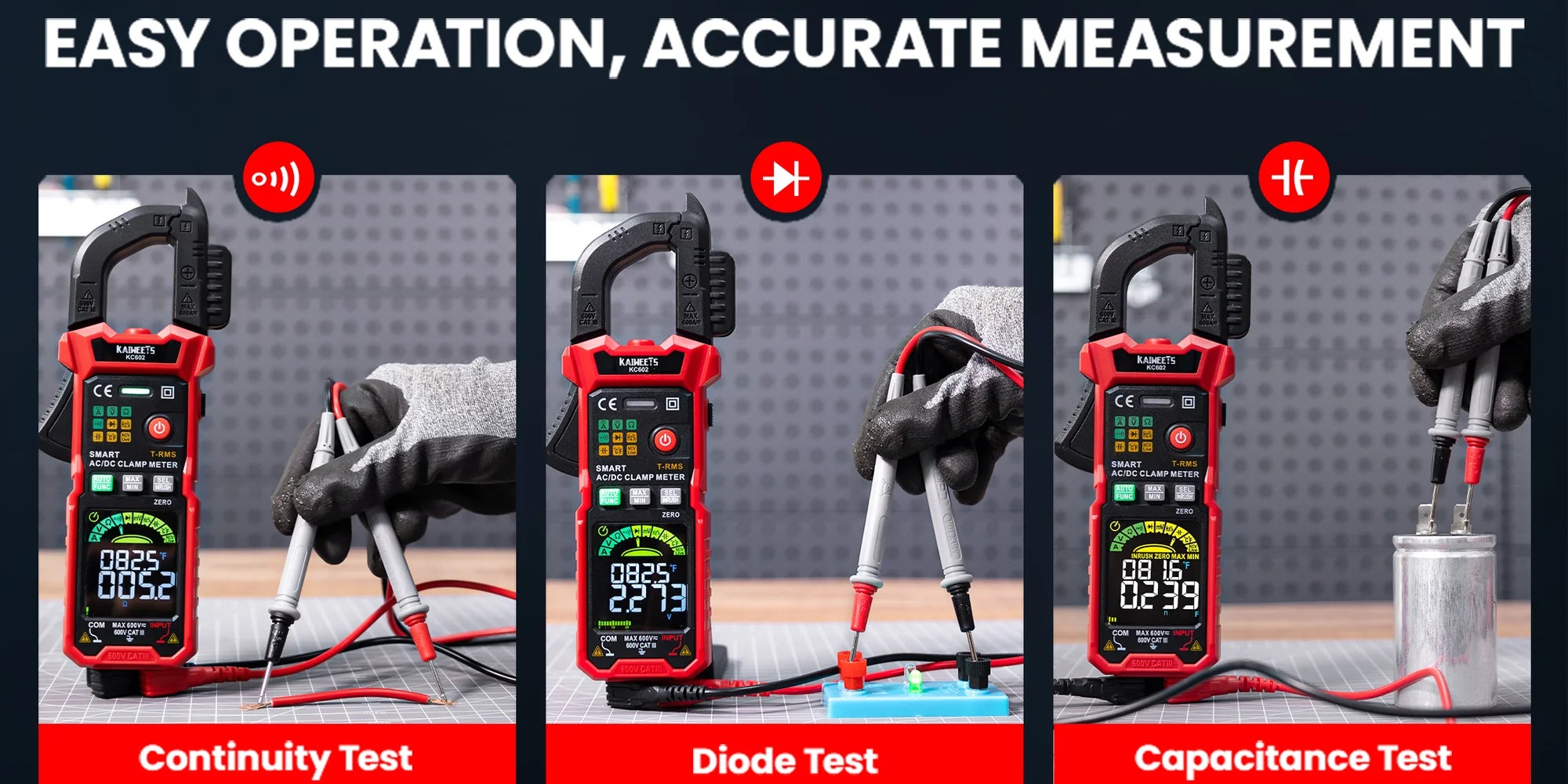

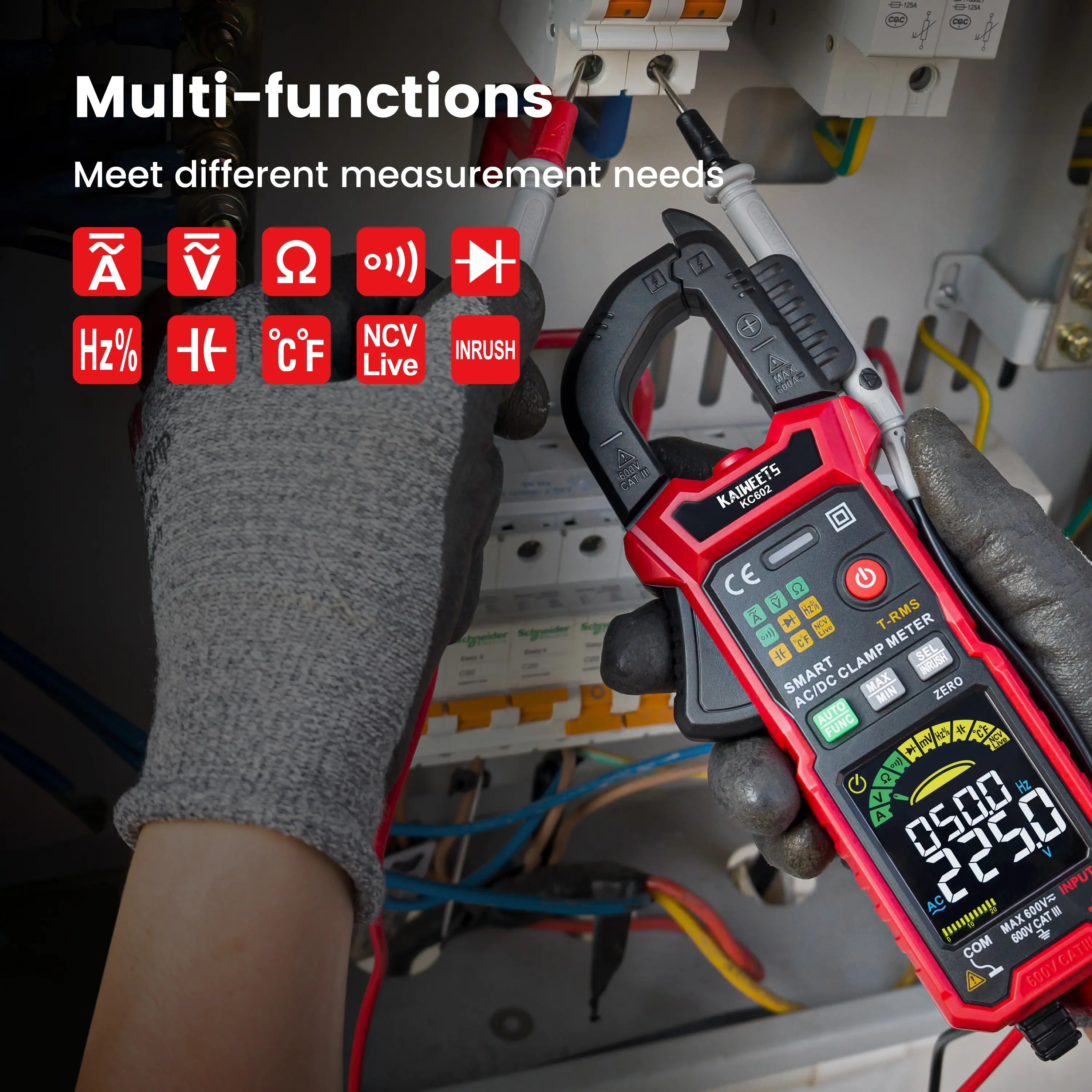

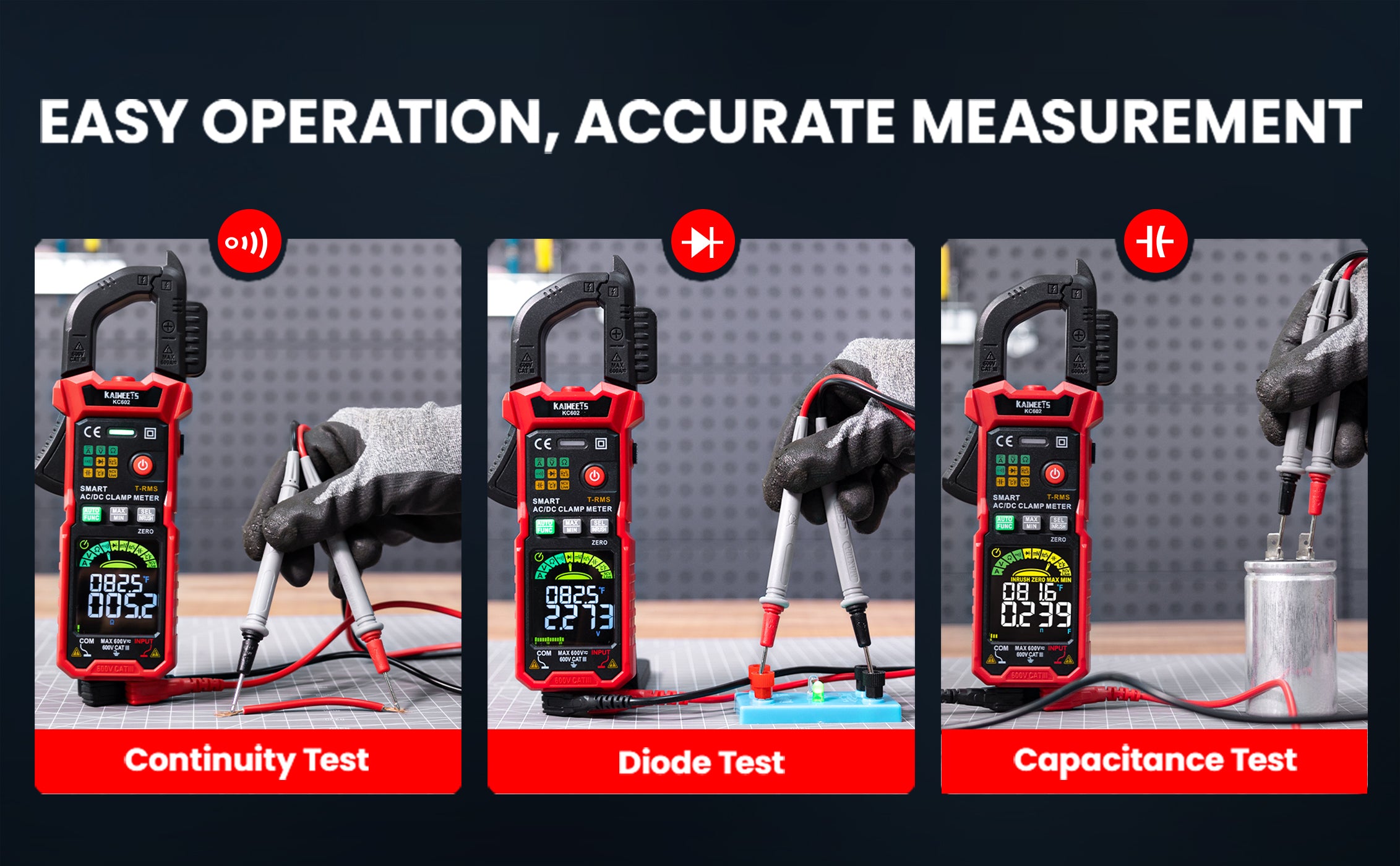

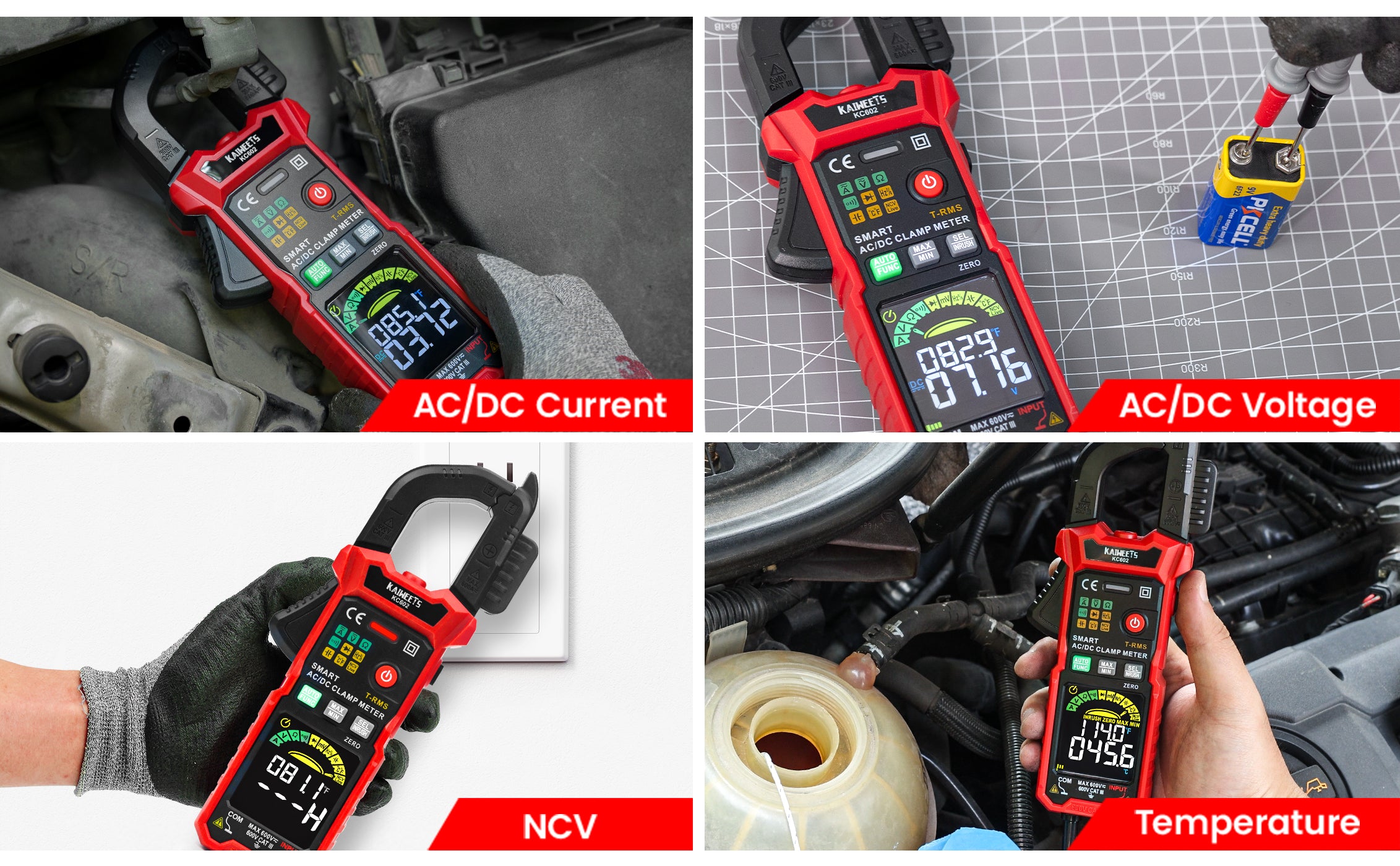

Advanced design & multi-function: The multimeter tester has built-in MAX/MIN、date hold、flashlight、auto-off features. D-shaped jaws can hold test leads and are more portable. It can measure AC/DC current/voltage, resistance, continuity, capacitance, diode, NCV, firewire, and temperature for all of your measurement needs.
Large HD color screen: Easier to read than a traditional clamp meter. The HD color bright screen is good for working properly in dark places. Avoid reading the measurement value difficulty under direct sunlight. It is a good gift for friends and family.
Self-test & inrush measurement function: The clamp meter automatically performs a self-test and displays "CAL" when it is on to ensure the accuracy of the measurement results. Also, Knowing the value of inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. Inrush current measurement range is 5-600A. The inrush function is only available in AC current mode, DC current does not have the inrush function.
Specifications | Range | Accuracy |
---|---|---|
DC Voltage | 600mV/6V/60V/600V | ±(0.5%+5) |
AC Voltage | 600mV/6V/60V/600V | ±(0.8%+5) |
DC Current | 60A/600A | ±(2.5%+5) |
AC Current | 60A/600A | ±(2.5%+5) |
Resistance | 600Ω/6kΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(1.0%+5) |
Capacitance | 6nF/60nF/600nF/6uF/60μF/600μF/6mF/60mF | ±(4.0%+5) |
Frequency | 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz | ±(1.0%+3) |
Duty | 1%~99% | ±(3.0%+3) |
Temperature | -40°C-1000°C | ±(1.0%+3) |
-40°F~1832°F | ±(1.0%+3) | |
Continuity | 6000Ω |
1 x KC602 Clamp Meter
2 x Test Leads
1 x Thermocouples
3 x AAA batteries
1 x User Manual
1 x Durable EVA Bag
Advanced design & multi-function
The multimeter tester is built-in MAX/MIN、data hold、flashlight、auto-off features. D-shaped jaws can hold test leads and are more portable. It can measure AC/DC current/voltage, resistance, continuity, capacitance, diode, NCV, firewire, and temperature for all of your measurement needs.
Upgraded intelligent mode
We upgrade the amp clamp meter, which is unique in the market. The default intelligent mode when the meter is on can automatically identify AC/DC voltage/current, resistance, and continuity measurement signals, making the operation more convenient and safe.
Inrush Current Test
Knowing the value of inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of the inrush current is about 100ms. When the current is greater than 5A, the Inrush function works well. The inrush function is only available in AC current mode, DC current does not have the inrush function.
Automatic Calibration
The meter can be automatically calibrated when it is turned on, "CAL" will be displayed on the scree, it takes only 3s, which makes the clamp meter more accurate because automatic calibration eliminates most of the errors generated during operation.
