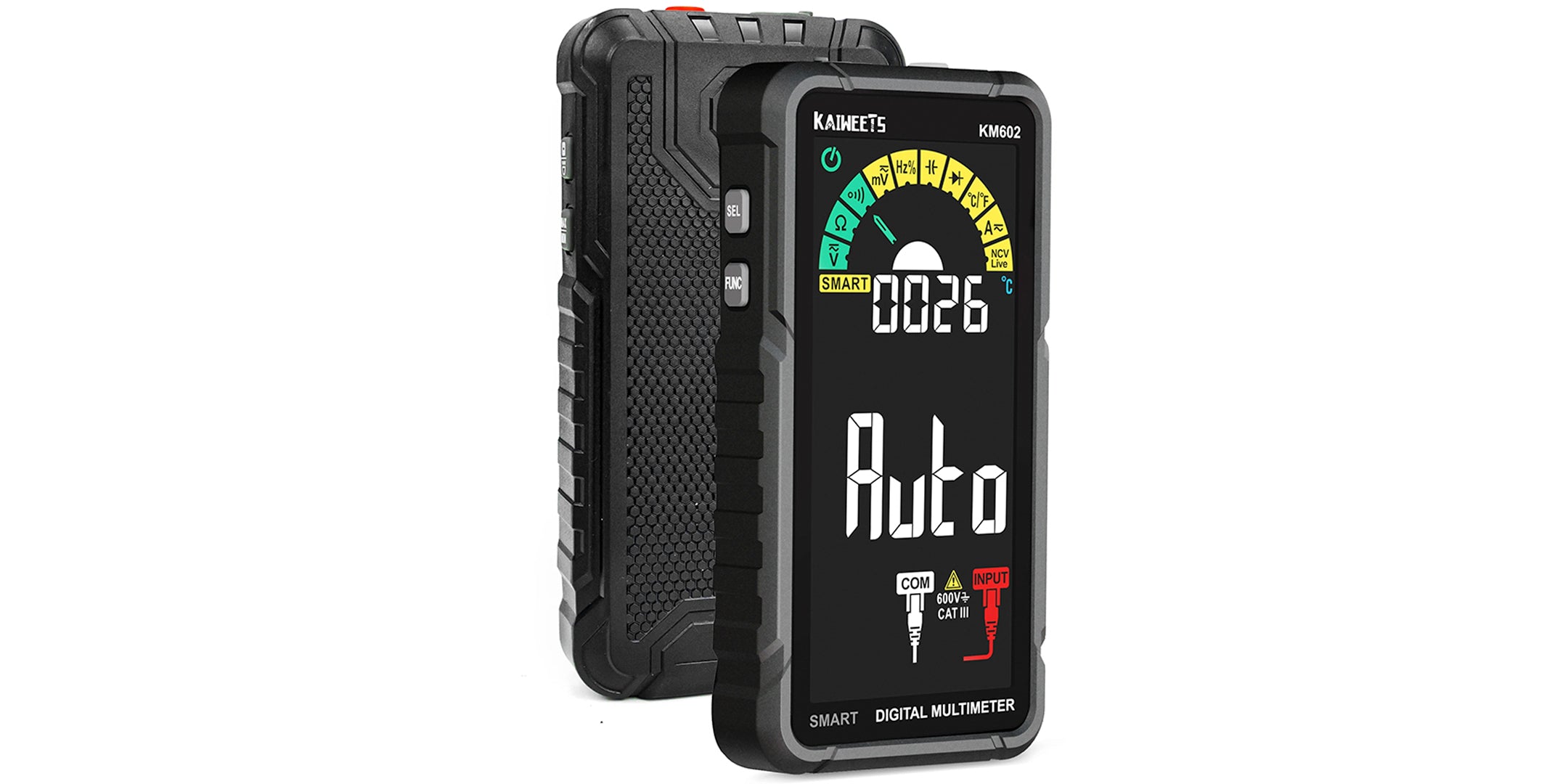

KAIWEETS KM602 Smart Digital Multimeter
Fraud Prevention: Your Payment is Safe & Secure.
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.

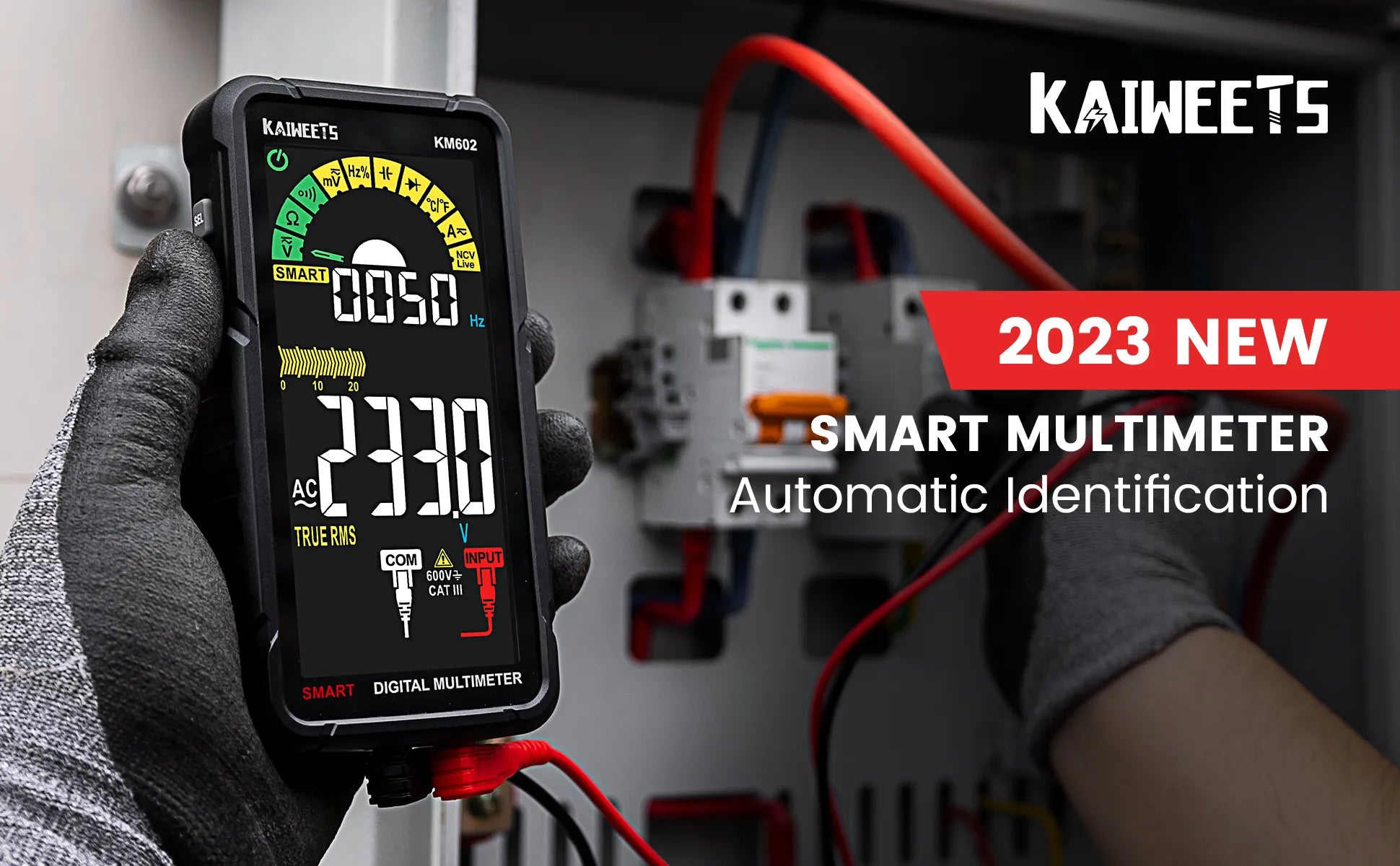

Smart Mode: This smart multimeter enters smart mode by default. In smart mode, the voltmeter automatically measures voltage, resistance, and continuity. It can identify the measurement content and select the range with the best resolution, making the measurement more convenient and faster.
Rechargeable multimeter: The tester multimeter has a rechargeable function and a built-in 1200 mAh battery. The multimeter will last longer. And what's more convenient is that you no longer need to replace the battery manually.
Wide Application: This smart digital multimeter is suitable for diagnosing automotive, industrial, and household electrical problems. The multimeter can accurately measure AC and DC voltage, resistance, continuity, AC and DC current, capacitance, frequency, diode, duty cycle, temperature, NCV, and live wire.
Safety instruction: The professional multimeter has two fuses to protect against burnout and overload. Overvoltage protection, anti-high voltage circuit. Soft silicone case protects in drop.
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 600.0mV/6.000V/60.00V/600.0V | ±(0.5%+3) |
| AC Voltage | 600.0mV/6.000V/60.00V/600.0V | ±(1.0%+3) |
| DC Current | 600.0mA/6.000A | ±(1.2%+3) |
| 10A | ±(1.5%+3) | |
| AC Current | 600.0mA/6.000A | ±(1.5%+3) |
| 10A | ±(2.0%+3) | |
| Resistance | 600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/6.000MΩ/60.00MΩ | ±(1.0%+3) |
| Capacitance | 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF | ±(4.0%+5) |
| Frequency | 60.00Hz/600.0Hz/6.000kHz/60.00kHz/600.0kHz/6.000MHz/10.00MHz | ±(1.0%+3) |
| Duty | 1%~99% | ±(3.0%+3) |
| Temperature | -20℃~1000℃~-4°F~1832°F | ±(1.0%+3) |
| Bandwidth | 40~1KHz | |
| Fuse Protection | 10A/250V/Φ5*20mm fuse | |

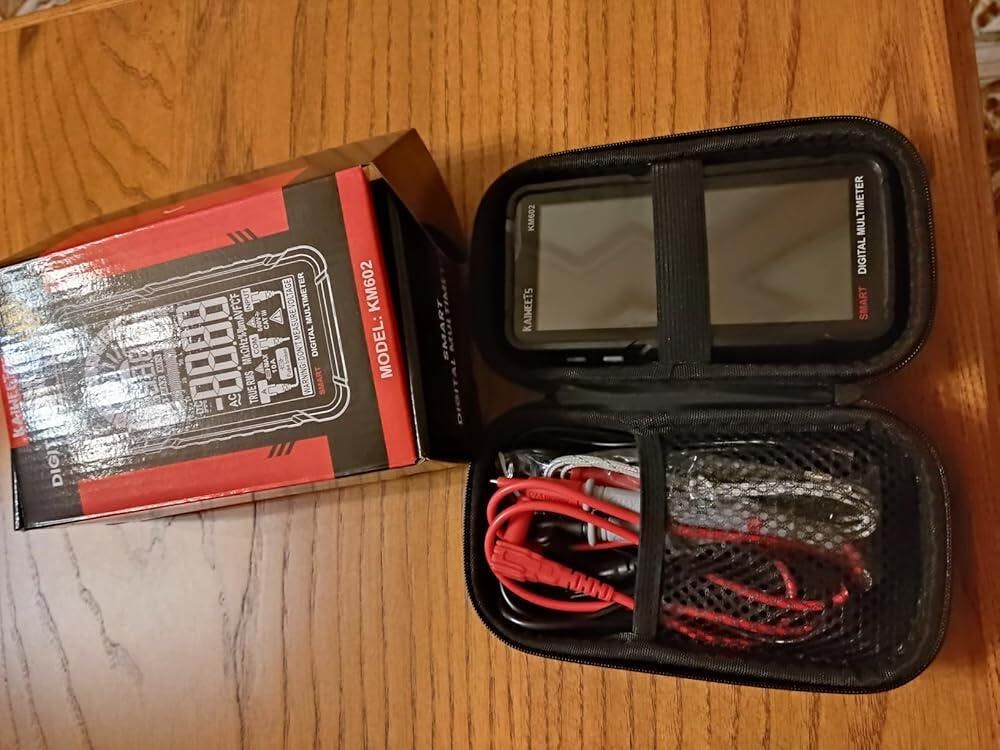

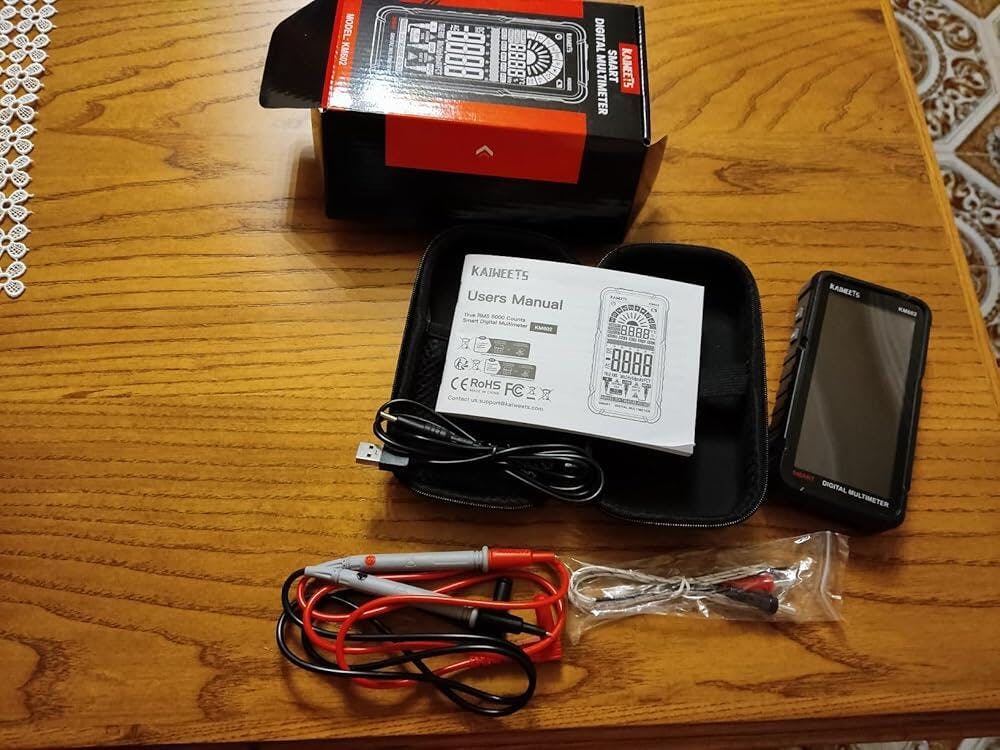

1 x KM602 Smart Multimeter
2 x Test Leads
1 x User Manual
1 x Thermocouple
1 x Charging Cable
1 x Durable EVA Bag
Smart & Manual Mode
This smart multimeter enters smart mode by default. In smart mode, the voltmeter automatically measures voltage, resistance, and continuity. It can identify the measurement content and select the range with the best resolution, making the measurement more convenient and faster.
Lithium Battery
The voltmeter has a built-in rechargeable battery that allows the meter to be used for extended periods without the need for frequent battery replacements. The rechargeable battery can be charged via cable, making it convenient to use in various locations. The battery life is impressive, and the device can be charged quickly, ensuring that it is always ready for use.
NCV & LiveTest
When the indicator light is on, it means there is voltage. Please pay attention to your safetyLive wire testing with the red test lead. When it detects a live wire, the clamp meter will reflect with the audio alarm.

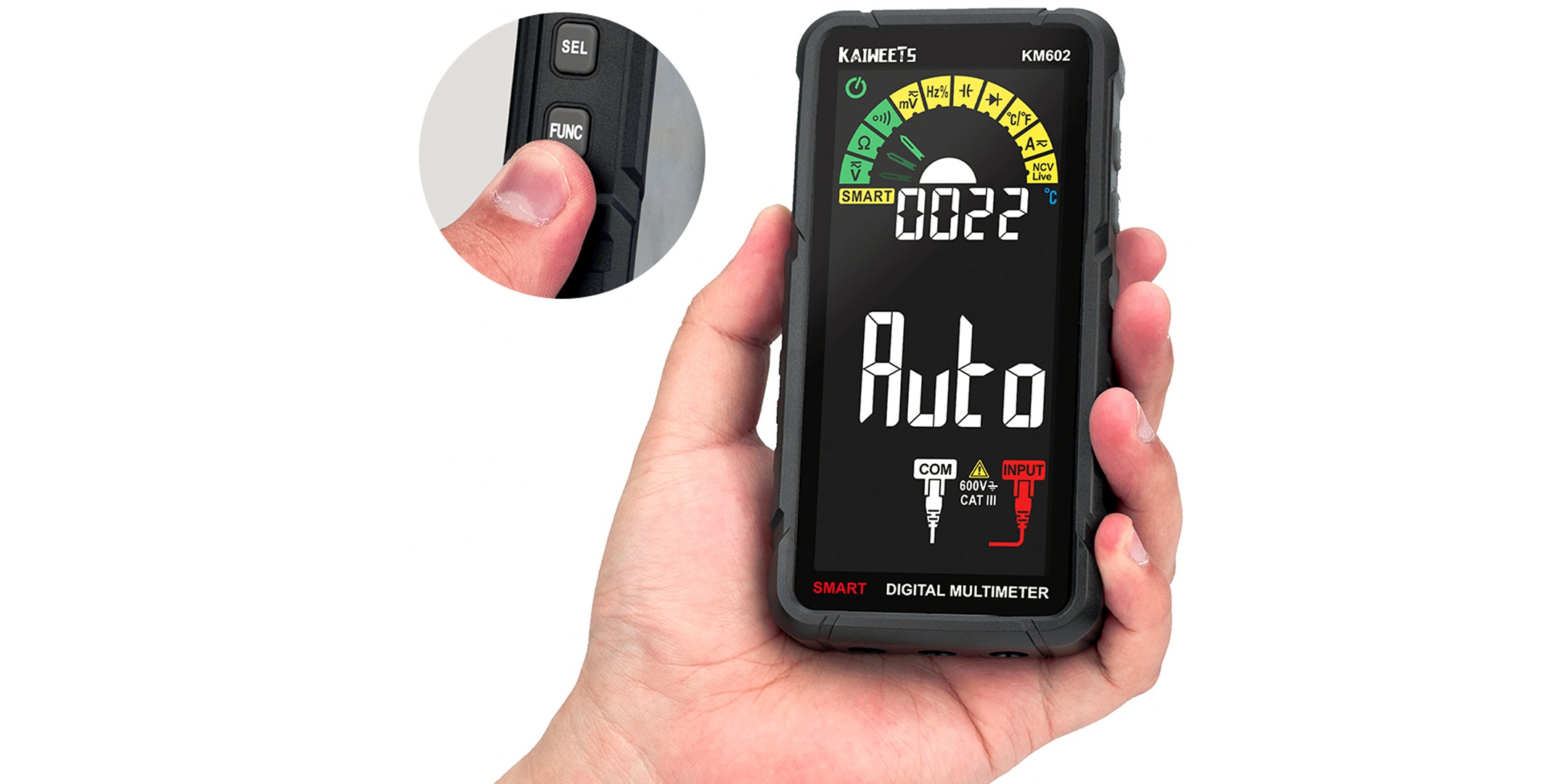

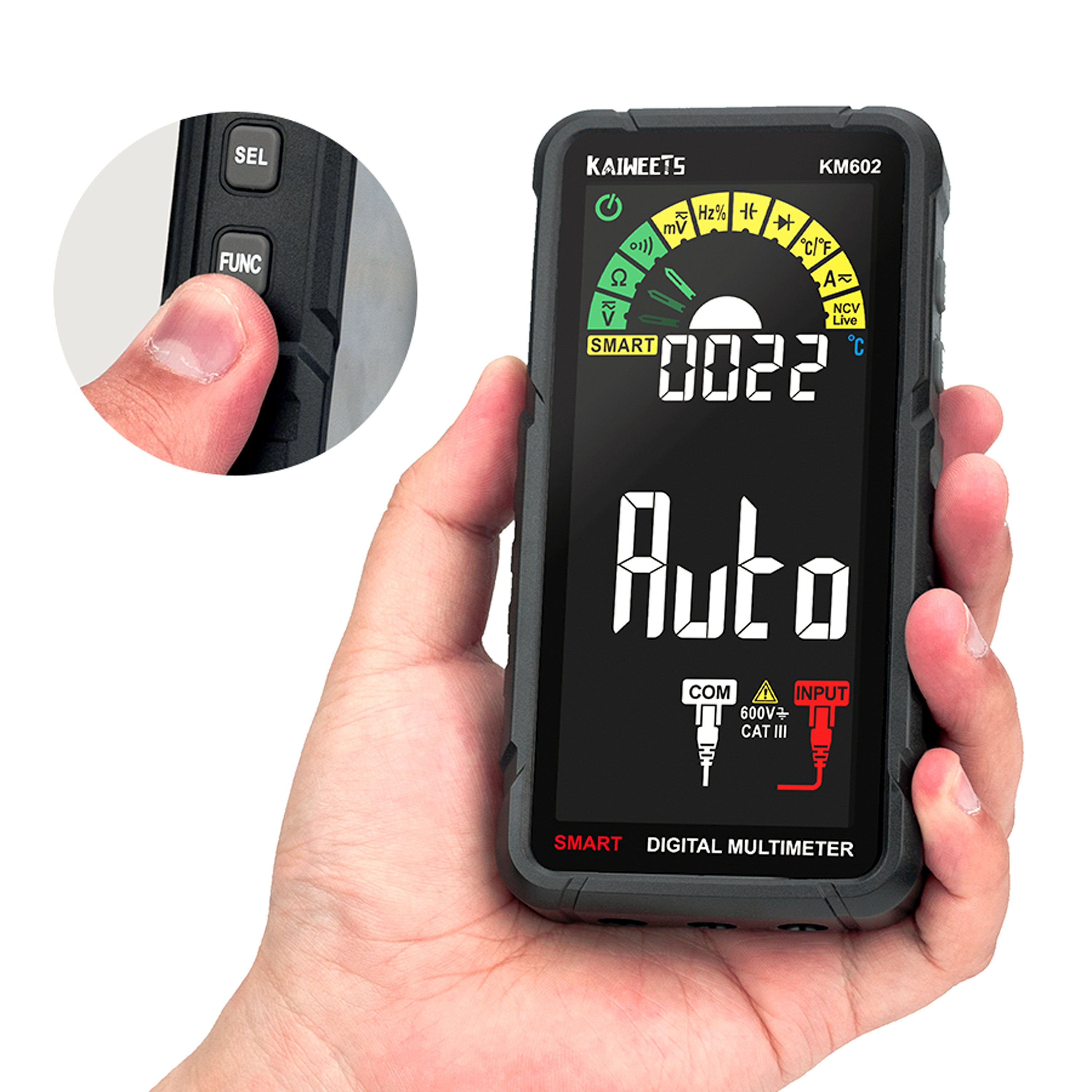

Easy Switch

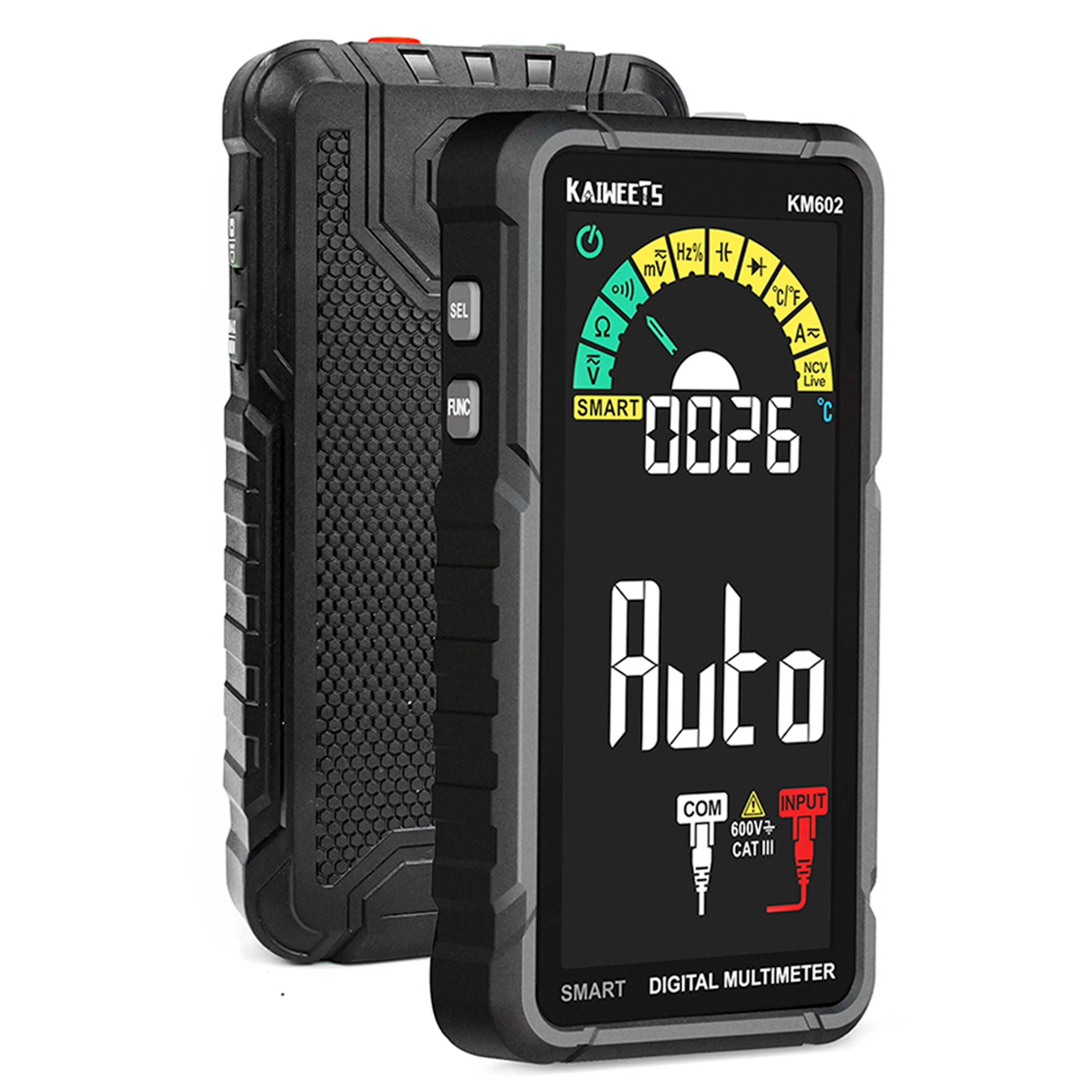

It has an 'Auto' mode that enables it to automatically detect and respond to the most frequent measures, such as Volts AC or DC, resistance, or continuity. All that is required in this intelligent mode is the attachment of the probes
Auto shutdown & Flashlight
KM602 multimeter will automatically shut down if there is no operation within 15 minutes, and has flashlight for easy reading even in bright or dim places.
klasse, die autofunktion ist wirklich sehr hilfreich
Such a versatile meter. The auto selection mode automatically switches to Voltage AC or DC, resistance or continuity. Manual selection between these is also possible and so is voltage in mV, frequency (with duty cycle),capacitance, diode test, temperature (via an included probe, or ambient temperature without having to connect a separate probe), current AC or DC. Additionally there is a Non-Contact Voltage (NCV) detection, which will detect the presence of an AC voltage close to the meter itself. Single probe live wire detection is also available. Extremely pleased with this product so far.
Quality, superb product 👌
Functional and compact allpurpose multimeter.
Delivery to Switzerland was in time and without any problem.

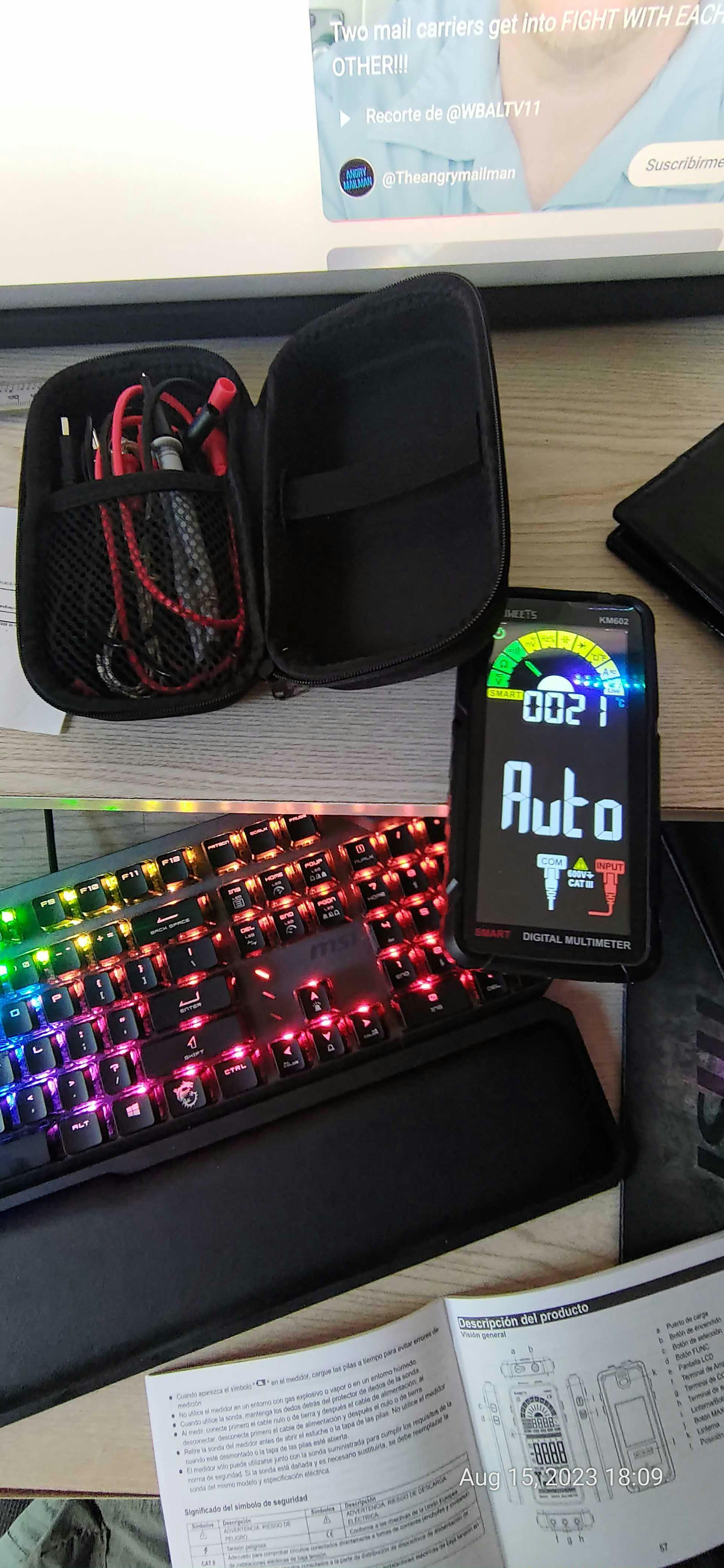

Really like the interface and is very handy. I already try smart function and works pretty good. Now I'll test it on my work and will find out in deep.
