Rapid Heating: This smart soldering iron is equipped with fast heating function, after startup, it can be heated up to the working temperature within a few seconds, 176℉-788℉(80℃-420℃)temperature range can be adjusted accurately according to work needs. This product is suitable for welding and repairing electronic boards, mobile phones, tablets, jewelry and other precision items. (Note: Before starting to use this product, please confirm that the automatic sleep function is turned on.)

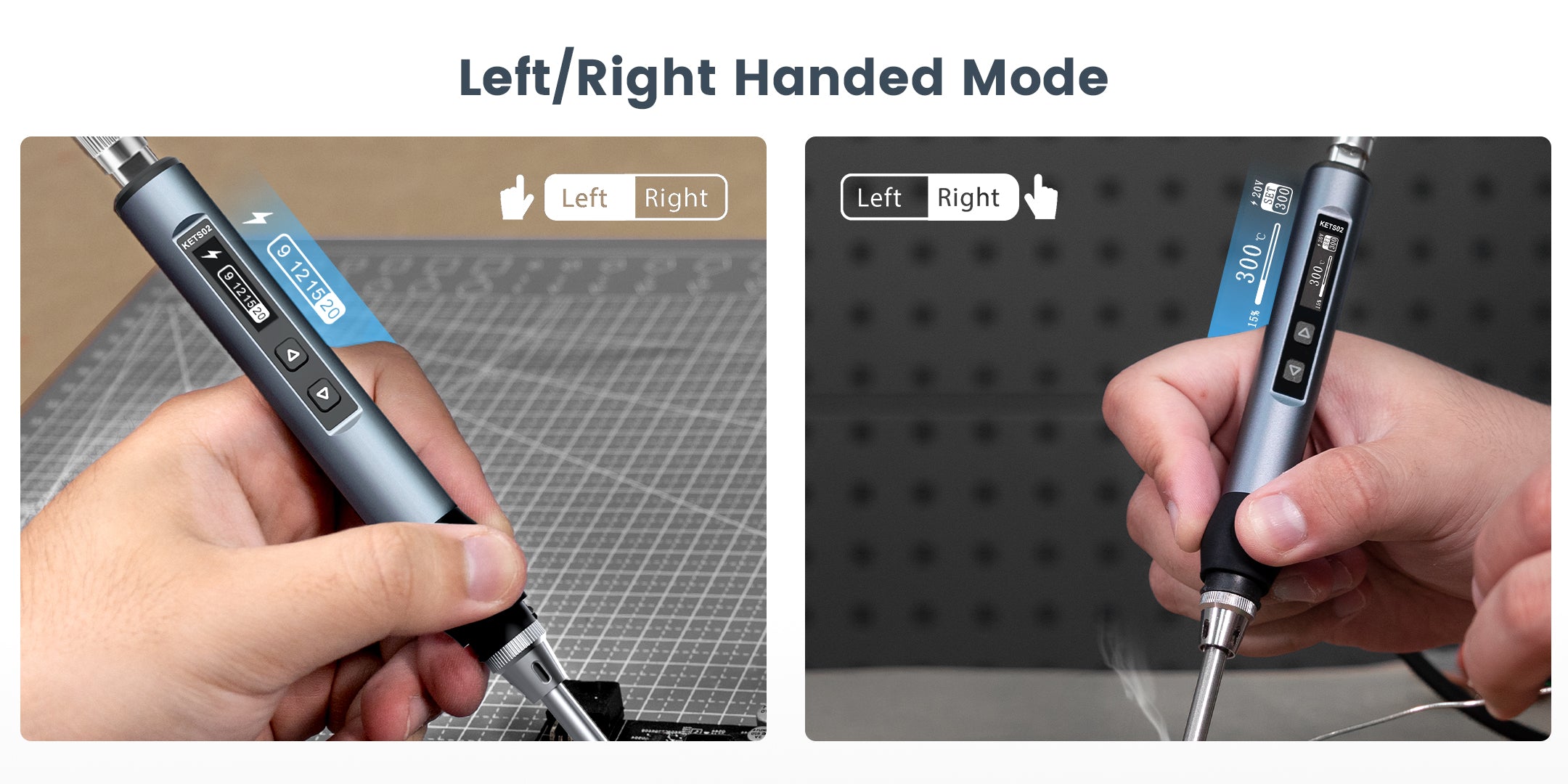

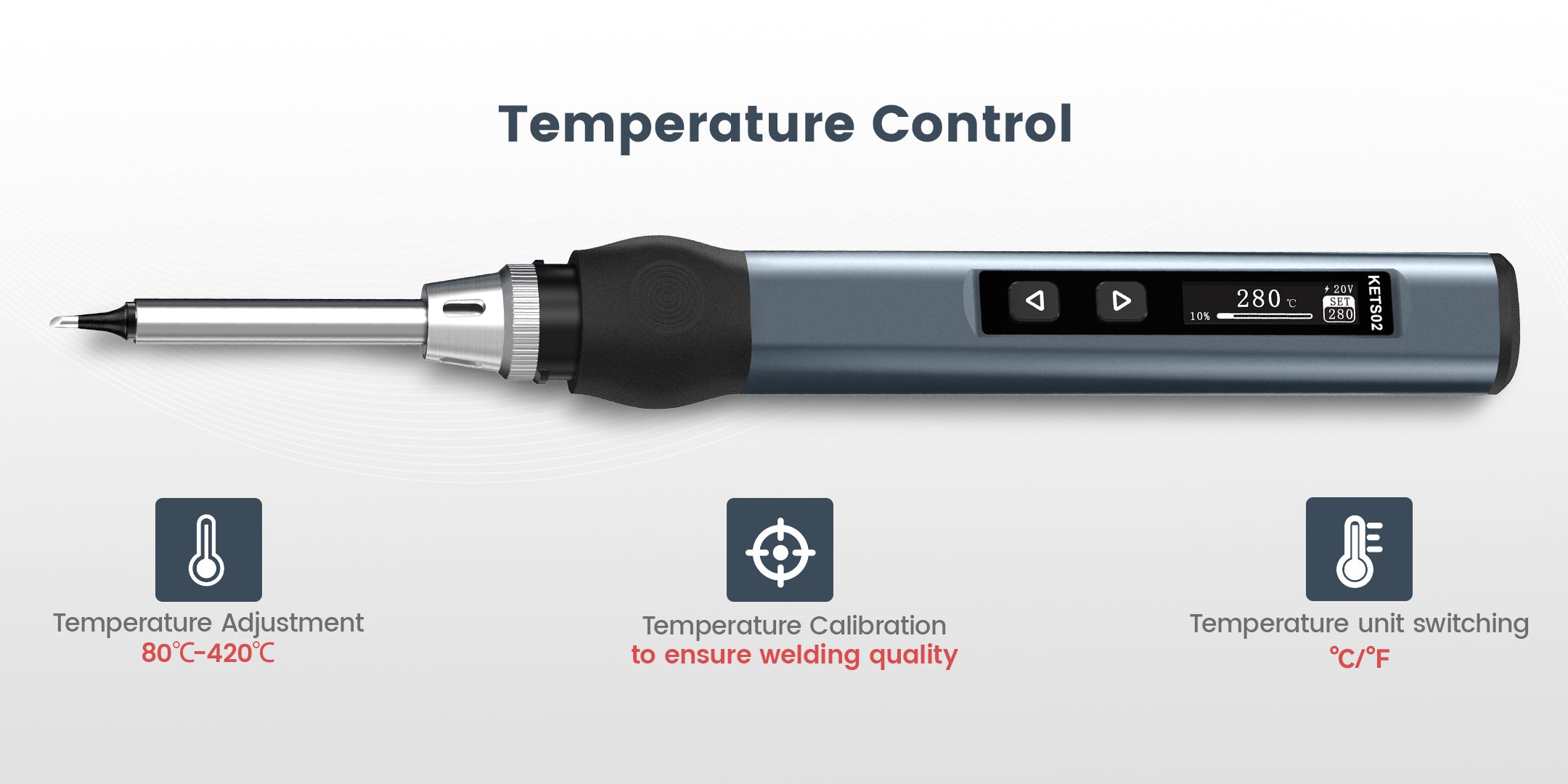

Smart and Easy to Use: This soldering iron is equipped with a built-in intelligent chip that can provide real-time temperature compensation, precise temperature control, temperature calibration that can stable working temperature. It is also equipped with sleep mode, child lock mode, left and right-hand switching and switch measurement units function. These Intelligent functions will improve your work efficiency.

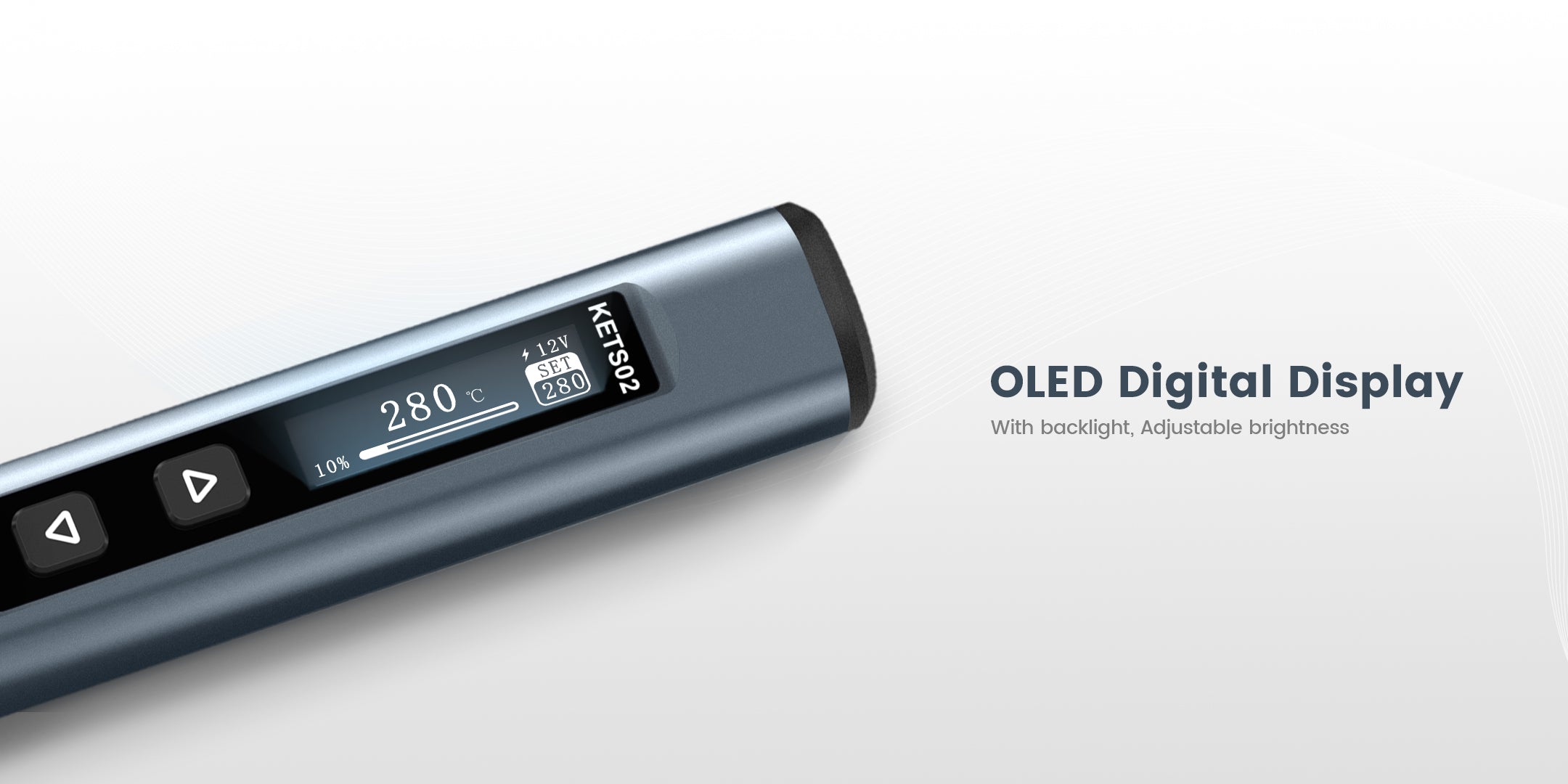

OLED Display Screen: This soldering iron is equipped with an OLED display screen, which can adjust the brightness according to needs. The working status, temperature settings, and various functional operations of the soldering iron will be clearly displayed on this display screen, making it convenient for you to read data and control the soldering iron more finely.

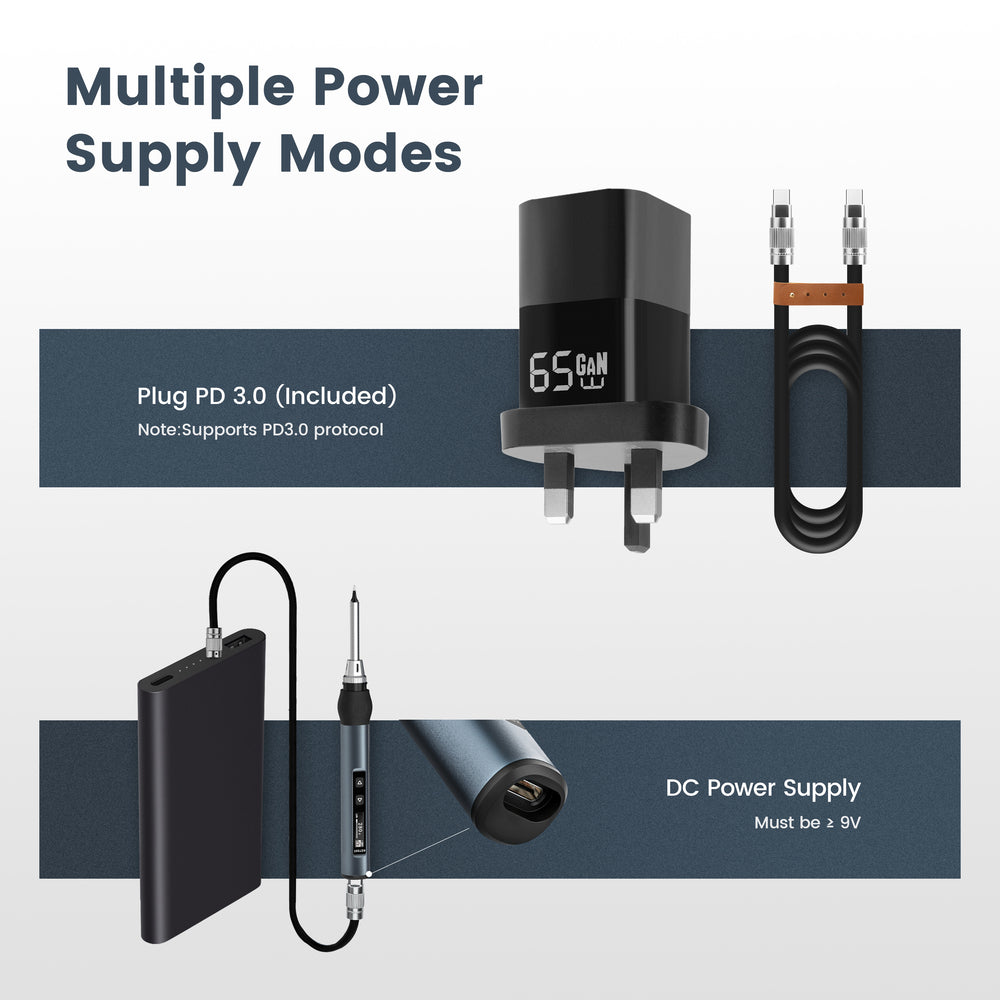

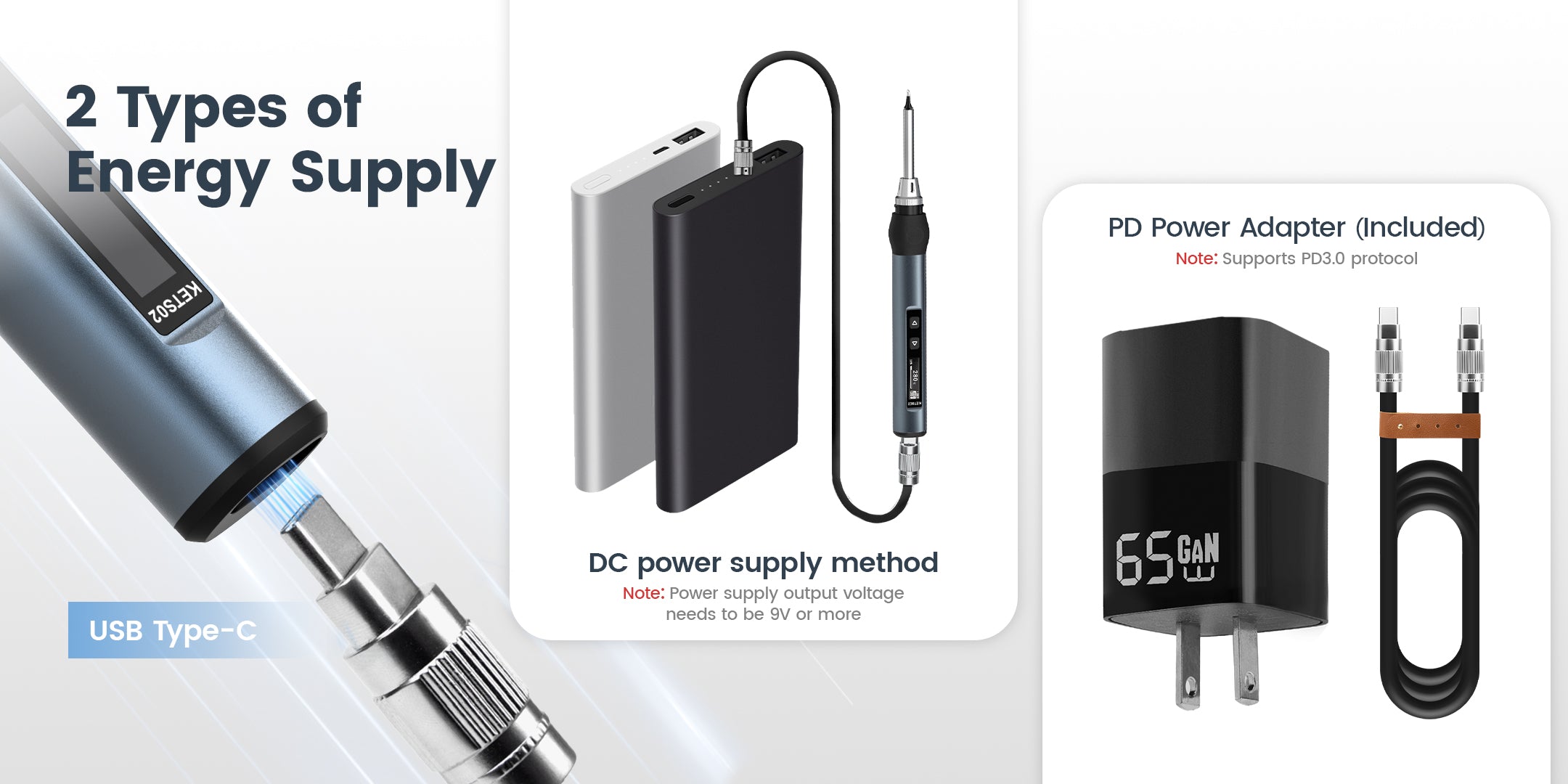

Adjustable Working Voltage: This soldering iron can be set to obtain any of the four working voltages of 9V/12V/15V/20V (default working voltage is 20V), and obtain the corresponding working current, power, and tin melting time under different working voltages. This function can meet the requirements of various working intensities.(Note: It is recommended to use a PD fast charging plug as the power plug for this product, otherwise it may cause insufficient power.)

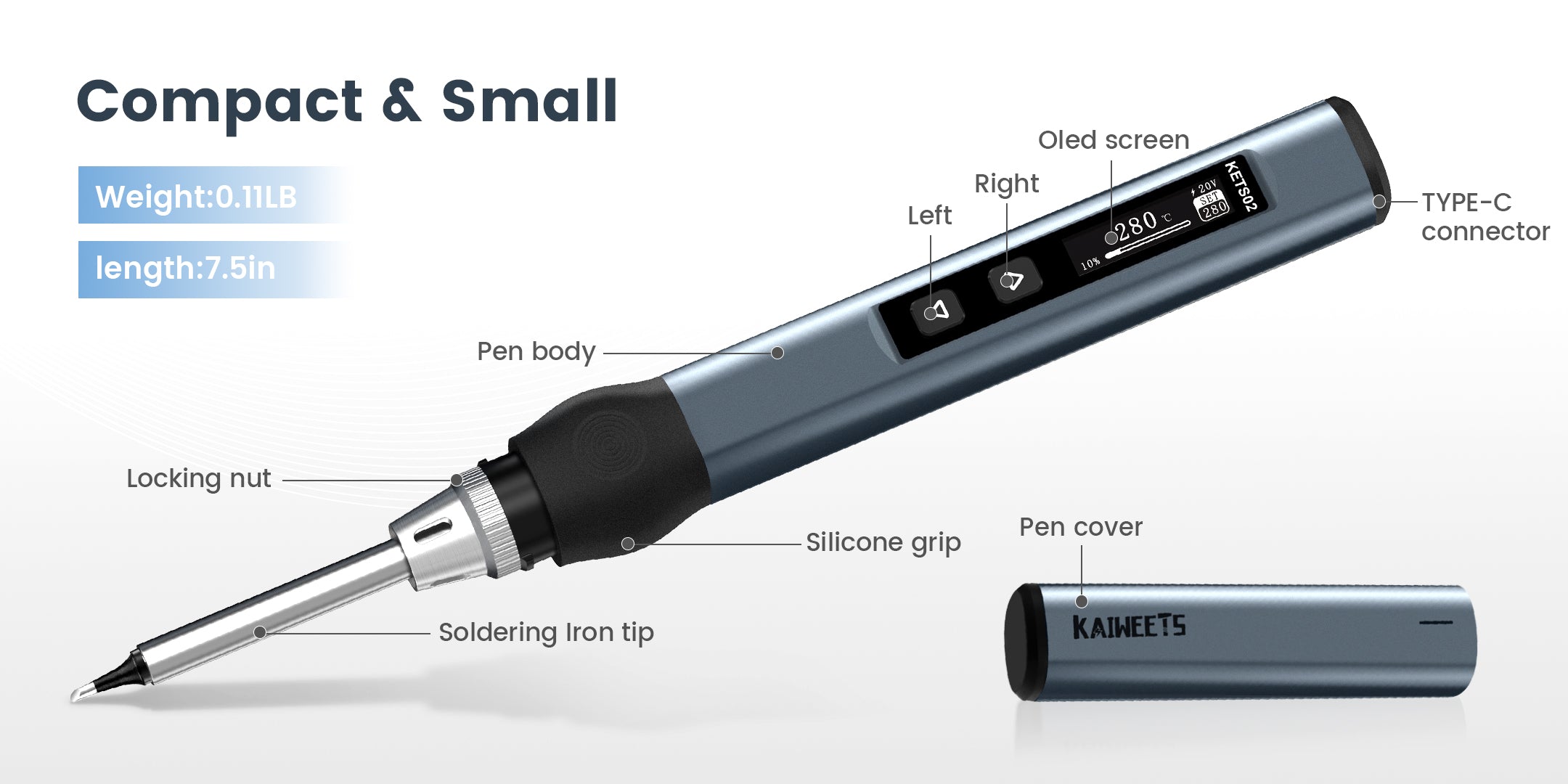

Light Weight Portable: The outer shell of this soldering iron is made of metal material, with exquisite craftsmanship, small size, light weight, and can be placed in a pocket, making it very convenient to carry around and meeting the needs of going out for work.
| KETS02 | Parameters |
|---|---|
| Specific Uses For Product | Electronic repair DIY Jewellery Soldering |
| Power Source | DC/PD Dual Power |
| Wattage | 65 watts |
| Special Feature | Fast heating Portable Oled display DC/PD Dual Power |
| Head Style | Pencil |
| Burner type | Ceramic |
| Material | metal, tin, silicon, iron |
| Temperature Range | 80℃-420℃（176℉-788℉） |
| Operating Voltage | 20V 15V 12V 9V | Tin Melting Time | 8s 12s 17s 30s |
6 x Soldering Iron Tips
1 x Sponge Holder
1 x User Manual
1 x C-Wire
1 x Charging Head
USER MANUAL
Just received my KETS02 Soldering iron and gave it a short test. It's heating up incredibly fast, it's light and handy and I'm happy looking forward to working with my new tool.
Heats up very fast, good Build quality
This soldering iron KET-S02 is absolutely perfect in every way. I am completely satisfied with the item and would definitely recommend it
PD 65W級の急速充電器を別途用意する必要が有るのでテストが遅れましたが、当初の予想より温度上昇が早くて感動しました。最初の組立て段階での出来事ですが、こて先を挿し込んでいるにも関わらず電源を入れると"こて先を入れろ"という表示が繰り返し表示されるので何度も入れ直していると何かの拍子にスポッと一段太くなっている部分まで入りました。それ以降は"入れろ"表示は消え温度調整が可能に。使用感については温度上昇が驚く程早く、また繊細な温度調整が行える為小物から太い配線迄綺麗なハンダ付けを行う事が出来ました。更に画面表示が左利き用に切り替えられる点についても高く評価したいと思います。
There are two versions of this soldering iron one comes with a 65w PSU, while the other comes with no PSU.This is a brilliant little soldering iron that heats up super fast powered by USB C cable. I have two of these, one comes with a PSU and the other with no PSU.The soldering iron is not much bigger than a fountain pen nice and easy to hold, it has a clear to read oled display with a adjustable temperature range that you can set from 80c to 420c. In the box you get the soldering iron, good quality USB C to USB C power cord, small iron rest will sponge, soldering iron tip. 65w gan PSU of good quality and the user manual.With the PSU the soldering iron heat's up to 400c in just over five seconds. Iv even tried it powering it with a good quality power bank and got the same results mega fast heat up time and the power bank remains cool.Good quality bit of kit at a reasonable price. Great to be able to use it powered by a power bank making it much easier to get the job done.Both versions are priced well, just remember if you buy the one with no PSU make sure you have your own high output at least 65w.
