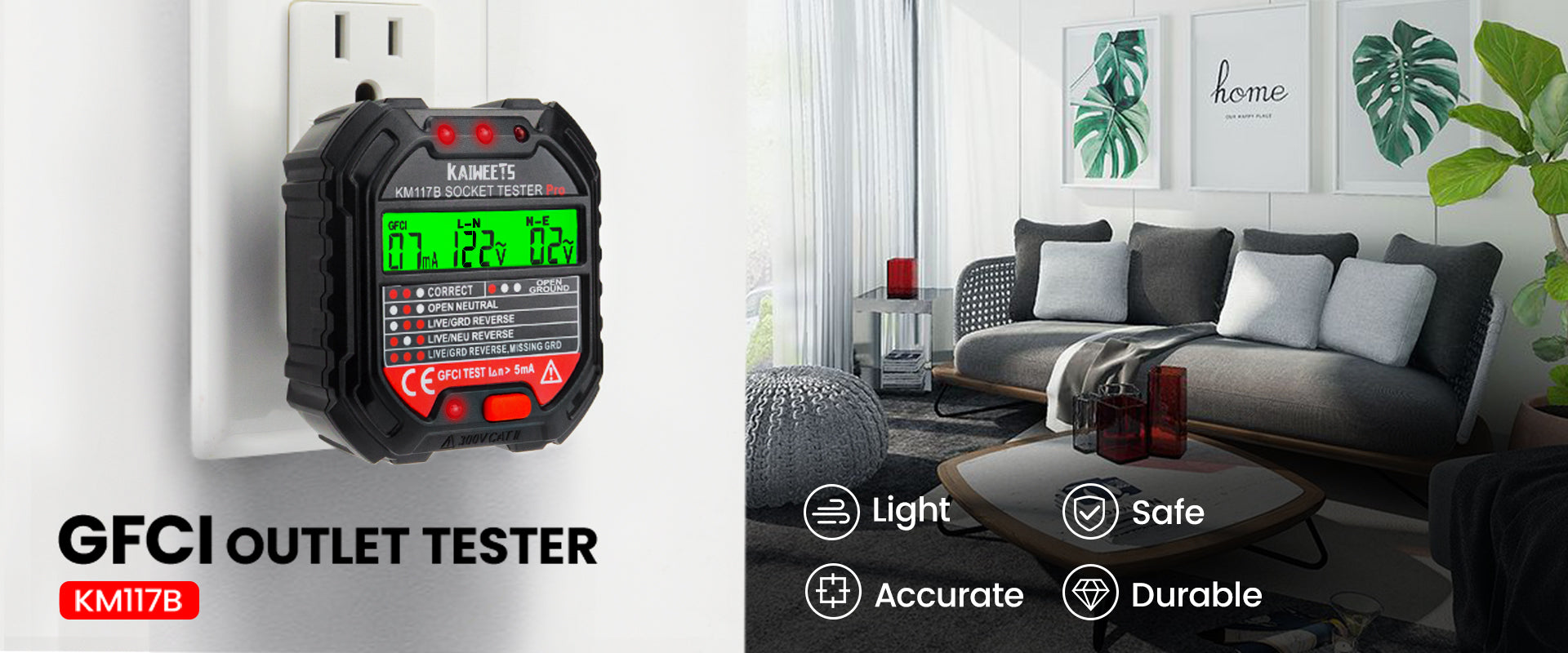

KAIWEETS KM117B GFCI Socket Tester
* 1
Prevenzione delle frodi: il tuo pagamento è sicuro e protetto.

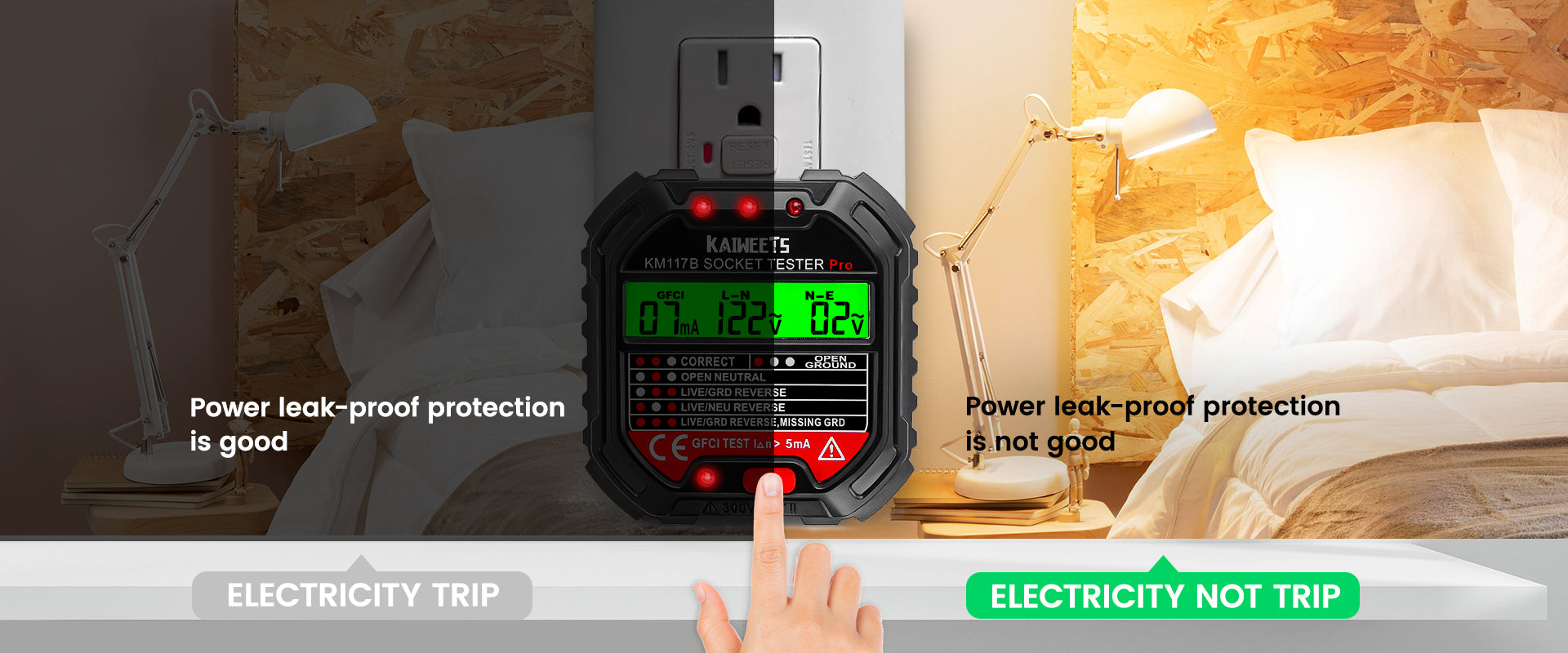

GFCI Function: Check if the trip breaker is functioning. Press the GFCI button, if the GFCI receptacle trip, that means the power leak-proof protection is good. Be careful of using this function on normal receptacles. It may cause house wiring trips.
Voltage Display: This GFCI tester with LCD display helps you to measure the socket Phase voltage, Leakage voltage, and Current and display it clearly on the LCD screen. When the wiring problems, the screen will turn orange.
Testing Capability: Standard 3-Wire and GFCI-protected 120Volt AC Outlets. This Receptacle tester detects the most common wiring faults in standard and GFCI electrical outlets, open ground, open neutral, hot/ground reverse, hot/neutral reverse, hot/ground reverse&open ground.

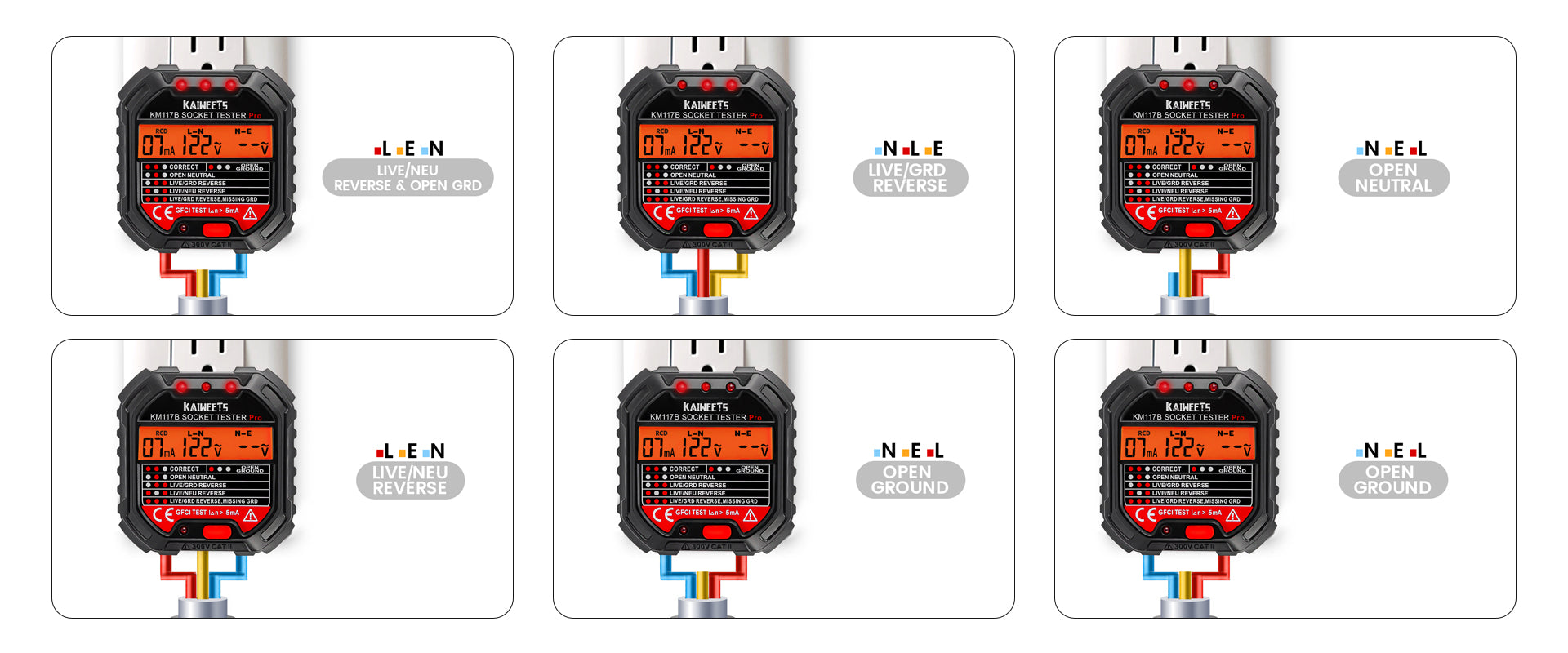

Instant Wiring Identification: The Red LED indicators can be lit up clearly for easy visual indication, when activated identify one of the six common wiring options.
Safety Certificate: This outlet tester with GFCI conforms to CAT III 300V and CE-Marking.
| KM117B | Parameters |
|---|---|
| Operating Voltage | 90~250V/45~65Hz |
| Phase Voltage | 90~250V/45~65Hz accuracy:±(2.0%+2) |
| Leakage Voltage | 0~99V/45~65Hz accuracy,±(2.0%+2) |
| Operating Temperature | 0°C~40°C |
| Operating Humidity | 20%~75%RH |
| Storage Temperature | -10°C~50°C |
| Storage Humidity | 20%~80%RH |
| Altitude | ≤2000m |
| GFCl Working Voltage | 110V±20V | GFCI Test | >5mA |
1 * GFCI Socket Tester
1* User Manual
KAIWEETS KM117B is an electrical receptacle tester that tests the wiring conditions at an electrical outlet and inspects GFCI devices. The LCD displays the Phase voltage, Leakage voltage, and Current, and identifies SIX common wiring problems, correct, open ground, open neutral, hot/ground reverse, hot/neutral reverse, hot/ground reverse&open ground. It is designated for use with North American 3-wire 120V electrical outlets.
