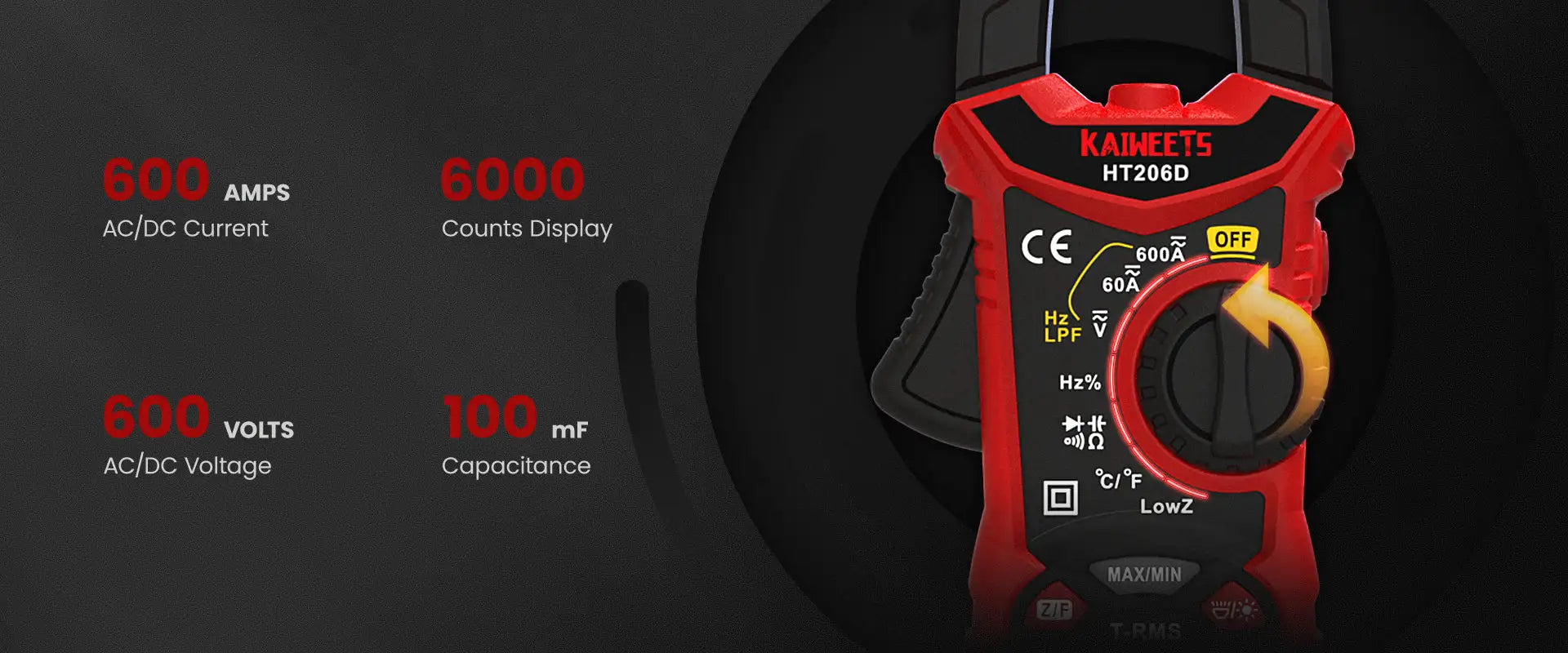

KAIWEETS HT206D Pince ampèremétrique numérique True RMS 6000 points
5-7 Business Days to America and Europe.
15-30 Business Days to Other Areas.
30-Day No-Hassle Returns & 3-Year Warranty
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.
Pince ampèremétrique True-RMS : ce multimètre peut mesurer avec précision le courant AC/DC, la tension AC/DC, la fréquence ou le cycle de service, la résistance et la capacité et fournit également des tests de diode, de continuité et de température. True RMS pour des mesures précises sur des charges non linéaires.
Faible et LPF : une faible impédance d'entrée permet d'éviter les fausses lectures dues à une tension fantôme. Filtre passe-bas (LPF) pour une mesure précise des signaux du variateur de fréquence lors de la mesure des moteurs et des transformateurs. Pour mesurer le courant, vous devez serrer le multimètre autour de l'un des fils et non de l'ensemble du cordon d'alimentation.
Fonction de détection NCV : la détection de tension sans contact vérifie efficacement l'état électrique en mesurant l'intensité du champ EM sans toucher aucun fil.
Multifonction : écran LCD rétroéclairé bicolore – Lorsque la tension est > 80 V, le courant est > 3 A et l'écran LCD rétroéclairé devient rouge pour vous avertir de la haute tension.
Description
Pince ampèremétrique True-RMS : ce multimètre peut mesurer avec précision le courant AC/DC, la tension AC/DC, la fréquence ou le cycle de service, la résistance et la capacité et fournit également des tests de diode, de continuité et de température. True RMS pour des mesures précises sur des charges non linéaires.
Faible et LPF : une faible impédance d'entrée permet d'éviter les fausses lectures dues à une tension fantôme. Filtre passe-bas (LPF) pour une mesure précise des signaux du variateur de fréquence lors de la mesure des moteurs et des transformateurs. Pour mesurer le courant, vous devez serrer le multimètre autour de l'un des fils et non de l'ensemble du cordon d'alimentation.
Fonction de détection NCV : la détection de tension sans contact vérifie efficacement l'état électrique en mesurant l'intensité du champ EM sans toucher aucun fil.
Multifonction : écran LCD rétroéclairé bicolore – Lorsque la tension est > 80 V, le courant est > 3 A et l'écran LCD rétroéclairé devient rouge pour vous avertir de la haute tension.
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 600mV/6V/60V/600V | ±(0.5%+5) |
| AC Voltage | 6V/60V/600V | ±(0.8%+5) |
| DC Current | 60A/600A | ±(2.5%+5) |
| AC Current | 60A/600A | ±(2.5%+5) |
| Resistance | 600Ω/6kΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(1.0%+5) |
| Capacitance | 4nF/40nF/400nF/4μF/40μF/400μF/4mF | ±(4.0%+5) |
| Frequency | 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz | ±(1.0%+3) |
| Duty | 1%~99% | ±(3.0%+3) |
| Temperature | -40°C-1000°C | ±(1.0%+2) |
| -40°F~1832°F | ±(1.0%+2) | |
| Counts | 6000 | |
Parameters
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 600mV/6V/60V/600V | ±(0.5%+5) |
| AC Voltage | 6V/60V/600V | ±(0.8%+5) |
| DC Current | 60A/600A | ±(2.5%+5) |
| AC Current | 60A/600A | ±(2.5%+5) |
| Resistance | 600Ω/6kΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(1.0%+5) |
| Capacitance | 4nF/40nF/400nF/4μF/40μF/400μF/4mF | ±(4.0%+5) |
| Frequency | 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz | ±(1.0%+3) |
| Duty | 1%~99% | ±(3.0%+3) |
| Temperature | -40°C-1000°C | ±(1.0%+2) |
| -40°F~1832°F | ±(1.0%+2) | |
| Counts | 6000 | |
1 x HT206D Digital Clamp Meter
2 x Test Leads
1 x User Manual
1 x Thermocouple
2 x AAA Batteries
1 x Durable EVA Bag
Package Lists
1 x HT206D Digital Clamp Meter
2 x Test Leads
1 x User Manual
1 x Thermocouple
2 x AAA Batteries
1 x Durable EVA Bag
Manuals Downloads
- USER MANUAL
- Download
- PATENT CERTIFICATE
- → LD01-Test Report
- → LD01-Certificate
Video
Accurately measure resistance, capacitance, diode, and continuity. Easy to use in laboratory factories and homes.
Accurately measure resistance, capacitance, diode, and continuity. Easy to use in laboratory factories and homes.
Press the "Z/F" button to switch the respective secondary function between the different measurements, such as between AC and DC.
If current> 3A, the orange display lights up.
The measuring range of AC current is 60A/600A. Accuracy: ±(2.5%+5).
Press the "Z/F" button to switch the respective secondary function between the different measurements, such as between AC and DC.
If current> 3A, the orange display lights up.
The measuring range of AC current is 60A/600A. Accuracy: ±(2.5%+5).
To measure the current, you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying current and a ground wire. The current in two wires always flows in opposite directions, so the magnetic fields from the two wires cancel each other; therefore, the meter reads 0 A.
Grasp the individual current conductor to be measured and close the current clamp again. The measured conductor must be placed in the center of the clamp; otherwise, additional errors will occur.
To measure the current, you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying current and a ground wire. The current in two wires always flows in opposite directions, so the magnetic fields from the two wires cancel each other; therefore, the meter reads 0 A.
Grasp the individual current conductor to be measured and close the current clamp again. The measured conductor must be placed in the center of the clamp; otherwise, additional errors will occur.
Non-contact voltage detection effectively checks the electrical status by measuring EM field intensity without touching any wires; The NCV button lies on the right side. Simply place your thumb on it and push.
Non-contact voltage detection effectively checks the electrical status by measuring EM field intensity without touching any wires; The NCV button lies on the right side. Simply place your thumb on it and push.
If there is no operation in 15 minutes, the meter will beep 3 times, indicating Auto Power Off; with no further operation in 30 seconds, the meter beeps again and automatically shuts down.
If there is no operation in 15 minutes, the meter will beep 3 times, indicating Auto Power Off; with no further operation in 30 seconds, the meter beeps again and automatically shuts down.
Range: -4°F~1832°F
The K-type thermocouple included
Range: -4°F~1832°F
The K-type thermocouple included
1 x KAIWEETS Digital Clamp Meter
2 x Test Leads
1 x K-Type Thermocouple
2 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Durable EVA Bag
1 x Packing Box
1 x KAIWEETS Digital Clamp Meter
2 x Test Leads
1 x K-Type Thermocouple
2 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Durable EVA Bag
1 x Packing Box
