KAIWEETS HT118A T-RMS Digital Multimeter
Prévention de la fraude : votre paiement est sûr et sécurisé.
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.

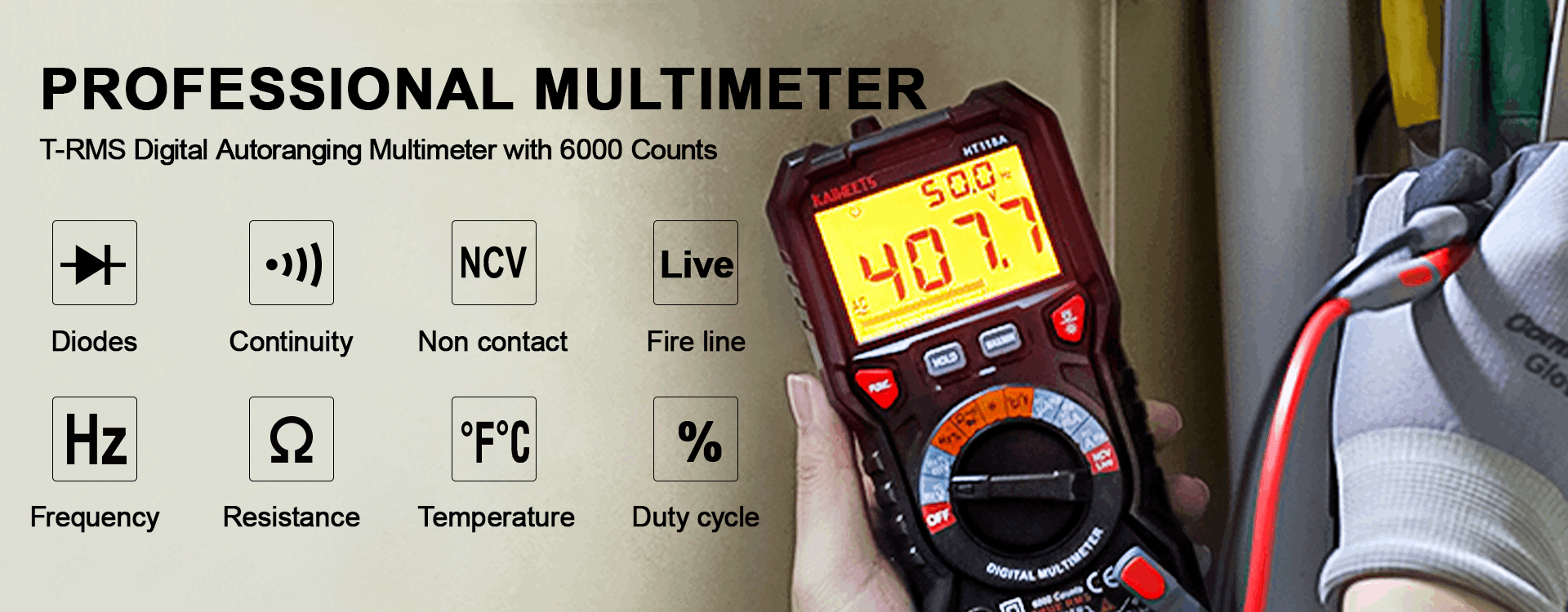

WIDE APPLICATIONS - KAIWEETS HT118A Multimeter measures up to 600V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance, electrical tester also tests temperature, capacitance, frequency, duty-cycle, wire on-off, and test diodes and continuity.
EASY OPERATION - Switch the dial to the function you need, and the LED lights on the jacks will shine accordingly. To plug in the leads is easy. Autoranging saves you the hassle of having to know which range of value. Large 2.9” LCD backlight display, easy-to-read digits offer a 6000-count resolution.
MULTI-FUNCTION - Non-contact voltage testing and Live function with sound and light alarm. Flashlight on the back ensures easy use in dimly lit places. Min/Max/Average to record signal fluctuations. Stable kickstand, Pen slot on the back, Low battery prompt, Data retention, Auto power-off.
SAFETY FIRST - IEC Rated CAT III 1000V, CAT IV 600V, CE, RoHS certified. Anti-Burn with double ceramic fuse and thermistor protection circuit. High Voltage Protection is active on all ranges. Double insulated unit. Silicone protective case prevents it from falling damage.
( Note: Please take off the cap before using the leads)
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+3) |
| AC Voltage | 600mV | ±(0.8%+3) |
| 6V/60V/600V/750V | ±(0.8%+3) | |
| DC Current | 600uA/6000uA/60mA/600mA | ±(1.0%+3) |
| 10A | ±(1.5%+3) | |
| AC Current | 600uA/6000uA/60mA/600mA | ±(1.0%+3) |
| 10A | ±(1.5%+3) | |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+5) |
| Capacitance | 10nF/100nF/1μF/10μF/100μF/1mF/10mF | ±(4.0%+3) |
| 100mF | ±(5.0%+3) | |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHZ/1MHz/10MHz | ±(1.0%+3) |
| Duty | 1%~99% | ±(1.0%+2) |
| Temperature | -40°C~1000°C | ±(1.0%+3) | -40°F~1832°F | ±(1.0%+3) |
1 x HT118A Digital Multimeter
2 x Test Leads
1 x User Manual
1 x Thermocouple
2 x AAA Batteries
Kaiweets HT118A Digital Multimeter
Sensitive Continuity Test
Loud buzzing sound
Resistance < 30Ω, green light
Resistance between 30Ω to 60Ω, red light
2.7 inch Display
Display turns to orange when voltage is over 80V.
Large, clear digits
Bar graph
Low battery indicator
Non-contact Voltage Detection
Non contact design for more safety. Just place the probe near outlets, sockets, terminals etc. to test voltage presence.
Maximum Safety
Dual fuse
Dual PTC thermistor
Intelligient Anti-Burn
Overload protection on all ranges.
Kaiweets HT118A Digital Multimeter
* Light up the terminals: LED indication light as input terminal guidance
* CAT III 1000V, CAT 600V safety rating
* Double insulation, robust outer case
* Includes test leads, K-Type thermocouple, batteries and user manual
