KAIWEETS KM100S Digital Multimeter
Fraud Prevention: Your Payment is Safe & Secure.
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.

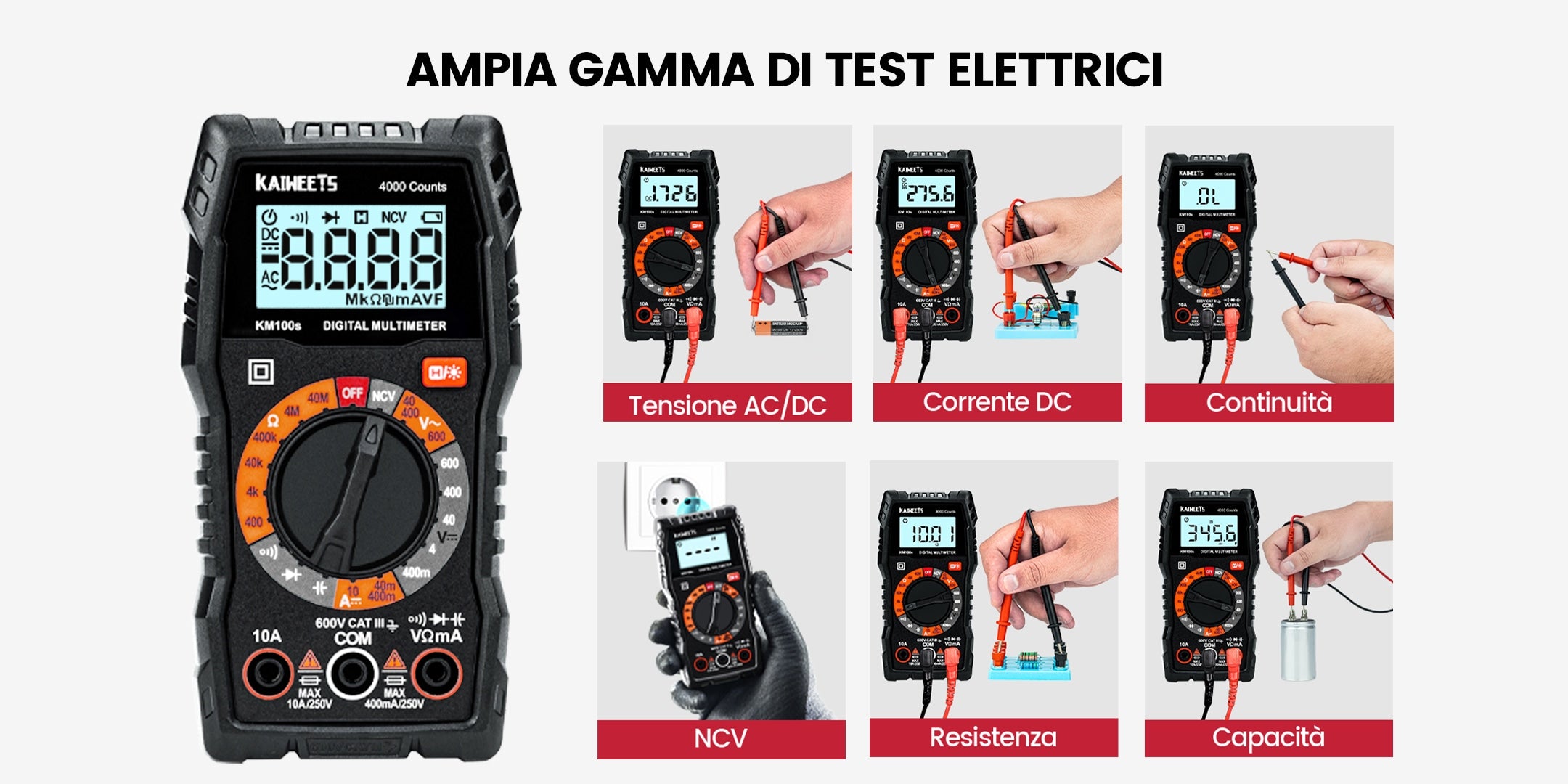

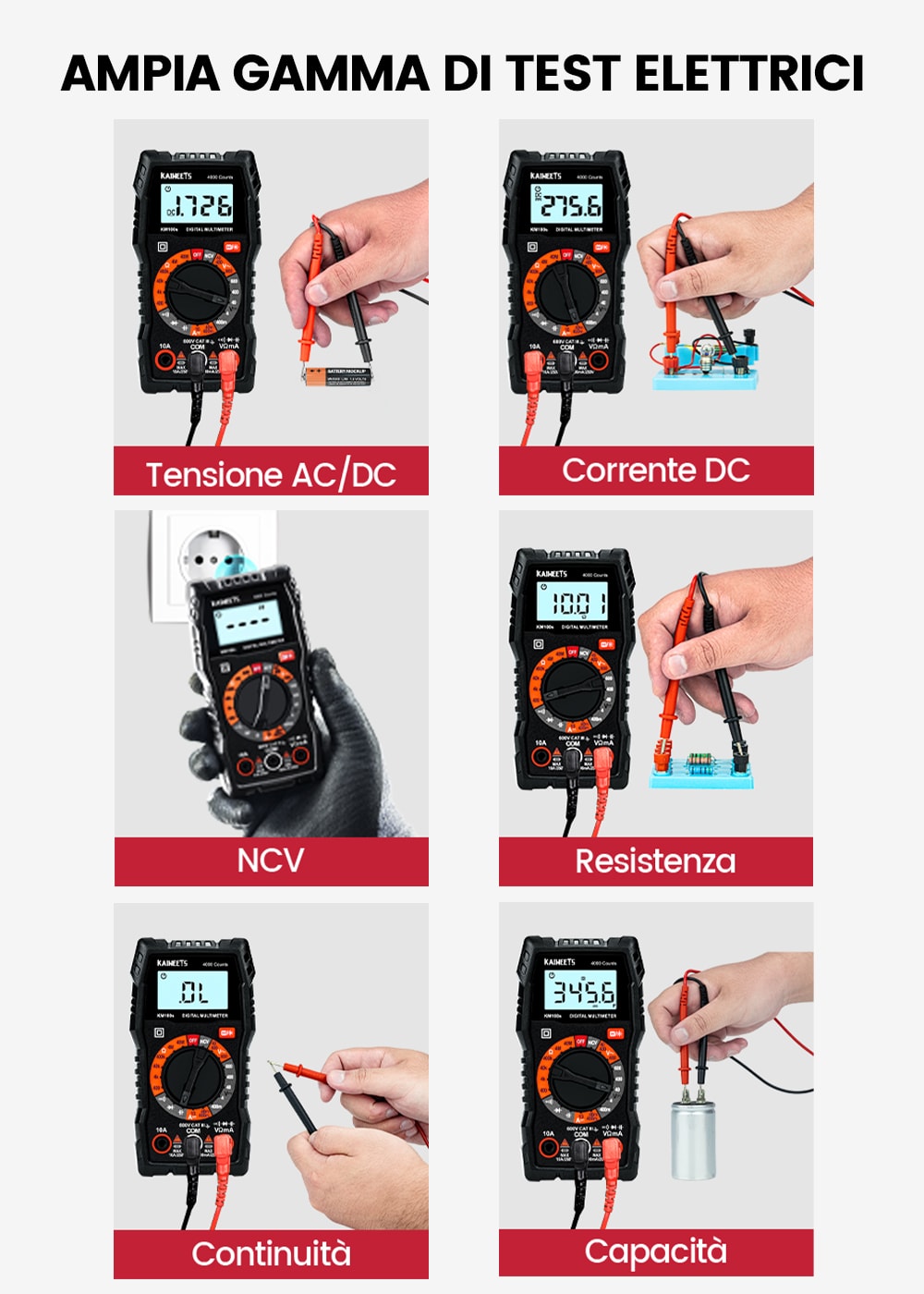

MULTI-FUNCTION: Providing readings for various electrical testing including AC and DC voltage, direct current (can not be used to measure AC current), resistance, continuity, and diode, so that be able to meet most electrical meter needs.
HANDY TEST: Functions like a low battery indicator, backlight, and data hold can be easy to test clearly in low-light or dimly lit conditions. Also, it comes with a foldable stand that can hold it in place, enhancing readability and hands-free operation.
SAFETY ASSURANCE: CAT III 600V meets safety standards. This meter is equipped with double fuses (F400mA/250V and F10A/250V) and overload protection on all ranges, ensuring the electric tester’s safe usage and longevity.
WIDELY USED: Suitable for a variety of occasions, whether it is used for household, automotive, or industrial electrical issues.
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 200mV/2V/20V/200V/600V | ±(1.0%+5) |
| AC Voltage | 20V/200V/600V | ±(1.2%+5) |
| DC Current | 20mA/200mA | ±(1.5%+5) |
| 10A | ±(2.0%+5) | |
| Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ | ±(1.2%+5) |
| Capacitance | 4nF/40nF/400nF/4UF/40UF/400uF/4mF/40mF | ±(4.0%+5) |
- 1 x KM100s Multimeter
- 2 x Test Leads
- 1 x Instruction Manual
- USER MANUAL
- Download
Backlit Function
Clear visibility, even in the dark.
Low Battery Indication
The low battery indicator alerts you when the battery power is running low.
Anti-slip Line Design
Enhance grip and reduce the risk of accidental drops with the non-slip line design.
Ensure Safety
Anti-burn with double fuses and protection circuit can protect yourself and your equipment.
