How to Test a Power Window Switch with a Multimeter

How To Use a DC Power Supply Reading How to Test a Power Window Switch with a Multimeter 8 minutes Next How to Use a Multimeter to Test an Outlet

A power window switch is a switch that controls the movement of a car's window. It is usually located on the driver's side door panel. There are two types of power window switches: momentary and latching. A momentary switch will only stay in the "on" position while the button is being pressed. A latching switch will remain in the "on" position even after the button is released.

In this article, we'll learn how to test a power window switch with a multimeter. This is a simple and easy process that anyone can do, so let's get started!

What is a power window switch and what does it do?

A power window switch is a switch that controls the electric windows in a vehicle. It is usually located on the center console near the driver's seat. The power window switch allows the driver or front passenger to control all the electric windows in the vehicle at the same time. It also has a lock button which prevents the windows from being opened or closed when it is engaged.

The power window switch is a very important safety feature in a vehicle as it prevents children and pets from being able to open the windows and fall out. It also helps to keep thieves from being able to break into your vehicle by opening the window and reaching in.

If your power window switch is not working properly, it is important to have it repaired or replaced as soon as possible. A broken power window switch can be a very dangerous safety hazard.

First, you'll need to gather a few tools:

Next, follow these steps:

  1. Turn off the power to the window switch.
  2. Remove the door panel or trim piece to access the switch.

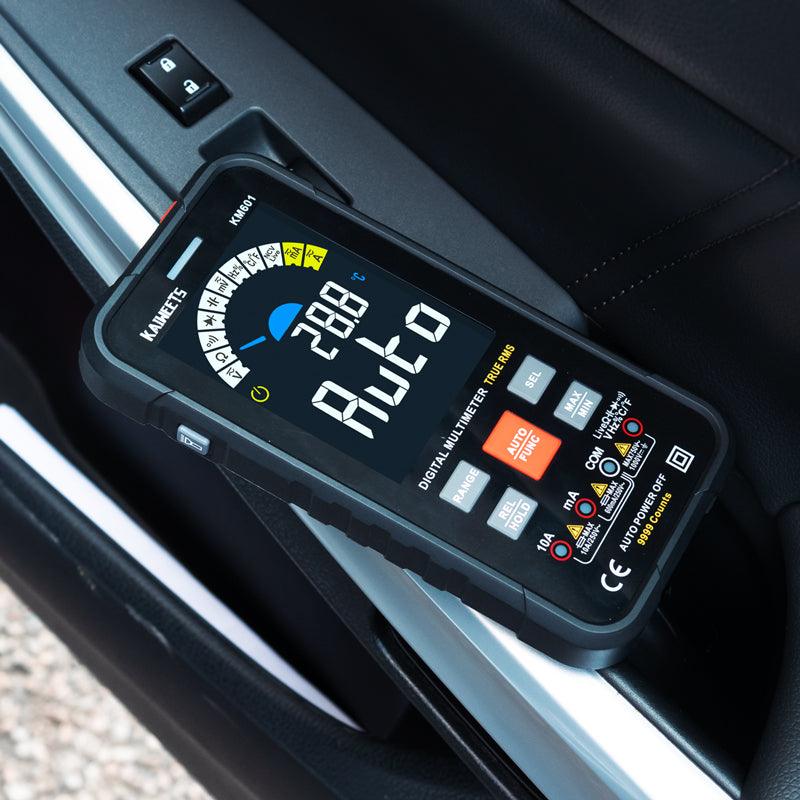

  3. Test the continuity of the switch by attaching the kaiweets digital multimeterleads to the two terminals on the switch.
  4. If there is continuity, then the switch is good and you can move on to testing the wiring.
  5. If there is no continuity, then the switch is bad and will need to be replaced.
  6. To test the wiring, first disconnect the negative battery terminal.
  7. Then, using the test light, check for power at the terminal on the switch that does not have continuity.
  8. If there is power, then the problem is with the other terminal or the window motor.
  9. If there is no power, then the problem is in the wiring between the switch and the battery.

With these simple steps, you can easily test a power window switch with a multimeter!

Common problems with power window switches:

These are the common problems that occur with power window switches:

  1. The switch does not work at all.
  2. The switch works intermittently.
  3. The switch works, but the window does not move.
  4. The window moves slowly or with a jerky motion.
  5. The window goes up or down on its own.
  6. The switch is hot to the touch.
  7. Water has gotten into the switch area and caused it to short out.
  8. The plastic housing around the switch has cracked or broken.
  9. The switch has become loose and is rattling around inside the door panel.

If you are experiencing any of these problems, it is best to take your car to a mechanic or dealership to have the power window switch replaced. In some cases, it may be possible to clean or repair the switch, but this is usually not the most effective solution.

Tips for preventing problems with your power windows:

In today's world, power windows are a common feature in many vehicles. However, as with any other feature in your car, they can sometimes have problems. Here are a few tips to help prevent problems with your power windows:

  1. Avoid using them during extreme weather conditions. If it's extremely cold outside, for example, the window may freeze and become difficult to operate. Similarly, if it's very hot outside, the window may become warped and also become difficult to operate.
  2. Be careful when closing the window. Make sure that nothing is blocking the path of the window as it closes, such as a piece of clothing or your hand. Otherwise, the window could get damaged or even break.
  3. Keep the window clean. A dirty window can make it more difficult to see out of, which can be dangerous. It can also make the window less smooth to operate.
  4. Be careful when opening and closing the window if there are people or animals nearby. If the window comes down on someone's fingers, for example, it could cause serious injury.
  5. If you have any trouble with your power windows, don't try to fix them yourself. Take the car to a qualified mechanic or dealership so they can properly diagnose and fix the problem.

Frequently Asked Questions:

How can I tell if my power window switch is damaged?

There are a few things that can go wrong with your power window switch, and it can be difficult to troubleshoot the issue without specific symptoms to guide you. If your power windows are not functioning properly, the first thing you should check is the fuse. If the fuse is blown, replace it and see if that fixes the problem. If the fuse is not the issue, then it's likely that the power window switch itself is faulty.

There are a few ways to test whether or not the power window switch is bad. First, try operating the windows from each door panel. If they all work fine except for the one controlled by the master switch, then chances are the master switch is bad. Another way to test the switch is to use a multimeter to check for continuity. If there is no continuity, then the switch needs to be replaced.

If your power windows are still not working after replacing the fuse and testing the switch, then there may be an issue with the window motor or the wiring. You'll need to consult a professional mechanic to diagnose and fix these issues.

How do you use a test light to test a window switch?

If your window switch isn't working, you can test it with a test light. First, disconnect the negative battery terminal. Next, remove the switch panel and locate the window switch. Using the test light, touch one probe to the ground wire terminal and the other probe to the power wire terminal. If the light comes on, then the switch is getting power and is working properly. However, if the light doesn't come on, then the switch may be defective and will need to be replaced.

Is there a fuse for each power window?

The answer to this question is determined by the model of your vehicle. Some vehicles have fuses for each power window, whereas others have a single fuse that controls all power windows. If your vehicle has multiple fuses for the power windows, each window is likely to have its dedicated circuit. This means that if one window stops working, it is most likely due to a problem with its circuit. If all of the windows stop working at the same time, the problem is most likely with the main fuse that controls all of the power windows. You can find out which type of fuse arrangement your car has by reviewing the owner's manual.

Conclusion:

In conclusion, testing a power window switch with a kaiweets digital multimeter is a relatively simple process. By following the above steps, you can easily determine if the switch is faulty and needs to be replaced. With a little practice, you should be able to test other types of switches as well. Thanks for reading!
