Smart Mode: KM601 multimeter defaults to Smart Mode. In Smart Mode, the meter can test automatically voltage, resistance, and continuity. It can identify fast the measurement content and selects the range with the best resolution, you don’t need to do anything extra!
Upgraded Display: The voltmeter with a large LCD color screen, and flashlight for easy reading even in bright or dim places. And the voltmeter can display an analog bar, real-time temperature, low battery prompt, and damaged fuse prompt.
Multiple Functions: KAIWEETS digital multimeter KM601 can accurately measure AC/DC voltage, AC/DC current, and 10A current, and can also be used to test continuity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire. With this smart digital voltmeter, you can solve industrial, vehicle, and household electrical problems.
Ensure Safety: (1) The multimeter is certified with CE and RoHS. (2) The design and manufacture of the instrument strictly comply with IEC61010-1 CAT III 1000V, CAT IV 600V overvoltage safety standards, and pollution level two. (3) The silicone cover can protect the multimeter from wear and electric shock. (4) The dual ceramic fuses, which have anti-burn and overload protection functions, can effectively protect the multimeter.
Quality Service: KAIWEETS provides free shipping, 30 days return, 3-year after-sales service, and lifetime technical support for this item.
Related Blog: How To Test A Battery With A Multimeter
Smart Mode: KM601s This smart multimeter enters smart mode by default. In smart mode, the voltmeter automatically measures voltage, resistance, and continuity. It can identify the measurement content and select the range with the best resolution, making the measurement more convenient and faster.
Upgraded Version: Easily Use. This multimeter tester has a rechargeable function and a built-in 1200mAh battery. The meter lasts longer. And it is more convenient that you no longer need to manually replace the battery. In addition, a retractable bracket is added on the back of the meter.
Wide Application: The smart digital multimeter is suitable for diagnosing automotive, industrial, and household electrical problems. The multimeter can accurately measure AC and DC voltage, resistance, continuity, AC and DC current, capacitance, frequency, diode, duty cycle, temperature, NCV, and live wire.
Safety First: This smart multimeter is manufactured to meet the IEC rating CAT.III 1000V, CAT.IV 600V. Obtained CE and RoHS certifications. Anti-burn with double fuse and overload protection. The silicone case provides additional drop protection and electric shock protection.
- Item Weight
- 0.49 KG
- Product Dimensions
- 6.5 x 4.37 x 2.13 inches
- 6 AAA batteries included
- Performance Description
- 2 colors LCD screen, True RMS
- Safety Level/Certification
- IEC-61010-1 CATⅢ 1000V, CAT IV 600V, double insulation
- ▲ Voltage tester
▲ Large range measuring tool
▲ Frequency multimeter
▲ Diode electronic tester
▲ Capacitance digital meter
▲ Ohm meter
- Upgraded Specification
● DC Voltage: 99.99mV/999.9mV; 9.999V/99.9V/1000V ±(0.5%+3)
● AC Voltage: 99.9mV/999.9/mV; 9.999V/99.9V/750V ±(0.8%+3)
● DC Current: 9.999mA/99.99mA/999.9mA ±(0.8%+3); 9.99A ±(1.2%+3)
● AC Current: 9.999mA/99.99mA/999.9mA ±(1.0%+3); 9.99A ±(1.5%+3)
● Resistance: 999.9ohm/9.999k/99.99k/ 999.9kohm ±(0.8%+3); 9.999m/99.99mOhm ±(1.2%+3)
● Capacitance: 9.999/99.99/999.9nF/9.999/99.99/ 999.9uF ±(4.0%+3); 9.999mF/99.99mF ±(5.0%+5)
● Frequency: 99.99/999.9/9.999k/99.99k/999.9kHz/ 9.999mHz ±(1.0%+3)
● Duty: 01.%-99.99% ±(1.0%+2)
Easy Switch Between Smart & Manual Mode
Press 'FUNC' button to turn on manual mode. Press and hold to switch back to SMART mode, In the SMART mode, the meter can test DC voltage, AC voltage, resistance, continuity.
As an auto-ranging digital multimeter, KM601 is designed to be smarter and more user-friendly than a traditional multimeter.

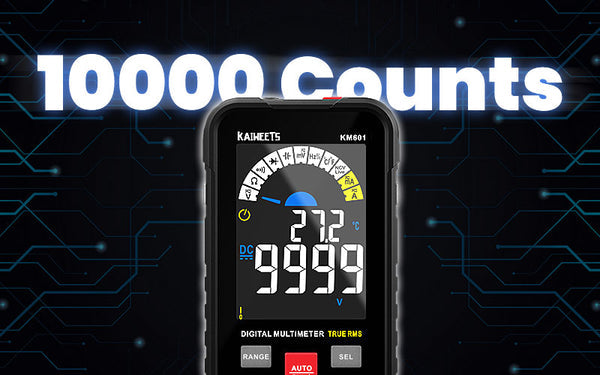

10000 Counts True-RMS Meter
Kaiweets 10000 Counts True-RMS Meter - KM601 can accurate measurements, even on non-linear loads.
LED Lightning Jacks
The light above the corresponding jack will flash intelligently to help you insert the test leads.
Error Reminder & Auto-Lock
If the test leads are connected wrongly during the mA testing, the red indicator light will be lit up and the screen will display the "LEAD" signal.
mA test function cannot be switched after the test leads are connected firmly.
It can be used to test continuity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire.

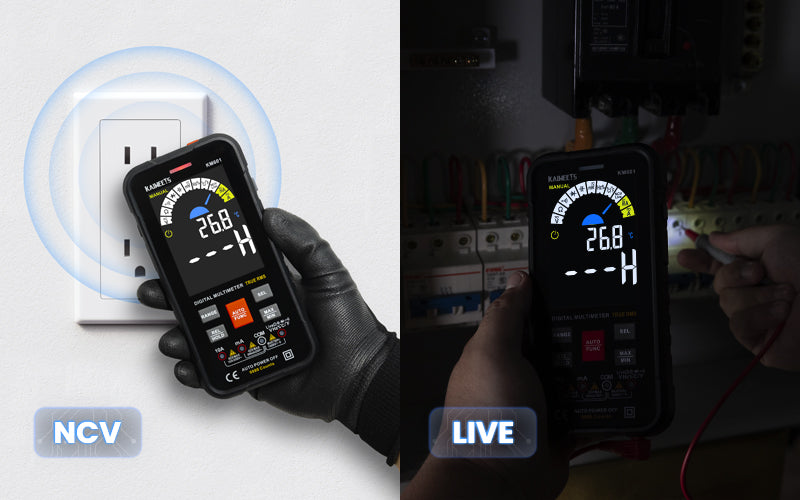

NCV Detection & Detects Live Wires
Audible and visual indication of non-contact AC voltage testing and live wires testing. Quickly checks for the presence of live voltage.
When the indicator light is on, it means there is voltage. Please pay attention to your safety.
Detects Live Wires
Live wire testing with the red test lead. When it detects a live wire, Kaiweets KM601 smart multi-meter will reflect with the audio alarm.
Fuse Blown Reminder & Temperature Measurement
Fuse Blown Reminder
Our KM601 multimeter has fuse overload protection (do not exceed 1000V). CAT.III 1000V, CAT.IV 600V overvoltage safety standards and pollution level 2.
Kaiweets KM601 also has a real-time temperature display. Test liquid temperature from -40°F ~ +1832°F/-40°C ~ +1000°C.
Portable & Best Size Design
Larger display screen - 3.54 inch, KM601 smart multimeter is designed to portable size (total 6.5 inches) for easy carrying.
The built-in flashlight is a great touch and the big lighted display is easy on the eyes.

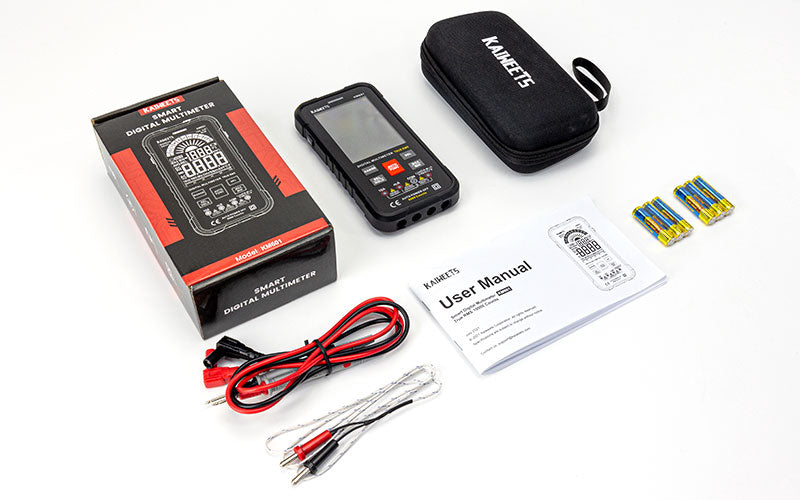

What Do You Get?
1 x KAIWEETS KM601 Multimeter
2 x Test Leads
1 x K-Type Thermocouple
6 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Multimeter Bag
1 x Packing Box
Fuse installation tutorial
If the fuse blows due to improper use of the product, please refer to the installation tutorial example in the picture.
