True-RMS clamp meter: This multimeter can accurately measure AC/DC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, and Capacitance and also provides Diode, Continuity, and Temperature tests. True RMS for accurate measurements on non-linear loads.
Low & LPF: Low input impedance helps prevent false readings due to ghost voltage. Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals when measuring motors and transformers. To measure the current, you need to clamp the meter around one of the wires and not the whole power cord.
NCV Detection Function: Non-contact voltage detection effectively checks the electrical status by measuring EM field intensity without touching any wires.
Multi-function: Two-color backlit LCD Display - When the voltage is> 80V, the current is > 3A, and the LCD backlit screen turns red to warn you of high voltage.
- Item Weight
- 0.22 KG
- Product Dimensions
- 7.5 x 2.8 x 1.3 inches
- 2 AAA batteries required
- 600.00 volts

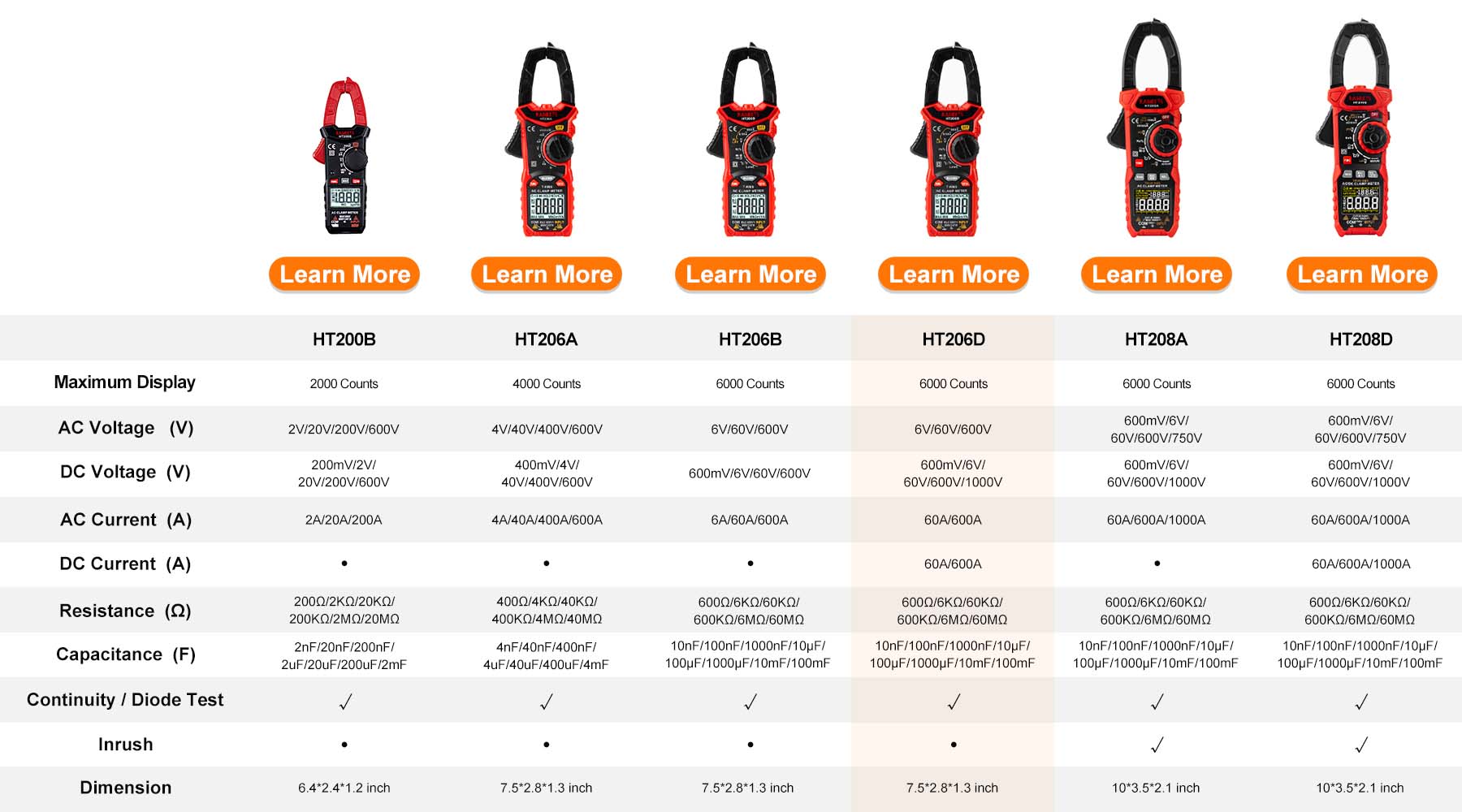

- Upgraded Specification
● DC Voltage: 600mV/6V/60V/600V
● AC Voltage: 6V/60V/600V
● DC Current: 60A/600A
● AC Current: 60A/600A
● Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
● Capacitance: 10nF/100nF/1mF/10mF/100mF/1mF/ 10mF/100mF
Accurately measure resistance, capacitance, diode, and continuity. Easy to use in laboratory factories and homes.

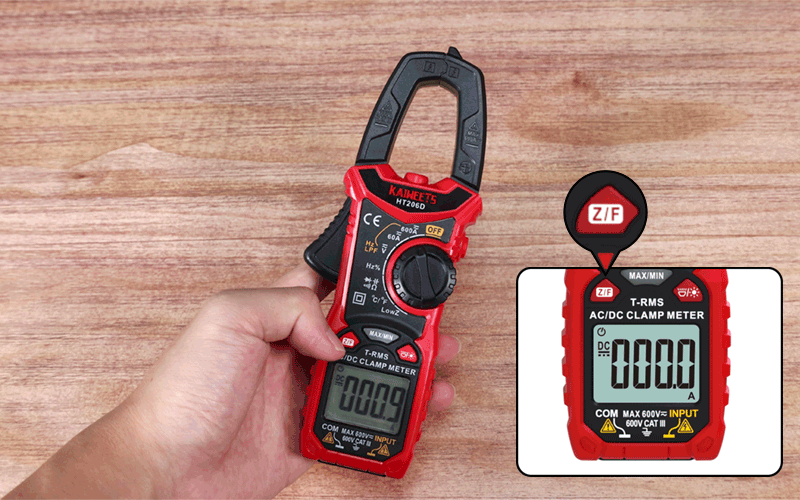

Z/F Button Measurement
Press the "Z/F" button to switch the respective secondary function between the different measurements, such as between AC and DC.
If current> 3A, the orange display lights up.
The measuring range of AC current is 60A/600A. Accuracy: ±(2.5%+5).
In the real scene
To measure the current, you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying current and a ground wire. The current in two wires always flows in opposite directions, so the magnetic fields from the two wires cancel each other; therefore, the meter reads 0 A.
Grasp the individual current conductor to be measured and close the current clamp again. The measured conductor must be placed in the center of the clamp; otherwise, additional errors will occur.

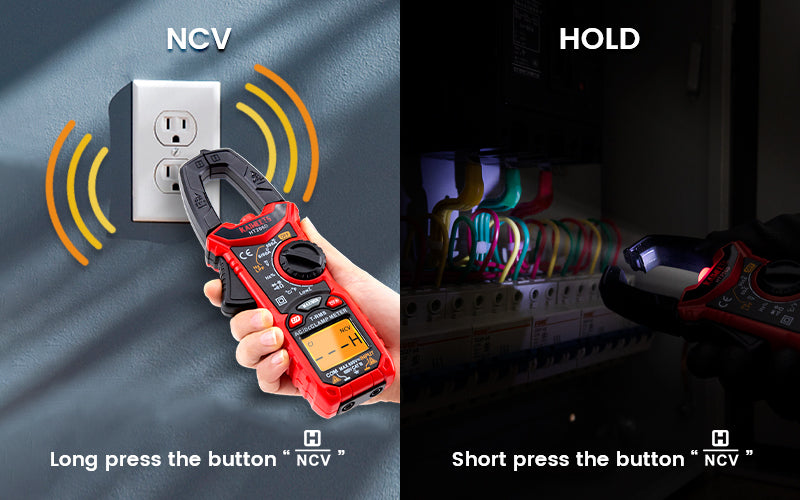

NCV Detection Function
Non-contact voltage detection effectively checks the electrical status by measuring EM field intensity without touching any wires; The NCV button lies on the right side. Simply place your thumb on it and push.
If there is no operation in 15 minutes, the meter will beep 3 times, indicating Auto Power Off; with no further operation in 30 seconds, the meter beeps again and automatically shuts down.

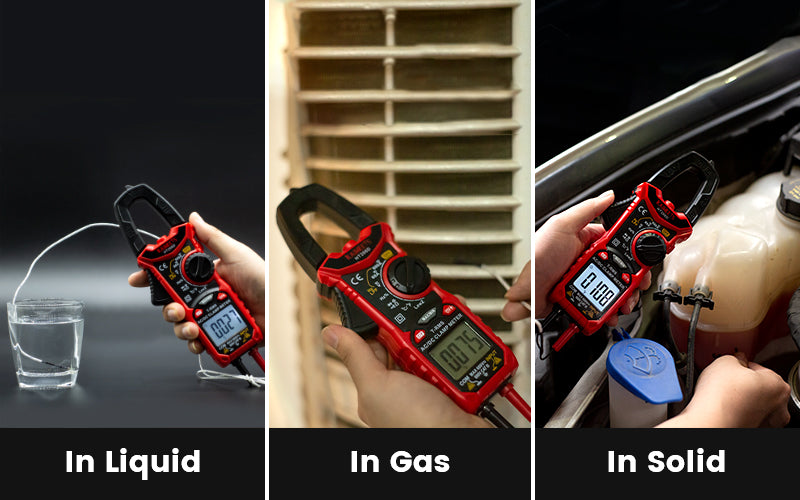

The K-type thermocouple included
What Do You Get?
1 x KAIWEETS Digital Clamp Meter
2 x Test Leads
1 x K-Type Thermocouple
2 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Clamp Meter Bag
1 x Packing Box
