KAIWEETS ST600Y Digital Smart Multimeter 6000 Counts True-RMS
Prevenzione delle frodi: il tuo pagamento è sicuro e protetto.
Auto Mode: It has an ‘auto’ setting that allows it to automatically recognize what it's measuring and act accordingly, for the most common measurements, Volts AC or DC, resistance, or continuity. All you need to do in this smart mode is attach the probes, and it will work.
Multi-Function: The ST600 multimeter can measure max 600V AC/DC voltage, 10A AC/DC current, and 60M Ohms resistance, the tester also tests temperature, capacitance, frequency, duty-cycle, wire on-off, diodes, and continuity.
Upgraded & Convenient: Replace the gear knob with 2 buttons, and use it as a smartphone. More convenient than a meter with only 1 function button, you can manually select the function to the left or right. The jack is on the front, so the multimeter can be placed upright.
Colored Indication (ST600Y only): With an LCD screen that is bright and clear. Different colors separate readings from functions and make the results easier to record. It has a red light at the back, an indicator light on the top, and 3 flashing lights on the port, easy to use.
Related Blog: How to use a Multimeter
- SPECIFICATION
- Item Weight
- 0.40 KG
- Product Dimensions
- 113 x 68 x 19 mm
- Batteries
- 4 AAA batteries required (included)
- Performance Description
- HD Color Display, True RMS
- Safety Level/Certification
- IEC-61010-1 CATⅢ 1000V, CAT IV 600V, double insulation
- Usage
- ▲ Voltage tester
▲ Large range measuring tool
▲ Frequency multimeter
▲ Diode electronic tester
▲ Capacitance digital meter
▲ Ohm meter - Upgraded Specification
-
● DC Voltage: 600mV/6V/60V/600V±(0.5%+3)
● AC Voltage: 6V/60V/600V/750V±(0.8%+5)
● DC Current: 600mA/6A/10A ±(1.2%+3)
● AC Current: 600mA/6A/10A ±(1.2%+3)
● Resistance: 600/6k/60k/600kOHM ±(1.0%+5)

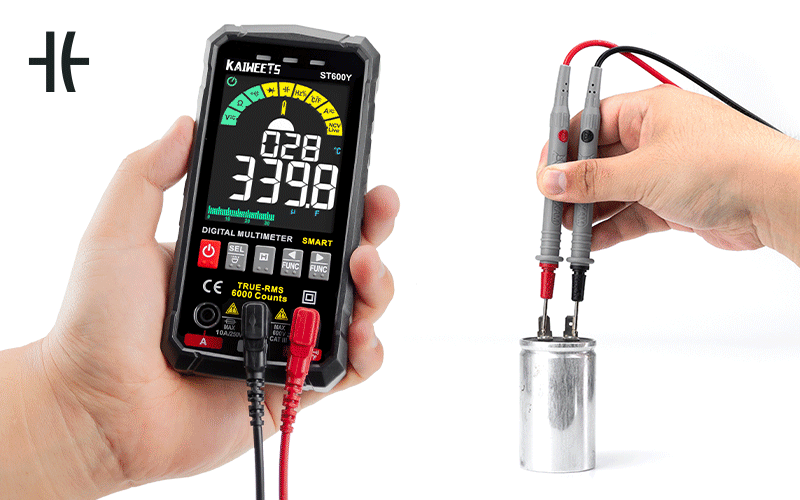

● Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF ±(4.0%+5); 6mF/60mF ±(5.0%+5)
● Frequency: 16Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0%+3)
● Duty: 1.0%-99.0% ±(1.0%+3)
● Temperature: -40~1000°C; -40-1832°F 2°C
Left and Right Switching Function Buttons
New design function ◀ buttons ▶ for manual mode. Quickly select and switch what function you need.

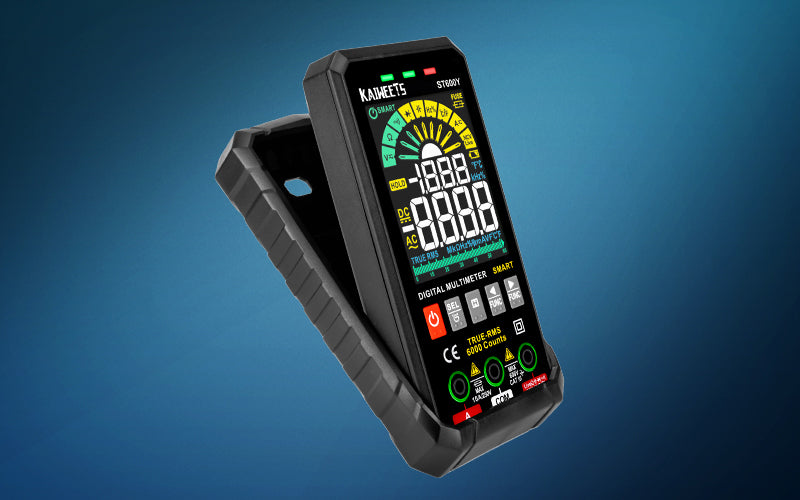

Silicone Protective Cover
The product’s dual ceramic fuses and silicone cover prevent burning, overloading, or electric shock.
Voltmeter Kit: IEC61010-1 CAT.III 600V overvoltage safety standards and pollution level 2. Overload protection on all ranges.

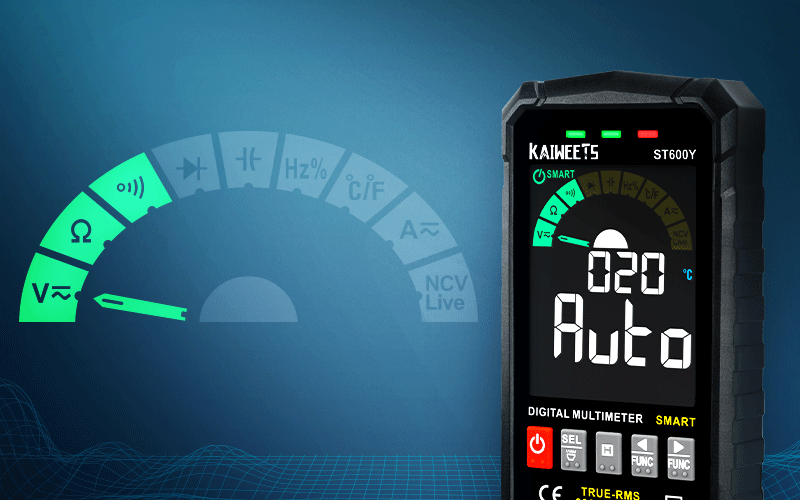

Easy Switch Between Smart Mode and Manual Mode
Press to turn on manual mode. Press and hold to switch back to SMART mode.
A "smart" mode means it will automatically select the correct settings for the operation between volts (DC or AC), ohms, and continuity test.
Multiple Functions
Convenient to work in a dark environment. When the tester is on, press the key to turn on the flashlight; when the flashlight is on, press again to turn it off.It can be used to test continuity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire.
Auto-ranging/ TRMS / Data Hold/ Auto power-off / Flashlight /Low battery indication/ Damaged fuse prompt.
Temperature Test: A thermocouple is also included. You can test liquid temperature from -40°F ~ +1832°F/-40°C ~ +1000°C.

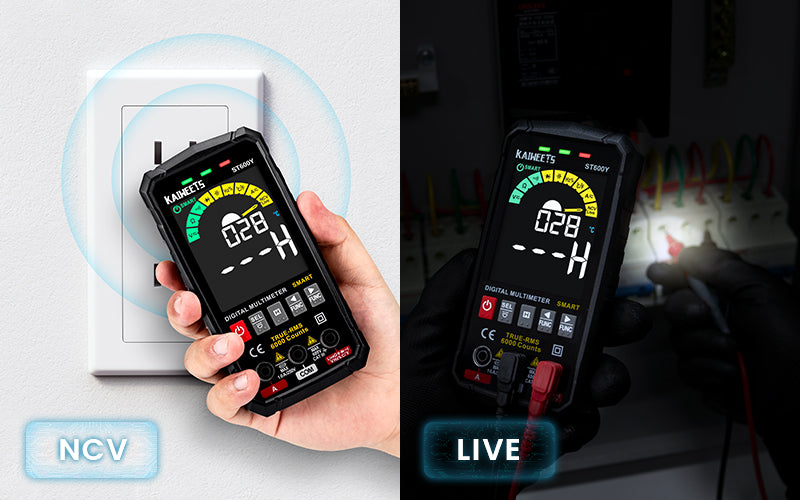

NCV Detection & Detects Live Wires
NCV Detection
When the indicator light is on, it means there is voltage. Please pay attention to your safety
Detects Live Wires
Live wire testing with the red test lead. When it detects a live wire, the clamp meter will reflect with the audio alarm.

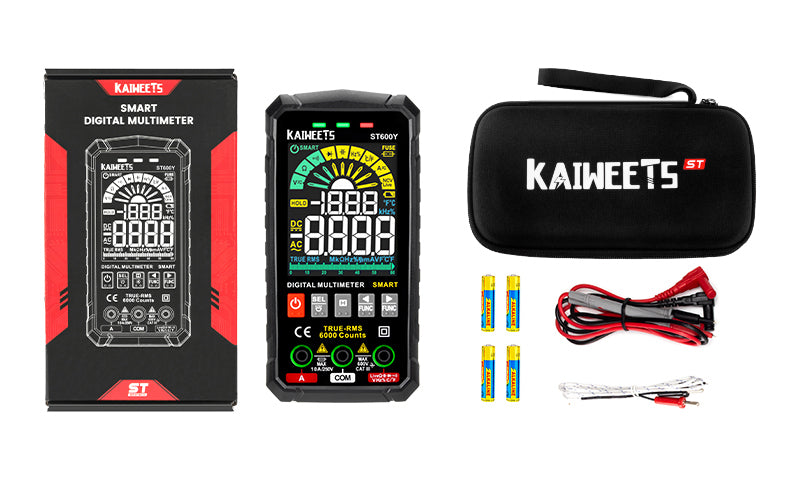

What Do You Get?
1 x KAIWEETS VT500 Voltage Tester
1 x AAA Batteries (Assembly Required)
1 x User Manual1 x KAIWEETS ST600Y Multimeter
2 x Test Leads
1 x K-Type Thermocouple
4 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Multimeter Bag
1 x Packing Box
