KAIWEETS HT113B Digital Multimeter - Max 600V 10A 40MΩ
Prevenzione delle frodi: il tuo pagamento è sicuro e protetto.
Range: KAIWEETS Digital Multimeter measures AC/DC voltage up to 600V, AC/DC current up to 10A, and resistance up to 40MΩ.
Function: Voltage Meter, Current Meter, Non-contact voltage tester, Capacitance meter, Continuity tester, Diode tests, Battery tests; 4000 Counts, Auto-ranging, TRMS, Data Hold, Auto power-off.
Safety Level: EN61010-2-030 EN61010-2-033 CAT III 600V. Silicone protective case, 10A/ fuse, Anti-high voltage circuit design.
Easy to Operate: Backlight screen. LED backlight to work in poorly lit areas.
- USER MANUAL
- Download
- PATENT CERTIFICATE
- → CE EMC-certificate
- → LVD-Certificate
- → LVD-Certificate
- → LVD-Test Report
- SPECIFICATION
- Item Weight
- 0.35 KG
- Product Dimensions
- 5.91 x 2.76 x 1.97 inches
- Batteries
- 2 AAA batteries required (included)
- Overload Display
- Display OL
- Safety Level/Certification
- IEC-61010-1 CATⅢ 600V, double insulation
- Upgraded Specification
-
▲ DC Voltage: 400mV/4V/40V/400V/600V±(0.5%+3)
▲ AC Voltage: 400mV/4V/40V/400V/600V±(1.0%+3)
▲ DC Current: 400uA/4000uA/40mA/400mA±(1.2%+3); 10A±(2.0%+3)
▲ AC Current: 400uA/4000uA/40mA/400mA±(1.5%+3); 10A±(2.0%+3)
▲ Resistance: 400Ω/4KΩ/40KΩ/400KΩ±(1.0%+3); 4MΩ/40MΩ±(1.0%+3)
Kaiweets

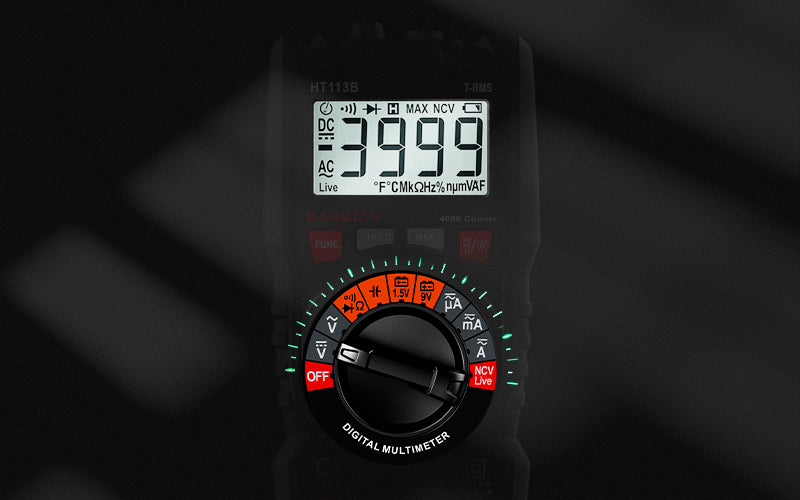

4000 Counts True-RMS Meter
Accurate measurements, even on non-linear loads
Kaiweets

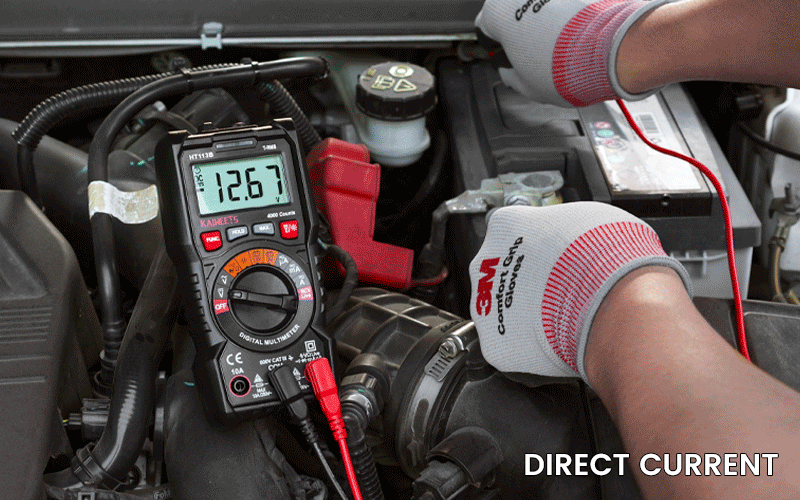

Wide Range of Uses
Car repair, industrial circuit inspection, home circuit check, battery testing, and so forth.
Kaiweets
Safety
IEC Rated CAT III 600V, CE, RoHS certified. Silicone protective case, 10A/ fuse, Anti-high voltage circuit design.
kaiweets

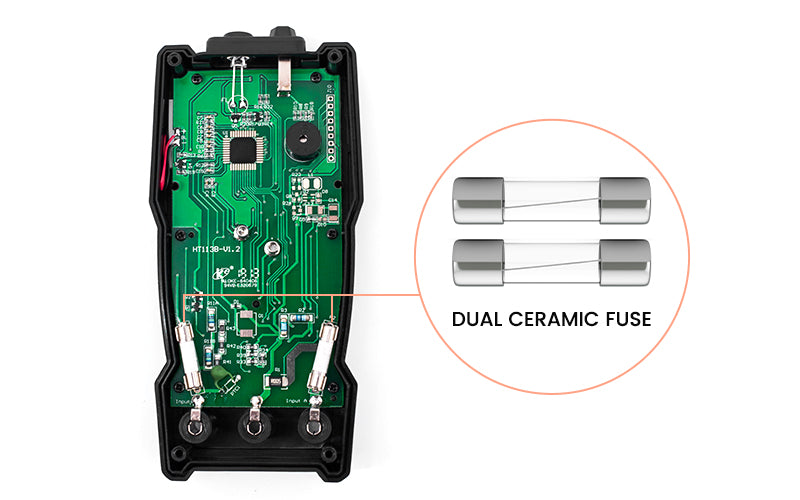

Dual Ceramic Fuse
Double fuse overload protection but please do not exceed 600V when measuring
kaiweets
Portable & Best Size Design
Larger display screen - 3.54 inch, KM601 smart multimeter is designed to portable size (total 6.5 inches) for easy carrying.
The built-in flashlight is a great touch and the big lighted display is easy on the eyes.
kaiweets
Auto Power off
Auto power-off after 15 minutes of inactivity to save power
Low Battery Indication
An indication will be given when the battery is low to replace the battery.
kaiweets

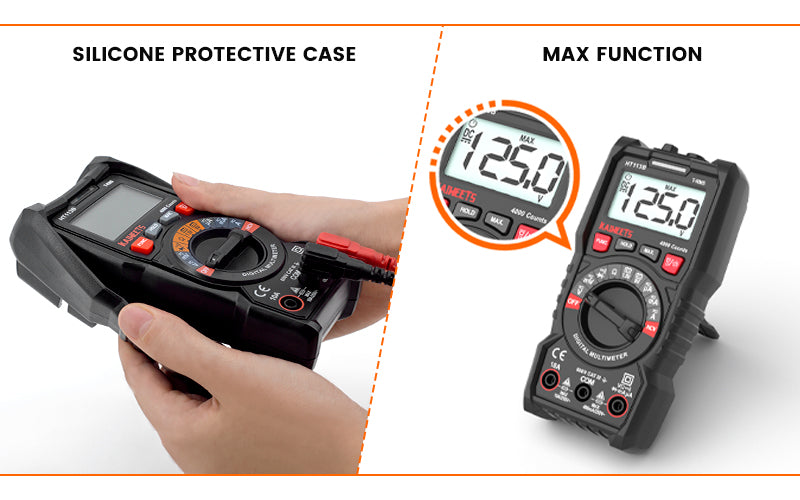

Silicone Protective Case
It can effectively prevent the meter from falling damage with a silicone protective case
Max Function
Press the "MAX" button to get the max data
kaiweets

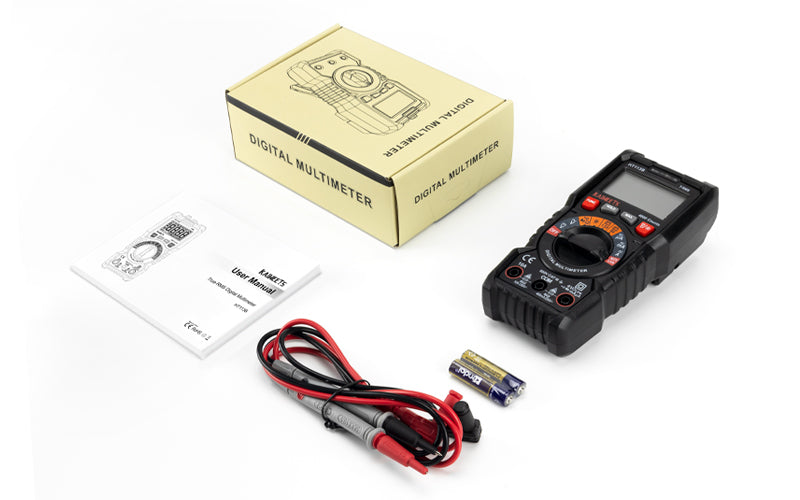

What Do You Get?
1 x Digital Multimeter
1 x Test Leads
2 x AAA Battery
1 x User Manual
