KAIWEETS KOTC01 Paint Thickness Gauge
Prevención de fraude: su pago es seguro y protegido.
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.
Automatic Recognition & Wide Measuring Range: The paint thickness gauge automatically recognizes the properties of the metal substrate and measures the thickness of its surface coating quickly and non-destructively. With a measuring range of up to 0~1700μm, it can measure thicker coatings and is stronger than other products on the market (0~1500μm).
4 Direction Rotating Screen & Rechargeability: The coating thickness gauge has a 2-inch HD color screen and 4-direction rotating function for easy viewing of data from different angles. Contains a lithium battery, can be charged directly, full battery life of 8 hours.
Functionality Upgrade: Data can be stored in 8 groups and every 32 sets of data, and presented in bar graph mode (automatic statistical data, easy to view, more intuitive analysis); upper and lower limits of the alarm function (checking the paint more quickly to determine whether it is normal); automatic shutdown function (5 kinds of time to choose, energy-saving and energy-saving, to extend the life of the machine).
Upgraded Calibration Mode: In addition to zero calibration and basic calibration, which are common in the market, a new specified thickness calibration function is added, which allows you to select the thickness for calibration as needed. It meets a variety of calibration needs, saves operation time, and makes measurements more accurate.
Wider Application&Premium Service: Thickness gauges are suitable for use in major industrial workshops, metalwork, laboratories, and outdoor environments, especially suited to the used car market (checking the thickness of paintwork when purchasing a used car to avoid buying a badly damaged vehicle). We offer a 3-year after-sales service and lifetime technical assistance. If you have any questions, please don't hesitate to contact us.
| KOTC01 | Parameters |
|---|---|
| Measuring Principle | Magnetic induction (F-probe) Eddy current (N-probe) |
| Measuring Units | µm mil |
| Measuring Range | 0~1700µm 0~66.93mil |
| Resolution | 0.1µm@(0~99.9µm) 1µm@(100~1700µm) |
| Accuracy | ±(2+2%*H)μm @ (0~500μm) ±(2.5%*H)μm @ (500~1700μm) |
| Measurement Modes | Single Continues |
| Min Curvature | convex 5mm concave 30mm |
| Min Substrate Thickness | Magnetic material 0.2mm Non-magnetic material 0.05mm |
| Display | 2-inch color screen | Rotating Screen | 4-direction | Data Storage | 8 groups and each 32 sets of data | Working Temp And Humidity | -20℃~60℃; 0%~80%RH | Storage Temp And Humidity | -20℃~60℃; 0%~70%RH |

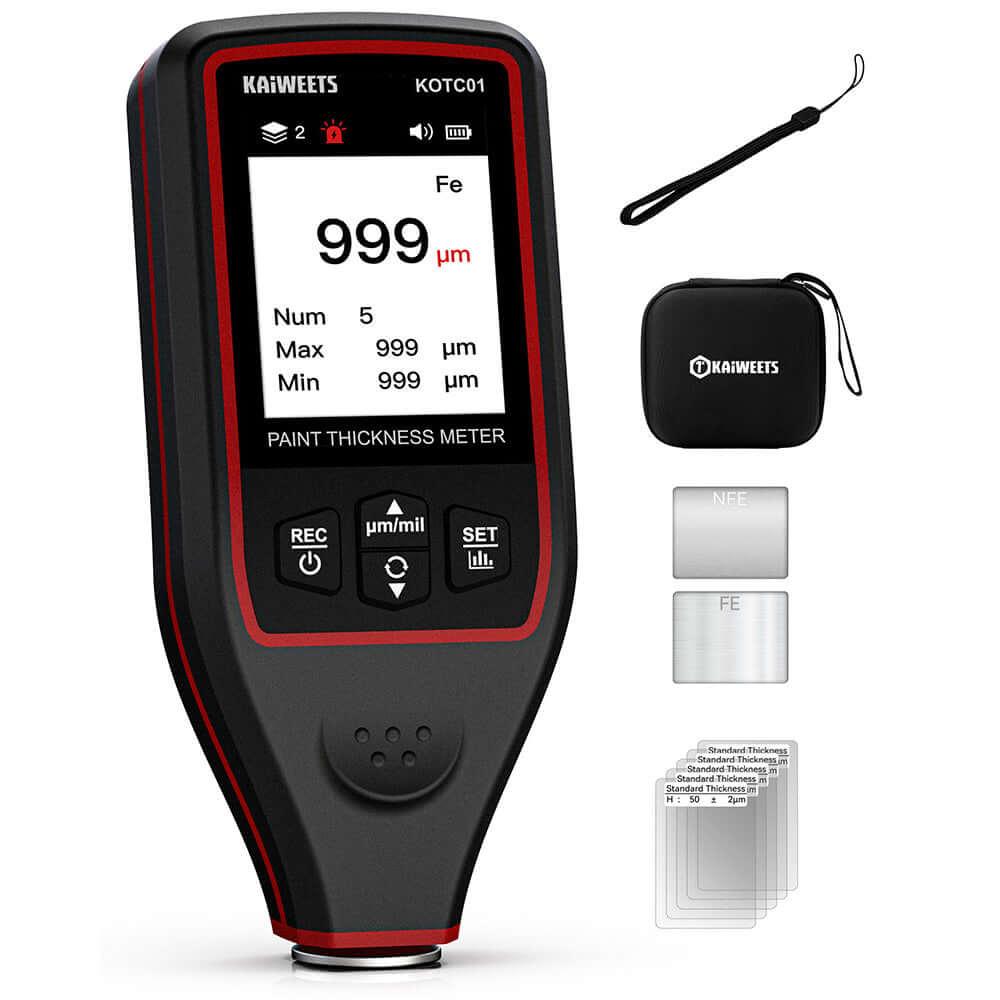

1 * KOTC01 Paint Thickness Gauge
1 * Type-C Cable
1 * Color box
1 * Cloth bag box
1 * Instruction manual
1 * Small PP box
5 * Calibration sheet
2 * Substrate
1 * Lanyard
USER MANUAL
