KAIWEETS HT206B Digital Clamp Meter for AC Current, AC/DC Voltage
Prevención de fraude: su pago es seguro y protegido.
True-RMS clamp meter: This voltage meter can accurately measure AC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, and Capacitance and also provides Diode, Continuity, and Temperature tests. True RMS for accurate measurements of non-linear loads.
Low & LPF: Low input impedance helps prevent false readings due to ghost voltage. Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals when measuring motors and transformers. To measure the current you need to clamp the meter around one of the wires and not the whole power cord.
NCV Defection Function: Non-contact voltage detection effectively check the electrical status by measuring EM field intensity without touching any wires.
Multi-function: Two-color backlit LCD Display - When the voltage is > 80V, the current is > 3A, and the LCD backlit screen turns red to warn you of high voltage.
- SPECIFICATION
- External Testing Certification
- IEC 61010-1, CAT III 600V
- Voltage
- 600.00
- Item Weight
- 0.22 KG
- Product Dimensions
- 8.94 x 4.65 x 1.81 inches
- Batteries
- 2 AAA batteries required(included)
- Material
- ABS
- Upgraded Specification
-
● DC Voltage: 600mV/6V/60V/600V
● AC Voltage: 6V/60V/600V
● AC Current:6A/60A/600A
● Resistance:600Ω/6kΩ/60kΩ/600kΩ/ 6MΩ/60MΩ
● Capacitance: 10nF/100nF/1mF/10mF/100mF/1mF/ 10mF/100mF
Kaiweets

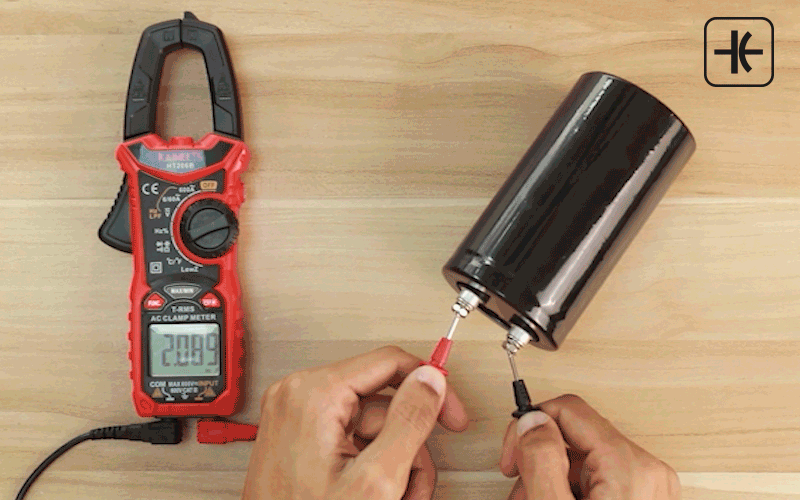

Multi-Function
Accurately measure resistance, capacitance, diode, continuity. Easy to use in laboratories, factories, and homes.
Kaiweets

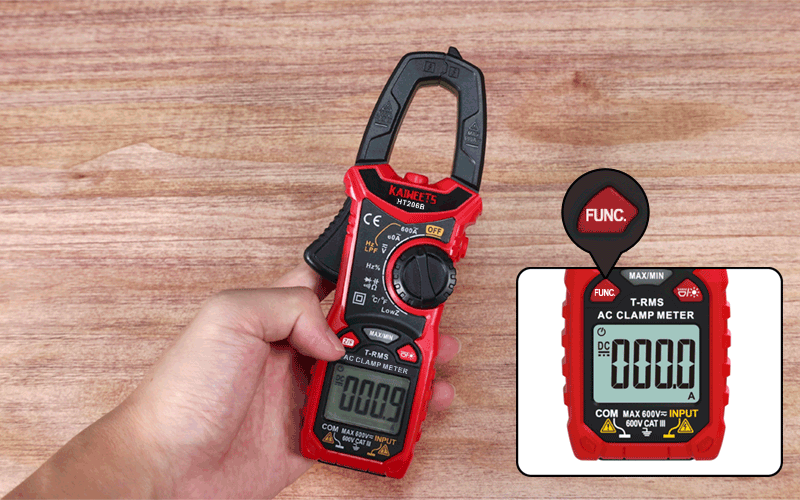

FUNC. Button Measurement
Press the "Func." button to switch the respective secondary function between the different measurements such as between AC and DC.
Kaiweets

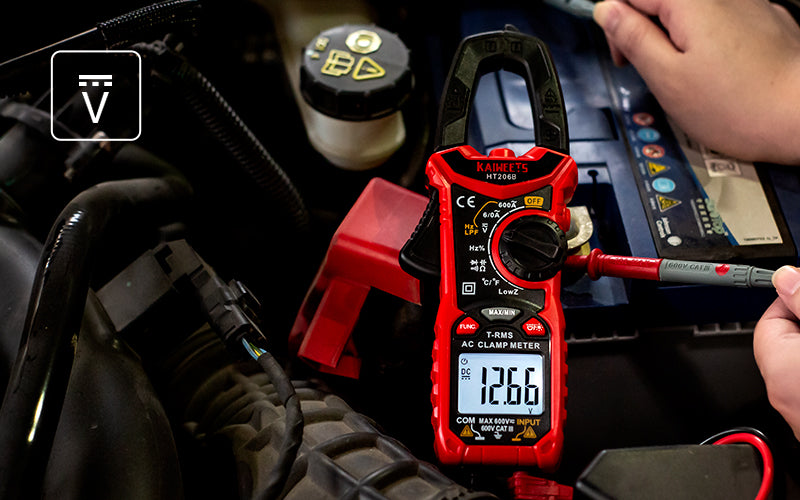

Specifications
Press the "FUNC." key to change the AC or DC voltage measurement.
If the voltage is> 80 V, the orange display lights up.
The measuring range of AC voltage is 6V/60V/600V. Accuracy: ±(1.0%+3).
The measuring range of DC voltage is 600mV/6V/60V/600V. Accuracy: ±(0.5%+3).
Note:
The voltage value needs to be measured using test leads; the clamp cannot be used directly.
Kaiweets

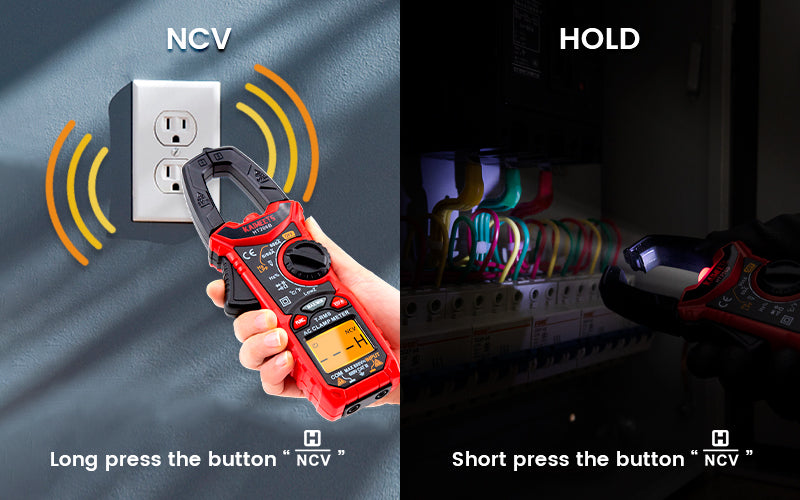

NCV Detection Function
Non-contact voltage detection effectively checks the electrical status by measuring EM field intensity without touching any wires; the NCV button lies on the right side. Simply place your thumb on it and push.
Kaiweets

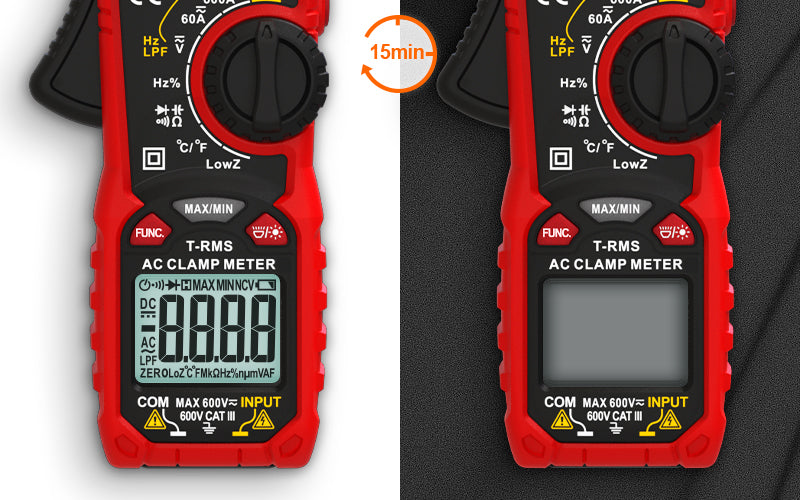

Automatic Shutdown
If no operation in 15 minutes, the meter will beep 3 times, indicating Auto Power Off; with no further operation in 30 seconds, the meter beeps again and automatically shuts down.
Kaiweets

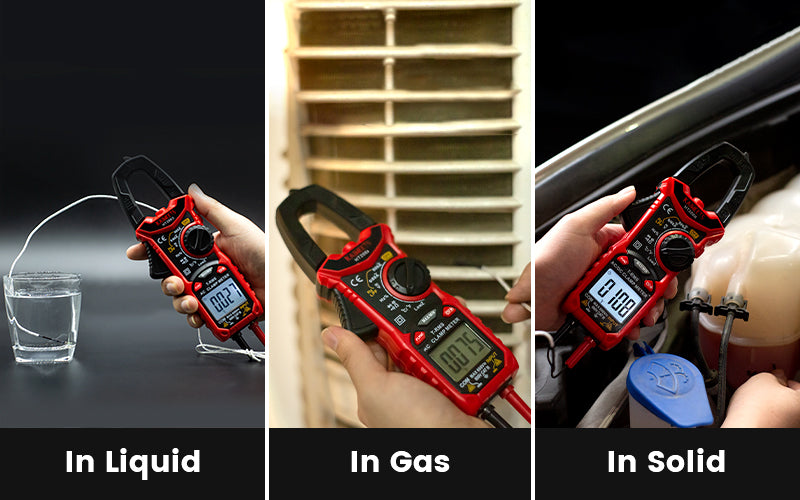

Temperature Measurement
Range: -4°F~1832°F
The K-type thermocouple included
Kaiweets

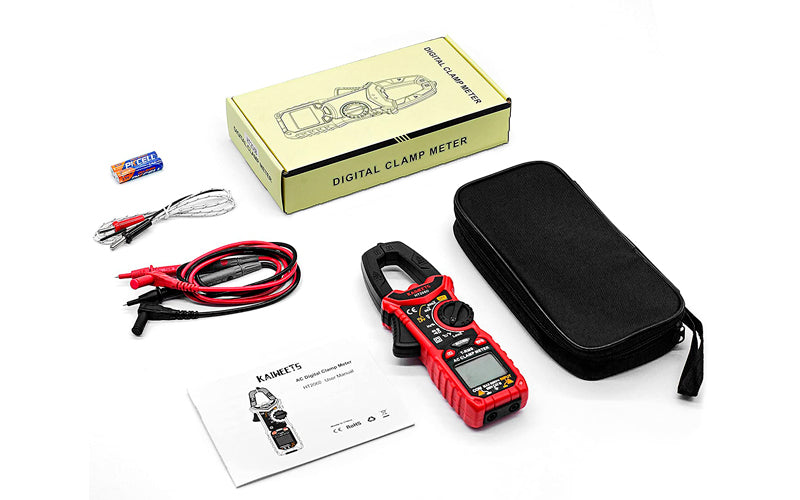

What Do You Get?
1 x KAIWEETS HT206B Clamp Meter
2 x Test Leads
1 x K-Type Thermocouples
2 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Clamp Meter Bag
1 x Packing Box
