KAIWEETS HT118E/A Digital AC/DC Multimeter - TRMS 20000 Counts
Fraud Prevention: Your Payment is Safe & Secure.
Higher Resolution - 20000 Counts: HT118E multimeter with more resolution bits allows for more accurate measurement results. The flashlight on the back ensures easy use in dimly lit places. Min/Max to record signal fluctuations. Stable kickstand, Pen slot on the back, Low battery prompt, Data retention, Auto power-off.
Wide Applications: Accurately measures AC/DC Voltage, AC/DC Current, Resistance, HT118E voltage tester also measures Temperature, Capacitance, Frequency, Duty-cycle, Diodes, Continuity, and NCV, Live with sound and light alarm. Suitable for Household Outlets, Fuses, Batteries (including Vehicles), Automotive Circuit Troubleshooting, Charging Systems, Testing electronics in Cars, etc.
Multi-function: Non-contact voltage testing and Live function with sound and light alarm. The screen changes to red while detecting live wire. Low battery prompt, Data retention, Max/Min data, Auto Power-Off, Auto-Ranging, Min/Max/Average to record signal fluctuations, Stable kickstand, Pen slot on the back, Bright flashlight.

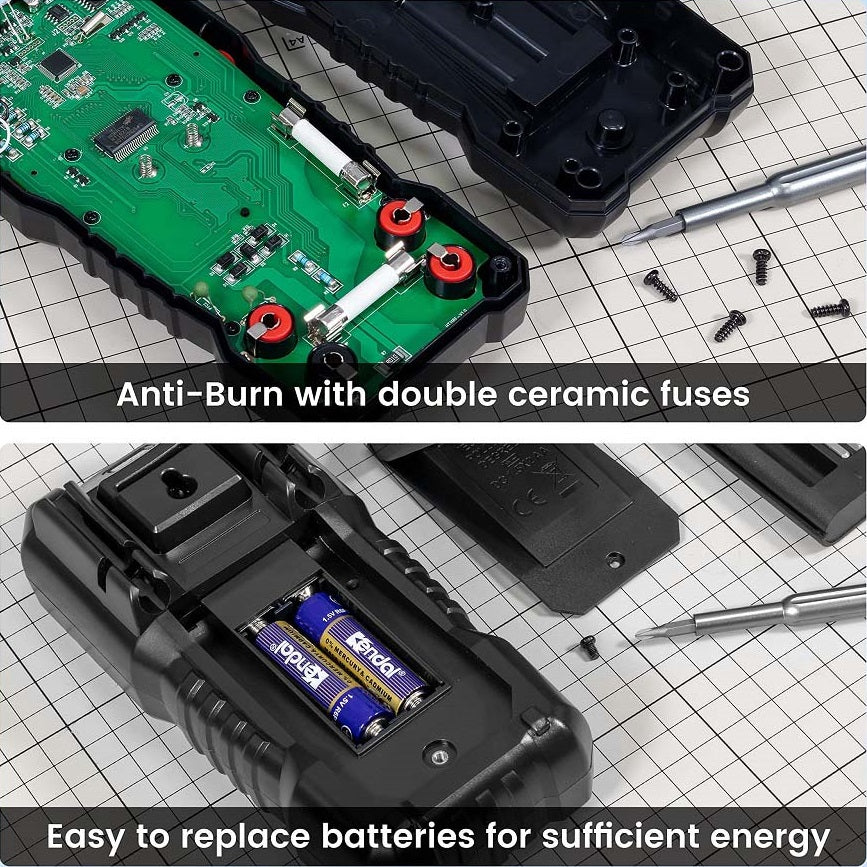

Safety First: IEC Rated CAT III 1000V, CAT IV 600V, CE, RoHS certified. Anti-Burn with double ceramic fuse and thermistor protection circuit. High Voltage Protection is active on all ranges. Double insulated unit. The silicone protective case prevents it from falling damage.
- USER MANUAL
- Download
- PATENT CERTIFICATE
- → CE EMC-Certificate
- → CE EMC-Test Report
- → LD01-Certificate
- → LD01-Test Report
- SPECIFICATION
- Item Weight
- 0.62 KG
- Product Dimensions
- 7.48 x 3.54 x 2.17 inches
- Batteries
- 2 AA batteries required (included)
- Material
- ABS
- Handle Material
- Plastic
- Performance Description
- 2 colors LCD screen, True RMS
- Safety Level/Certification
- IEC-61010-1 CATⅢ 1000V, CAT IV 600V, double insulation
- Usage
- ▲ Voltage tester
▲ Large range measuring tool
▲ Frequency multimeter
▲ Diode electronic tester
▲ Capacitance digital meter
▲ Ohm meter - Upgraded Specification
-
● DC Voltage: 600mV/6V/60V/600V±(0.5%+3), 1000V ±(0.5%+3)
● AC Voltage: 600mV/6V/60V/600V/750V±(0.8%+5)
● DC Current: 600μA/6000μA/60mA/600mA/10A ±(1.2%+3)
● AC Current: 600μA/6000μA/60mA/600mA/10A ±(1.5%+3)
● Resistance: 600Ω/6KΩ/60KΩ/600KΩ/±(1.0%+3),6MΩ/60MΩ ±(1.5%+3)
● Capacitance: 10nf/100nf/1000nf/10uf/100uf/1000uf ±(4.0%+5), 10MF/100MF±(5.0%+5)
● Frequency/Duty:10Hz/100Hz/1000Hz/ 10kHz/100kHz/1000kHz ±(1.0%+3),10MHz/±(3.0%+3)
Kaiweets
HT118E Specification
DC Voltage: 200mV/2V/20V/200V/1000V ±(0.08%+5)
AC Voltage: 200mV/2V/20V/200V/750V ±(1.0%+25)
DC Current: 200μA/2000μA/20mA/200mA/10A ±(0.5%+5), 10A ±(1.0%+15)
AC Current: 200μA/2000μA/20mA/200mA/10A ±(1.0%+25), 10A ±(1.5%+25)
Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2M/20M/100M±(1.0%+15),20MΩ/100MΩ ±(3.0%+25)
Capacitance: 2nf/20nf/200nf/2uf/20uf/200uf/2mF/20mF ±(4.0%+50)
Frequency/Duty: 200Hz/2kHz/20kHz/ 200kHz/2MHz/10MHz ±(1.0%+30),10MHz/±(3.0%+30), Duty: 1-99% ±(3.0%+30)
Kaiweets
HT118A Digital Multimeter
An advanced multimeter designed to be used safely and accurately by electricians at workplaces or homeowners and DIYers who need more capabilities than the standard measuring tool.
Kaiweets
2.7-inch Display
1. Display turns to orange when voltage is over 80V
2. Bar graph
3. Low battery indicator
kaiweets

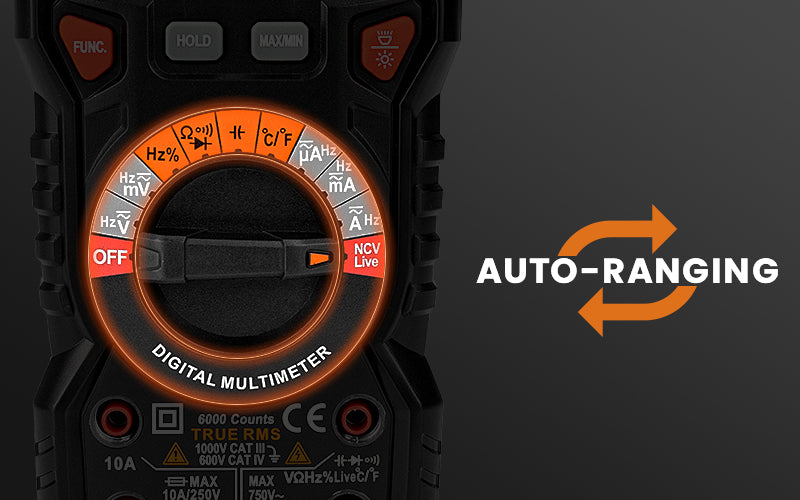

Auto-ranging & Accurate Measurement
It's extremely easy to use, offering AC/DC reading without needing to switch between nodes.
Measures capacitance, frequency, duty cycle, temperature, and test diodes.
kaiweets

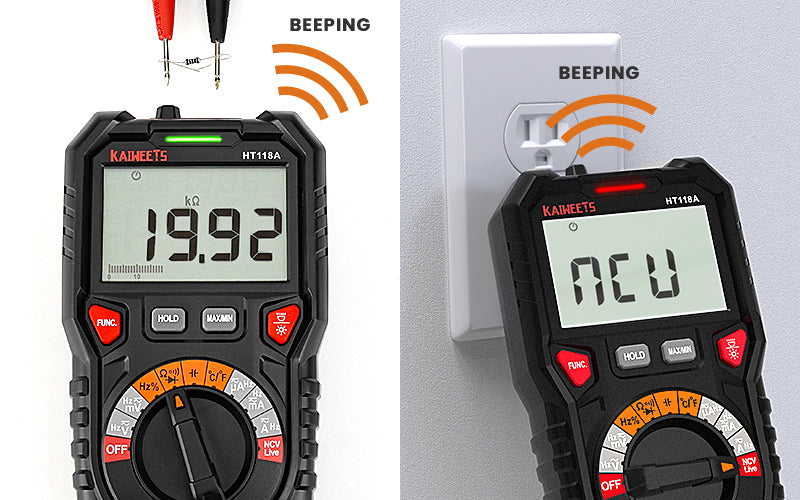

Non-contact Voltage Detection
Non-contact design for more safety. Just place the probe near outlets, sockets, terminals, etc. to test voltage presence（very sensitive NCV).
Easy live wire detection with visual and audial alarms.
Sensitive Continuity Test: Loud buzzing sound
Resistance < 30Ω, green light
The resistance between 30Ω to 60Ω, red light.
kaiweets
Temperature Measurement
ACCURACY RANGE
5.0% / 6°F -4°F~32°F
1.0% / 4°F 32°F~752°
2.0% 752°F~1832°F
kaiweets

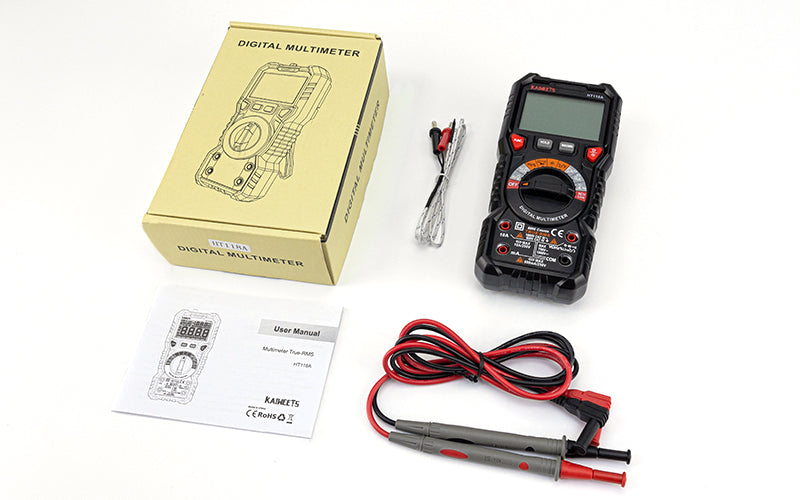

What Do You Get?
1 x Digital Multimeter
1 x Test Leads
2 x AAA Battery
1 x User Manual
